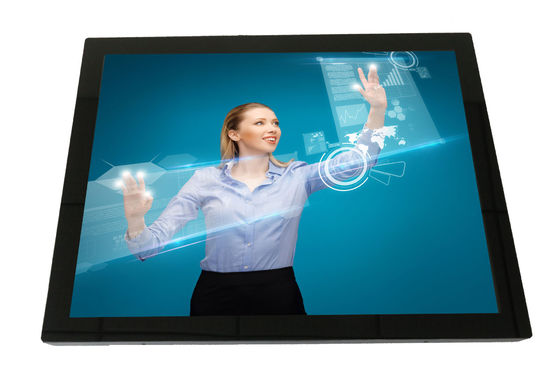

15" bezel free PCAP multi touchscreen AIO fanless Panel PC Celeron J1900, i3/i5/i7 vandal proof, G+G, IP65 front

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD15PPCT5KJ
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Steel Chassis Color Black Or Silver
Housing Type Side Mounting, VESA Mounting, Desktop Mount MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Operating Humidity 10%-90% (Non Condensing)
24/7/365 Use Supported
High Light

touch display pc

,

touch panel computer

Leave a Message
Product Description

15" bezel free PCAP multi touchscreen AIO fanless Panel PC Celeron J1900, i3/i5/i7 vandal proof, G+G, IP65 front



ITD Zero-Bezel PCAP touch panel PCs come with projected capacitive touch panel, edge to edge design without bezels that eliminates dust and debris build-up at the edge and corners of the display. The rugged steel chassis with robust aluminum frame and highly-durable glass front surface provide the durability needed for demanding pubic/industrial environments. The PCAP touch panel is combined with projected capacitive touch makes true flat surface with easy to clean and come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for public information, digital poster, digital signage, kiosk, home automation, building automation, access automation and custom HMI applications.



BENEFITES

  • Exceptional quality and highly engineered industrial/commercial panel computer
  • High Performance Processor, Graphics, Memory and Power
  • Edge to edge design with true flat surface, easy to clean without bezels
  • Ten independent touch points, plug and play
  • All steel construction designed for industrial or public environments
  • Easy-to-install embedded/panel mounting with clamps
  • Robust design with aluminum frame NEMA 4/ IP65 front panel
  • Long lasting product cycle for continuity thru all phases of project

Zero-Bezel PCAP Touch Panel PC



Model Name ITD15PPCG1K**
IP Rating IP65 Front Panel

PC Systems Options



ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® HD Graphics, Support 1080p Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel



Screen Diagonal (Inch/cm) 15”
Display Active Screen Size (mm) 304.128(H) ×228.096(V)
Aspect Ratio 4:3
Physical Resolution 1024×768
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 250nits
Contrast Ratio 700:1
View Angels 80/80/60/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime

Touch Panel



Touch Technology Projected Capacitive Touch
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi
Touch Life 50,000,000 Times/Click
Surface Hardness 7H
OS Support Windows, Linux, Android, Mac, Raspberry Pi

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power



Power Indicator Green LED
Power Input DC 12V
Power Consumption 20W

Order Information



15” Zero-Bezel Touch Panel PC with PCAP Touch, J1900 ITD15PPCT5KJ1

15” Zero-Bezel Touch Panel PC with Tempered Glass, J1900

15” Zero-Bezel Touch Panel PC with PCAP Touch, i3

ITD15PPCG1KJ1

ITD15PPCT5KI3

15” Zero-Bezel Touch Panel PC with Tempered Glass, i3

15” Zero-Bezel Touch Panel PC with PCAP Touch, i5

15” Zero-Bezel Touch Panel PC with Tempered Glass, i5

15” Zero-Bezel Touch Panel PC with PCAP Touch, i7

ITD15PPCG1KI3

ITD15PPCT5KI5

ITD15PPCG1KI5

ITD15PPCT5KI7

15” Zero-Bezel Touch Panel PC with Tempered Glass, i7 ITD15PPCG1KI7



15" bezel free PCAP multi touchscreen AIO fanless Panel PC Celeron J1900, i3/i5/i7 vandal proof, G+G, IP65 front 0

15" bezel free PCAP multi touchscreen AIO fanless Panel PC Celeron J1900, i3/i5/i7 vandal proof, G+G, IP65 front 1

APPLICATION



15" bezel free PCAP multi touchscreen AIO fanless Panel PC Celeron J1900, i3/i5/i7 vandal proof, G+G, IP65 front 2
