5.7"-84" LCD Panel Kits LCD Touch Screen Kit Dual LVDS Interface Output

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD-LCDKITS
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sizes Options 5.7''6.5''7''8''8.4''9.7''10.1''10.4''12.1''13.3''15''15.6''17''17.3''18.5''19''21.5''22''24''27''32''43''49''55''65''70''75''84'' MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Operating Humidity 10%-90% (Non Condensing)
24/7/365 Use Supported Input Options BNC, AV, DP RS232, S-Video, TV
High Light

industrial open frame monitor

,

open frame touch screen monitor

Leave a Message
Product Description

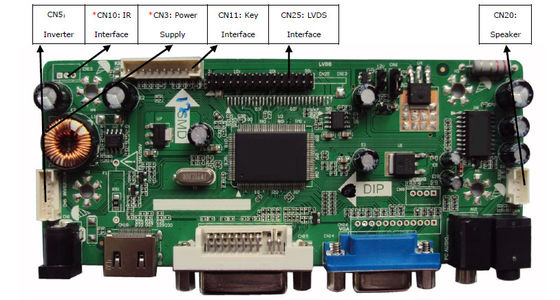

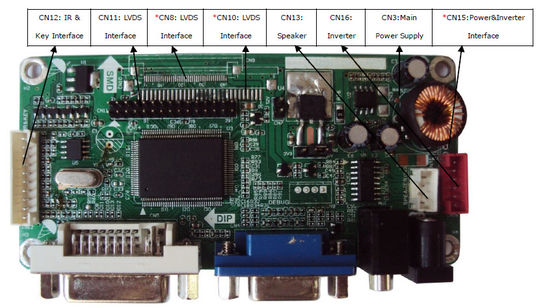

5.7"~84" LCD panel Kits VGA, DVI, HDMI inputs LVDS interface



If you are searching for a cheapest solution for kiosk, gaming, ATM, or other equipments, then we would like to recommend you to consider LCD kits solutions. It’s the same as monitor but without metal frame. For some countries, it should be easier for Customs clearance. The LCD kits include TFT panel, AD board, inverter or LED driver, OSD menu, power supply, LVDS cable or all other related cables.



FEATURES



. ●Dual LVDS Interface Output.

. ● On-Screen Display Control.

. ● Support Various Panel From VGA to WXGA.

. ● RGB Input Maximum Resolution 1920×1200 (WXGA) @ 75Hz.

●. Automatic Mode Detection.

. ● Automatic Input Source Detection.

. ● Auto Adjustment For Frequency, Phase, H/V Position, and White Balance.

. ● Build-in Stereo Audio Device.

. ● Flexible Firmware Design to Meet Any Custom Design Request.

● 6-key / 5-key OSD (used more in VGA/DVI) control, content includes Brightness, Contrast Ratio, Phase, Clock, Pictureposition, OSD Position, OSD Language, Color Temperature, Volume, Factory Reset, etc.

. ● DVI Input Maximum Resolution 1366×768 (WXGA) @ 60Hz.

. ● Operating Temperature : -20~ + 80℃

. ● Storage Temperature : -30 ~ + 80℃
