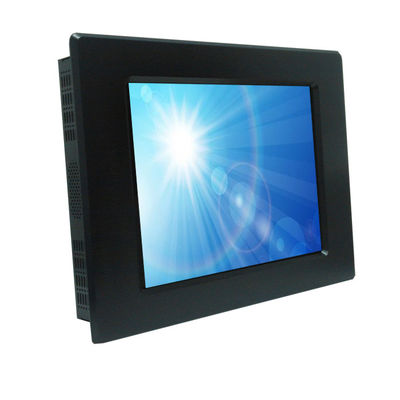

17" industrial monitor with panel mounted aluminum front bezel high brightness 1000 nits

Place of Origin China
Brand Name ITD/OEM
Certification CE,ROHS,FCC
Model Number ITD17PMT1HB02
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,woonden case,pallet
Payment Terms T/T,Western Union,Paypal
Supply Ability 10000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screen Diagonal 17" Display Active Screen Size 337.92 (H) ×270.34(V) Mm
Aspect Ratio 4:3 Physical Resolution 1280×1024
Brightness 1000 Cd/m² Operating Temperature Range -10~60°C (-20~70°C Optional)
Video Input VGA/DVI/HDMI Power Input Internal Power Supply, AC100V~240V
Touch Options Resistive, IR, PCAP, SAW View Angels 85/85/80/80
High Light

sun readable lcd display

,

daylight readable lcd monitor

Leave a Message
Product Description

17" industrial monitor with panel mounted aluminum front bezel high brightness 1000 nits





Specifications:





Panel Mount High Brightness LCD Monitor



Model Name ITD17PMN1HB02
IP Rating IP65 Front Panel

LCD Panel



Screen Diagonal (Inch/cm) 17”
Display Active Screen Size (mm) 337.92 (H) ×270.34(V)
Aspect Ratio 4:3
Physical Resolution 1280×1024
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 1000 cd/m²
Contrast Ratio 800:1
View Angels 85/85/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime

Touch Panel



Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Input / Output



Video Input 1 × VGA
1 × DVI-I
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB
Power Connector 1 × DC2.0

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power



Power Indicator Green LED
Power Input DC 12V
Power Consumption 33W

Order Information



17”1000nits Panel Mount LCD Monitor with Resistive Touch ITD17PMT1HB02
17”1000nits Panel Mount LCD Monitor with IR Touch ITD17PMT2HB02
17”1000nits Panel Mount LCD Monitor with SAW Touch ITD17PMT3HB02
17”1000nits Panel Mount LCD Monitor with PCAP Touch ITD17PMT5HB02
17”1000nits Panel Mount LCD Monitor with Tempered Glass ITD17PMG1HB02
17”1500nits Panel Mount LCD Monitor with Resistive Touch ITD17PMT1HB01
17”1500nits Panel Mount LCD Monitor with IR Touch ITD17PMT2HB01
17”1500nits Panel Mount LCD Monitor with SAW Touch ITD17PMT3HB01
17”1500nits Panel Mount LCD Monitor with PCAP Touch ITD17PMT5HB01
17”1500nits Panel Mount LCD Monitor with Tempered Glass ITD17PMG1HB01





ITD’s high bright sunlight readable LCD monitor displays with LED Enhanced displays have a dimming ratio of 200:1, meaning that the luminance can be adjusted from 100% down to 0.5%. Dimming capabilities are beneficial because lowering the backlight luminance will result in a lengthening of the backlight life. It also lowers the power consumption and the related thermal management issues.



FEATURES



-17" Very Bright Active Matrix Sunlight Readable TFT Display, 1000 nits (cd/m2)

-Optical Bonding for Better Readability in Sunlight Optional

-High-Luminance Solid-State LED-enhanced Backlighting

-Rugged Black Powder-Coated Steel Chassis

-A multitude of Video Inputs: VGA, DVI-I Pin, HDMI

-High Contrast Ratio & Definition, Outstanding Vivid Color & Image Quality







Product Display:





17" industrial monitor with panel mounted aluminum front bezel high brightness 1000 nits 0





17" industrial monitor with panel mounted aluminum front bezel high brightness 1000 nits 1







Application:



17" industrial monitor with panel mounted aluminum front bezel high brightness 1000 nits 2
