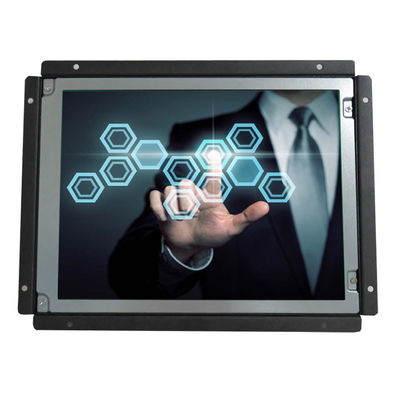

High Performance Open Frame LCD Monitor 10.4" 1920×1080 Resolution
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis | Color | Black Or Silver |
|---|---|---|---|
| Housing Type | Open Frame Mount, VESA Mounting | MTBF | 50000Hours |
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Operating Humidity | 10%-90% (Non Condensing) |
| 24/7/365 Use | Supported | Resolution | 800*600 |
| Brightness | 300nits | ||
| High Light | open frame lcd panel,open frame touch screen monitor |
||
Product Description
10.4" open frame LCD touch monitor with resistive touch,IR touch, PCAP touch optional
ITD industrial open frame LCD monitor displays are fully-integrated, commercially off-the-shelf units that combine high-performance touch technology in industrial-grade LCD flat panels, with sleek and flush mount open frame front surface industrial design. ITD industrial monitors provide reliability, durability, and expected long product life.
BENEFITES
- Long lasting product cycle-enclosure. Future generation panels phased-in without external changes
- Display Only, Resistive (4 or 5 wire), SAW, IR and Capacitive touch options
- Available in standard (4:3) and wide (16:9)
- High quality panel with 150° x 140° viewing angle. 170° x 170° IPS panel optional
- Mounting includes side mounting, rear-mount and VESA mount (front mount optional)
- VGA ,DVI and HDMI inputs with USB for touch and external AC/DC power.
|
Open Frame LCD Monitor
|
|
|
Model Name |
ITD10OFN1M1 |
|
IP Rating |
N/A |
|
LCD Panel
|
|
|
Screen Diagonal (Inch/cm) |
10.4” |
|
Display Active Screen Size (mm) |
211.2(H) ×158.4(V) |
|
Aspect Ratio |
4:3 |
|
Physical Resolution |
800×600 |
|
Maximum Resolution Supported |
1920×1080 |
|
Colors |
16.7M |
|
Brightness (cd/m²) |
300nits |
|
Contrast Ratio |
500:1 |
|
View Angels |
80/80/70/70 |
|
Backlight/Backlight Lifetime |
LED backlight with 50000 hours’lifetime |
|
Touch Panel
|
|
|
Touch Options |
Resistive, IR, SAW, PCAP |
|
Touch Drivers |
Windows, Linux, Android, Mac, Raspberry Pi |
|
Input / Output
|
|
|
Video Input |
1 × VGA |
|
1 × DVI-I |
|
|
1 × HDMI |
|
|
Audio |
1 × PC-Audio |
|
Touch Connector |
1 × USB |
|
Power Connector |
1 × DC2.0 |
|
Operation
|
|
|
Operating Temperature Range |
-10~60°C (-20~70°C Optional) |
|
Humidity Range (RH) |
10-90% |
|
24/7/365 Use |
Supported |
|
Power
|
|
|
Power Indicator |
Green LED |
|
Power Input |
DC 12V |
|
Power Consumption |
10W |
|
Order Information
|
|
|
10.4”Open Frame LCD Monitor with Resistive Touch |
ITD10OFT1M1 |
