High Resolution Capacitive Industrial Touch Screen Monitor 19'' IP65 Front Panel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis | Color | Black Or Silver |
|---|---|---|---|
| Housing Type | Open Frame Mount, VESA Mounting | MTBF | 50000Hours |
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Operating Humidity | 10%-90% (Non Condensing) |
| 24/7/365 Use | Supported | Resolution | 1280*1024 |
| Aspect Ratio | 4:3 | Brightness | 250nits |
| View Angels | 85/85/80/80 | ||
| High Light | industrial touch display,waterproof lcd monitor |
||
Product Description

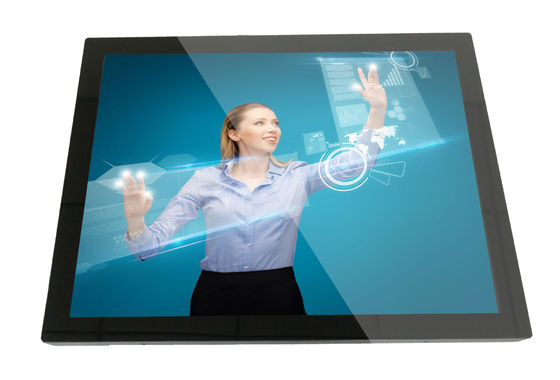

15" industrial zero-bezel PCAP multi touchscreen LCD monitor display with vandal proof, G+G, IP65 front, low power
ITD compact PCAP touch display is “designed for touch” and reliability built in which provide stable “drift-free” operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Long-lasting product availability can be expected as the design and tooling is controlled by ITD specifications.
BENEFITES
- Zero-bezel: Projected capacitive, 10 multi touch points, vandal proof with 4mm
- Viewing angle of 178°(h) x 178°(v) optional, for sharp colors and graphics in both portrait and landscape modes
- High definition LCD display offers ultimate HD interactivity, clarity and resolution
- PCAP with G+G structure offers pristine optical clarity and touch durability
- IP65 for front panel
- Side mounting brackets optional for rear mount

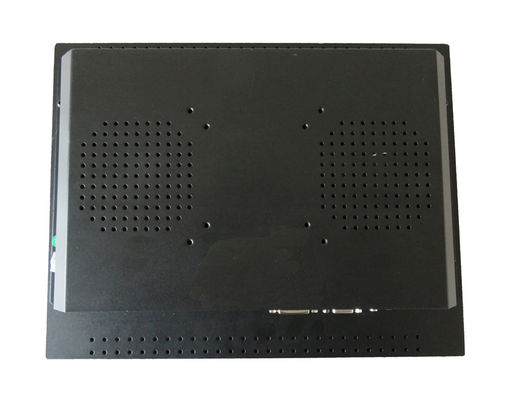

- VESA mounting, tabletop supported
|
Zero-Bezel PCAP Touchscreen Monitor
|
|
| Model Name | ITD19OFT5K1 |
| IP Rating | IP65 Front Panel |
|
LCD Panel
|
|
| Screen Diagonal (Inch/cm) | 19” |
| Display Active Screen Size (mm) | 376.32(H) ×301.06(V) |
| Aspect Ratio | 4:3 |
| Physical Resolution | 1280×1024 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 250nits |
| Contrast Ratio | 1000:1 |
| View Angels | 85/85/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime |
|
Touch Panel
|
|
| Touch Technology | Projected Capacitive Touch |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
| Touch Life | 50,000,000times/click |
| Surface Hardness | 7H |
|
Input / Output
|
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
|
Operation
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 20W |
|
Optional
|
|
| Side Mounting Brackets, Desktop Stand, VESA Mounting Brackets, Webcam | |
|
Order Information
|
|
| 19”Non Touch Monitor with Tempered Glass | ITD19OFG1K1 |
APPLICATION
