full outdoor waterproof lcd TV monitor digital poster 85" all weatherproof with bulit in air conditioner -45~55℃

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD85CMAIPW****
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brightness 2000cd/m2 Colors 16.7 M
Backlight Lifetime LED Backlight With 50000Hours'Lifetime Touch Options IR, PCAP, Touch Foil
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi Operating Temperature Range -20~55°C(Fan-Cooling); -40~55°C (Air Condition Built-in)
OS Optional ARM Android Based RK3288(RK3368 Optional)/X86 Windows Based Display Active Screen 1904(H)×1096(V) Mm
Aspect Ratio 16:9
High Light

outdoor digital display

,

all in one computer monitor

Leave a Message
Product Description

full outdoor waterproof lcd TV monitor digital poster 85" all weatherproof with bulit in air conditioner -45~55℃



ITD outdoor all weatherproof wall-mounted digital signage display boasts a range of unique features perfect for outdoor digital signage with high brightness, protective glass, IP65 verified, tamperproof, commercial grade, temperature control and choice of media players including single SD card and USB port plug and play media player, ARM based player and x86 based player integrated. The ITD outdoor digital signage displays are fitted with commercial grade panels providing them with a wide viewing angle, improved color, contrast and brightness as well as the ability to be used 24 hours a day. With an eco-friendly power timer you can be assured of their green credentials and low operating costs. The ITD outdoor display also has an ambient light sensor that will automatically alter the screens brightness based on the displays surrounding light levels leaving the screen with the best clarity whilst also conserving energy. Anti-reflective/ anti-glare tempered glass also comes as standard. ITD outdoor digital signage can display message in heat, cold, rain, snow and dust empowering to always present a dynamic and vibrant message.



BENEFITES

  • Exceptional quality and commercial-grade outdoor reliability and performance
  • Eco-friendly, Energy-Efficient LED Backlight Technology
  • Designed with robust, corrosion protected casing to protect against the elements and the public
  • IP65 rated protecting from any wet weather conditions and waterproof over-molded connectors
  • High brightness from 1500nits to 2500nits allowing effortless legibility in direct sunlight
  • AR/AG Tempered glass fitted on front for vandal proof and optimum clarity
  • Ultra wide operation temperature range -25℃~55℃ or -45℃~55℃ supported
  • Equipped with internal air-conditioning or fan-cooling system ensuring a long and reliable lifespan
  • Landscape and Portrait mode wall-mounted flexibility
  • Pre-installed CMS management system for network version
  • Long lasting product cycle for continuity thru all phases of project


Specifications:



Outdoor Wall-Mounted Digital Signage LCD Display



Model Name ITD85CMAIPW****
IP Rating IP65

Single Media Player/Monitor Option



1 ×USB 2.0, 1×CF Card Slot, 1×SD Card Slot

Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV

Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE

Picture Formats Supported: JPEG, BMP, GIF, PNG

File Formats Supported: FAT, FAT32, NTFS

1 ×HDMI Input

1×TV Port(Optional)

1×USB Port(Touch Version),

PC Systems Options



ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® NM10 Express Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel



Screen Diagonal (Inch) 85”
Display Active Screen Size (cm) 1904(H)×1096(V)
Aspect Ratio 16:9
Physical Resolution 3840×2160
Maximum Resolution Supported 3840×2160
Colors 16.7M
Brightness (cd/m²) 2000 cd/m²
Contrast Ratio 1600:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel Available for Network Version



Touch Options IR, PCAP, Touch Foil
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation



Operating Temperature Range -20~55°C(Fan-Cooling); -40~55°C (Air Condition Built-in)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power /Speakers



Power Indicator Green LED
Power Input Internal Power Supply, AC 100V~240V

Power Consumption

Speakers

600W

2×5W

Order Information



85”Outdoor Wall-Mounted Single DS with Aircon, AG Glass ITD85CMAIPWG3A1
85”Outdoor Wall-Mounted Single DS with Fan-Cooling, AG Glass ITD85CMFIPWG3A1
85”Outdoor Wall-Mounted Android DS with Aircon, AG Glass ITD85CMAIPWG3E1
85”Outdoor Wall-Mounted Android DS with Fan-Cooling, AG Glass ITD85CMFIPWG3E1
85”Outdoor Wall-Mounted Windows J1900 DS with Aircon, AG Glass ITD85CMAIPWG3J1
85”Outdoor Wall-Mounted Windows J1900 DS with Fan-Cooling, AG Glass ITD85CMFIPWG3J1
85”Outdoor Wall-Mounted Windows i3 DS with Aircon, AG Glass ITD85CMAIPWG3I3
85”Outdoor Wall-Mounted Windows i3 DS with Fan-Cooling, AG Glass ITD85CMFIPWG3I3
85”Outdoor Wall-Mounted Monitor DS with HDMI, Aircon, Touch Foil ITD85CMAIPWT701
85”Outdoor Wall-Mounted Monitor DS with HDMI, Fan-Cooling, Touch Foil ITD85CMFIPWT701
85”Outdoor Wall-Mounted Android DS with Aircon, Touch Foil ITD85CMAIPWT7E1
85”Outdoor Wall-Mounted Android DS with Fan-Cooling, Touch Foil ITD85CMFIPWT7E1
85”Outdoor Wall-Mounted Windows J1900 DS with Aircon, Touch Foil ITD85CMAIPWT7J1
85”Outdoor Wall-Mounted Windows J1900 DS with Fan-Cooling, Touch Foil ITD85CMFIPWT7J1
85”Outdoor Wall-Mounted Windows i3 DS with Aircon, Touch Foil ITD85CMAIPWT7I3
85”Outdoor Wall-Mounted Windows i3 DS with Fan-Cooling, Touch Foil ITD85CMFIPWT7I3

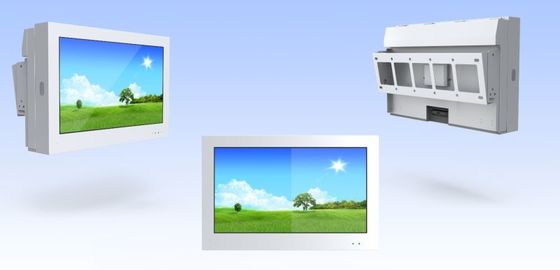

Product Display:



full outdoor waterproof lcd TV monitor digital poster 85" all weatherproof with bulit in air conditioner -45~55℃ 0full outdoor waterproof lcd TV monitor digital poster 85" all weatherproof with bulit in air conditioner -45~55℃ 1

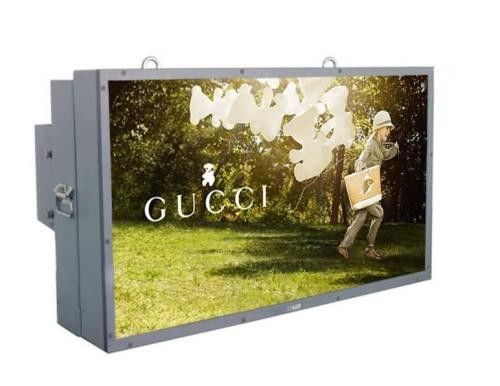

APPLICATION





full outdoor waterproof lcd TV monitor digital poster 85" all weatherproof with bulit in air conditioner -45~55℃ 2full outdoor waterproof lcd TV monitor digital poster 85" all weatherproof with bulit in air conditioner -45~55℃ 3
