Android Touch Panel PC Zero - Bezel True Flat 15.6" NFC/RFID Reader For Smart Access Control

  • Android Touch Panel PC Zero - Bezel True Flat 15.6" NFC/RFID Reader For Smart Access Control
  • Android Touch Panel PC Zero - Bezel True Flat 15.6" NFC/RFID Reader For Smart Access Control
  • Android Touch Panel PC Zero - Bezel True Flat 15.6" NFC/RFID Reader For Smart Access Control
Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD156PPCT5KE1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Name ITD156PPCT5KE1 IP Rating IP65 Front Panel
Resolution Full HD 1920X1080 CPU ARM Quad-Core RK3368 Cortex-A53
Flash 8G: 16G/32G/64G/128G Optional Input/output 1 × DC 12V 2.0; 3G/4G Optional
High Light

touch panel computer

,

touch monitor pc
Leave a Message
Product Description

zero-bezel true flat 15.6" Android Touch Panel PC with NFC/RFID Reader for Smart Access Control

ITD 15.6” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance ARM Quad-Core Cortex-A53 Processor RK3368 1.5GHz, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, combined with a NFC or RFID reader with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD 15.6” multi-touch HMI comfort panel PC specifically suited for various smart access control systems.

Specifications:





Panel Cell Type/Glass Surface TFT
Size 15.6”
Aspect Ratio 16:9
Active Area 344.16(W) × 193.59(H)mm
Pixel Pitch 0.17925 × 0.17925mm
Native Resolution 1920 x 1080
Colors 16.7M
Brightness 300cd/㎡
Contrast 500:1
Response Time 14ms
Viewing Angle(Typical) 160/160
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Quad-Core RK3368 Cortex-A53,Main CPU frequency:1.5GHz;

GPU: PowerVR G6110 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 5.1/6.0

Bluetooth: Optional

Video Decoder: 4K VP9/H265/H264 video decoders, up to 60fps

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output

1 × HDMI; 2 × USB Max. 6× USB; 1 × USB OTG

4 × COM; 1 × TF Card Support 8~128GB;

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

1 × DC 12V 2.0; 3G/4G Optional
Operating Temperature -10~60℃
Storage Temperature -20~70℃
Operating Humidity 10%~90% (Non Condensing)
Order Information 15.6” PCAP Touch Android PC with NFC Reader/ITD156PPCT5KE1-NFC
15.6” PCAP Touch Android PC with RFID Reader/ITD156PPCT5KE1-RFID
15.6” Non Touch Android PC with NFC Reader/ITD156PPCG1KE1-NFC
15.6” Non Touch Android PC with RFID Reader/ITD156PPCG1KE1-RFID



Product Display:

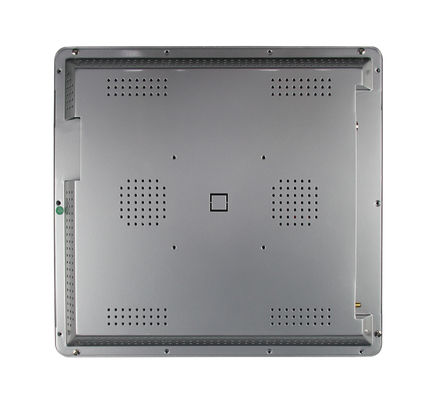

Android Touch Panel PC Zero - Bezel True Flat 15.6" NFC/RFID Reader For Smart Access Control 0
 Android Touch Panel PC Zero - Bezel True Flat 15.6" NFC/RFID Reader For Smart Access Control 1

Factory:
 Android Touch Panel PC Zero - Bezel True Flat 15.6" NFC/RFID Reader For Smart Access Control 2
