IP65 Embedded Touch Screen Rugged Panel Computer For Kitchen Easy To Clean
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD15PPCT5XJ2 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 7-12 work days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel I3 7100U | Memory | DRAM 4GB, Max. 16G |
|---|---|---|---|
| Storage | 120G | OS | Windows XP/7/10, Linux |
| I/O | 4 X USB,1 X COM, 1 X HDMI,1 X VGA, 1 X DC RJ45 | Housing | 10mm Aluminum Front Bezel, Steel Chassis |
| Operating Temperature | -20~70℃ | 3G/4G | Optional |
| MTBF | 50000H | Power | 1 X DC 12V, |
| GPS, PoE | Optional | Aging Test | 48H |
| GPIO | Optional | ||
| High Light | touch panel computer,touch monitor pc |
||
Product Description

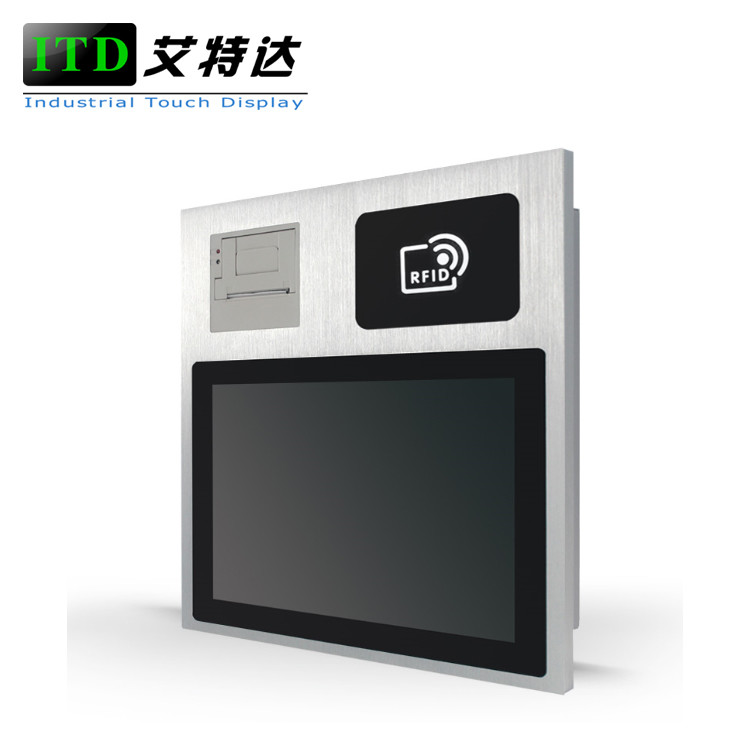

Rugged IP65 panel PC embedded touch screen computer with smart card reader and printer for kitchen
The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0 GHz with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.
FEATURES
▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ 10 independent touch points
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel (3mm/10mm optional) and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
OPTIONAL
• SDD 64GB,128GB up to 521GB
• HDD 500GB up to 1TB
• High brightness, sunlight readable
• Resistive touch screen, tempered glass
• Customization for other inches
• Camera, speakers, RFID reader, GPIO, LPT, M12 power connector
• Black, silver, desktop stand
| Model | ITD08PPCT5XJ1 | ITD101PPCT5XJ1 | ITD10PPCT5XJ1 | ITD12PPCT5XJ1 |
| Size | 8”(4:3) | 10.1”(16:9) | 10.4” (4:3) | 12.1” (4:3) |
| Active Area | 162.0(W) x 121.5(H) | 227.0(W) x 131.0(H) | 211.2(W) x 158.4(H) | 246.0(H) x 184.5(V) |
| Contrast Ratio | 500:1 | 500:1 | 500:1 | 500:1 |
| Resolution | 800 x 600 | 1366 x 768 | 800 x 600 or 1024 x 768 | 800 x 600 or 1024 x 768 |
| Brightness | 250nits | 300nits | 300nits | 300nits |
| Viewing Angles | 70/70/50/70 | 80/80/80/80 | 70/70/60/70 | 70/70/60/60 |
| Backlight | LED | LED | LED | LED |
| Model | ITD12PPCT5XJ1W | ITD15PPCT5XJ1 | ITD156PPCT5XJ1 | ITD17PPCT5XJ1 |
| Size | 12.1” (16:10) | 15” (4:3) | 15.6” (16:9) | 17” (5:4) |
| Active Area | 261.12(H) x 163.2(V) | 304.12(H)x 228.09(V) | 344.23(H)x 193.53(V) | 337.92(H) x 270.33(V) |
| Contrast Ratio | 700:1 | 700:1 | 500:1 | 1000:1 |
| Resolution | 1280 x 800 | 1024 x 768 | 1366 x 768 or 1920 x 1080 | 1280 x 1024 |
| Brightness | 300nits | 250nits | 250nits | 250nits |
| Viewing Angles | 80/80/80/60 | 80/80/60/70 | 80/80/80/80 | 85/85/80/80 |
| Backlight | LED | LED | LED | LED |
| Model | ITD173PPCT5XJ1 | ITD19PPCT5XJ1 | ITD19PPCT5XJ1W | ITD21PPCT5XJ1 |
| Size | 17.3”(16:9) | 19” (5:4) | 19” (16:10) | 21.5” (16:9) |
| Active Area | 381.88(H) x 214.81(V) | 376.32(H) x 301.06(V) | 408.32(H) x 255.2(V) | 476.64(H)x248.25(V) |
| Contrast Ratio | 700:1 | 1000:1 | 1000:1 | 1000:1 |
| Resolution | 1920 x 1080 | 1280 x 1024 | 1440 x 900 | 1920 x 1080 |
| Brightness | 300nits | 250nits | 250nits | 250nits |
| Viewing Angles | 80/80/80/80 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 |
| Backlight | LED | LED | LED | LED |
SPECIFICATION
| System | CPU | Intel® Bay Trail Celeron Quad Core J1900 2.0GHz Processor |
| BIOS | Award BIOS 4/8Mbit SPI Flash ROM | |
| Chipset | Intel® Bay Trail SOC CPU Integrated | |
| Memory | 1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | 32GB SSD or 320GB HDD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| I/O | Serial Ports | 1xCOM(10.1”,10.4”); 2xCOM(Default to RS232, RS422/485 optional) |
| USB Ports | 2XUSB 2.0(10.1”,10.4”); 2XUSB2.0, 2XUSB3.0 | |
| VGA Port | 1 x VGA | |
| HDMI Port | 1 x HDMI Port | |
| Power Port | 1 x 12V DC Jack input(ATX is optional) | |
| Audio Card | Realtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN | |
| WIFI | Built-in, 802.11a/b/g/h (optional) | |
| Touch Screen | Type | Projected Capacitive Touch Screen with 10 independent touch points (Default to USB Port, RS232 Port Optional) |
| Response Time | ≤5ms | |
| Transparency | ≥85% | |
| Lifetime | ≥50,000,000 times/click | |
| OS Support | Windows CE/XP/7/8/10, Linux, Mac, Android | |
| Operating Temperature | -10~60℃ (-20~70℃ Optional) | |
| Storage Temperature | -20~70℃ | |
| Operation Humidity | 10%~90%(No Condensation) | |
| Mounting Method | VESA, embedded/panel mounting with clamps, desktop stand | |
| Order Information | Flat Bezel PCAP Panel Mounted Panel PC/ITD**PPCT5XJ1 | |
| Flat Bezel Resistive Touch Panel Mounted Panel PC/ITD**PPCT1XJ1 | ||
| Flat Bezel Tempered Glass Panel Mounted Panel PC/ITD**PPCG1XJ1 | ||

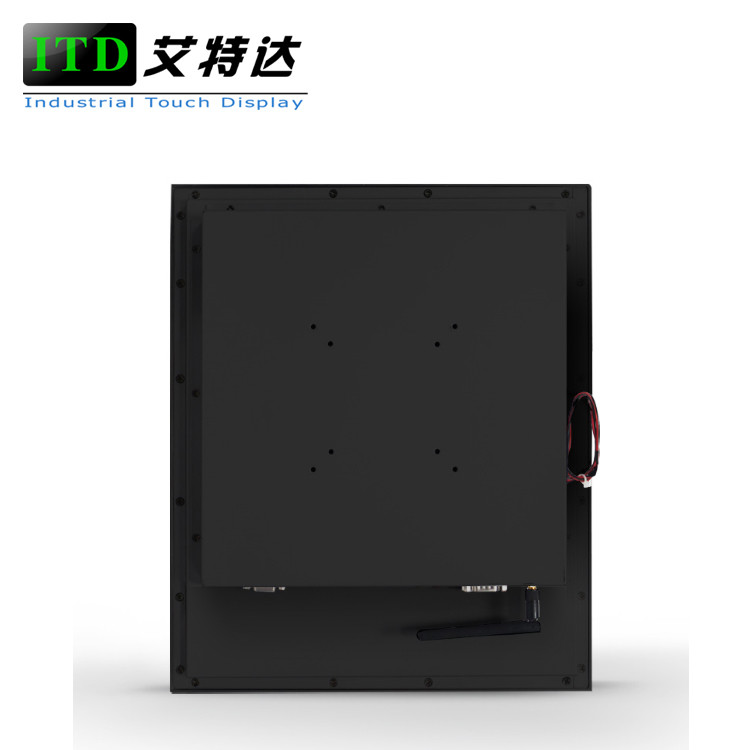

Product Display:
