10.1 Inch Desktop All In One Industrial Panel Pc Touch Screen Android 6.0/7.1 For Self Service Photo Printing

Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD0101PPCT5XE2
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 7-12 work days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU Android RK3288, RK3188, RK3368/RK3399 Memory 2G
Storage 8G OS Android 5.1/6.0/7.1
I/O 2 X USB,1 X COM, 1 X HDMI,1 X RJ45 24/7/365 Working Supported Yes
Operating Temperature -10~60℃ -20~70℃ Optional MTBF 50000H
Power 1 X DC 12V Failure Rate 0.6%
Aging Test 48H Certificates CE, FCC, RoHS
Color Black Or Silver Housing Aluminum Housing
High Light

touch panel computer

,

touch monitor pc

Leave a Message
Product Description

10.1 inch desktop all in one multi touch screen panel PC Android 6.0/7.1 for self-service photo printing



ITD New Series multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines Android RK3328 media player, and Projected Capacitive Touch (PCT or PCAP)Technology in TFT LCD flat panels, with sleek and flat front surface commercial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.



PARAMETERS

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 10.1”/16:9
Active Area/ Pixel Pitch 222.52(W) x 125.11(H)mm /0.1629 × 0.1629mm
Native Resolution/ Colors 1366x 768/ 16.7M
Brightness/ Contrast 300cd/㎡/800:1
Response Time 25ms
Viewing Angle(Typical) 85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Quad Core RK3288,Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 5.1/6.0; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

Input / Output

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG; 4 × COM;

1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90% (Non Condensing)
Order Information 10.1”Zero-Bezel Android Panel PC with PCAP Touch/ITD101PPCT5KXE31
10.1”Zero-Bezel Android Panel PC with Resistive Touch/ITD101PPCT1KXE31
10.1”Zero-Bezel Android Panel PC with Tempered Glass/ITD101PPCG1XE31



FEATURES

• Centralized server controls content distribution;

• Combined hardware and software solution for fast, reliable delivery of digital signage content and continuous operation;

• Easy WIFI network system installation without the need for extra IT, firewall or security configurations;

• Simple content scheduling and updating for each display;

• Restart and update digital signage players remotely;

• Create and update separate schedules for each display, al owing for targeted ads at each terminal or different locations;

• Deliver rich media including: Multiple video and audio formats, RSS feeds and image slide shows;

• Transfer schedules and contents to one or more displays;

• Control, monitor and design screen layouts remotely by the admin software;

• Support Multi-zone terminal display and flexible screen layout;

• Local review of multi-zone display layout once the content is stored in the server PC;

• Manage daily power on/off time for any display or group of displays;

• Content plays automatically upon set up of schedule;

• Display live news, weather, traffic reports, emergency announcements and many other notices;

• Remotely report system utilization and memory usage;

• System automatically notifies administrator of any malfunction;

• Daily, monthly display content recording;

• Possible to integrate with the any existing management system.

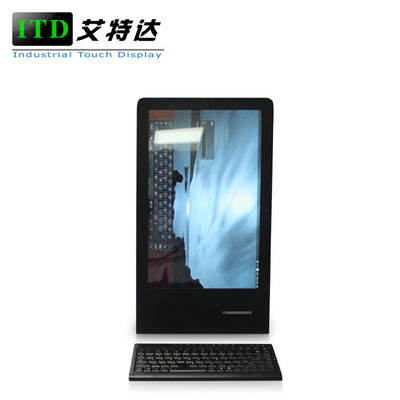

Product Display:





10.1 Inch Desktop All In One Industrial Panel Pc Touch Screen Android 6.0/7.1 For Self Service Photo Printing 010.1 Inch Desktop All In One Industrial Panel Pc Touch Screen Android 6.0/7.1 For Self Service Photo Printing 110.1 Inch Desktop All In One Industrial Panel Pc Touch Screen Android 6.0/7.1 For Self Service Photo Printing 210.1 Inch Desktop All In One Industrial Panel Pc Touch Screen Android 6.0/7.1 For Self Service Photo Printing 3
