16.3'' Digital Signage Poster Standalone Android Stretched Bar Shelf Lcd Video Displayer

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD16SDN101
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 3-7 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Widescreen Yes Active Area 410(H) X 61(V) Mm
Resolution 1920 X 203 Brightness 500 Nits
Viewing Angle(Typical) 89/89/89/89 Pixel Pitch 0.300x0.300mm
Size 16.3 Inch
High Light

digital signage screens

,

digital advertising screens

Leave a Message
Product Description

16.3 inch digital signage standalone Android Stretched bar type shelf lcd video displayer



Shelf-level digital media LCD Display provides a significant opportunity for point of purchase conversion by engaging with the consumer via animated content. Betvis has a range of shelf edge screens specifically developed for the retail shelf to help customer to create different brand.



OPTIONAL

•ARM based PC built-in

•Single media player built-in

•Custom resized cut panel

•Flexible structure design like open frame, custom design

•AG/AR tempered glass

•Black or White





Specifications:



LCD Panel
Cell Type/Glass Surface TFT
Size 16.3”
Active Area 410(H) x 61(V)
Pixel Pitch 0.300x0.300mm
Native Resolution 1920 x 203
Colors 16.7M
Brightness 500nits
Contrast 1000:1
Response Time 8ms
Field Frequency 60Hz
Viewing Angle(Typical) 89/89/89/89
Light Source LED backlight with 50000hours’lifetime
Configuration Options
Stretched LCD Monitor Stretched LCD Single Media Player Stretched LCD Android Media Player
1 x VGA input 1 x SD Card Slot 1 x WIFI IEEE802.11B/g/n
1 x DVI input 1 x HDMI input 2 x USB Ports
1 x HDMI input 1 x USB Port 1 x SD Card Slot (Optional)

Video Formats Supported: RMVB,FLV, MPEG1/2/4, AVI, DIVX, XDIV, WMV9, H.264, VC-1, M

V, MKV, MP4, TS, M2T, VOB

Video Formats Supported: RMVB,FLV, MPEG1/2/4, AVI, DIVX, XDIV, WMV9, H.264, VC-1, MOV, MKV, MP4, TS, M2T, VOB
Photos Format Supported: BMP/PNG/GIF/JPEG Photos Format Supported: BMP/PNG/GIF/JPEG

Audio Formats Supported: MP3, W

A, WAV, EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC

Audio Formats Supported: MP3, WMA, WAV, EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC




Basic Parameters




Convenient Features Plug & Play
Power Source External Power Supply with Universal/Auto-Sensing, DC 12V
Power Consumption Operation/Power Saving 18W
Operating Temperature -10℃-55℃ (-20℃-70℃ optional)
Storage Temperature -20℃-70℃
Relatively Operating Humidity 10% - 90% (non condensing)
Relatively Storage Humidity 10% - 90%
Order Information 16.3” Stretched LCD Monitor/ITD163SDN101
16.3” Stretched LCD Single Media Player/ITD163SDN1A1
16.3” Stretched LCD Android Player/ITD163SDN1E1
16.3” Stretched LCD Monitor with Tempered Glass/ITD163SDG101
16.3” Stretched LCD Single Media Player with Tempered Glass /ITD163SDG1A1
16.3” Stretched LCD Android Player with Tempered Glass /ITD163SDG1E1

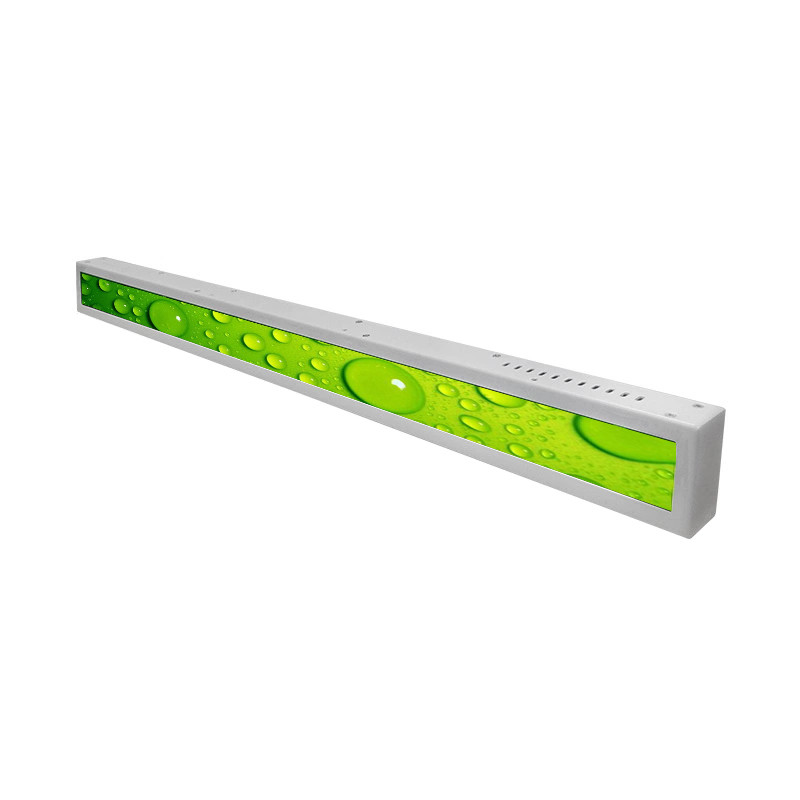

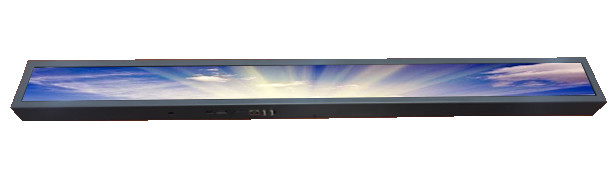

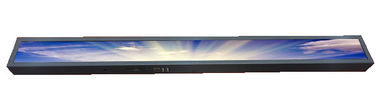

Product Display





16.3'' Digital Signage Poster Standalone Android Stretched Bar Shelf Lcd Video Displayer 0















16.3'' Digital Signage Poster Standalone Android Stretched Bar Shelf Lcd Video Displayer 1













16.3'' Digital Signage Poster Standalone Android Stretched Bar Shelf Lcd Video Displayer 2















16.3'' Digital Signage Poster Standalone Android Stretched Bar Shelf Lcd Video Displayer 3
