11.6" Pcap Industrie PC Touchscreen Ip65 X86 Based Anti - Vibration 400 Nits

  • 11.6" Pcap Industrie PC Touchscreen Ip65 X86 Based Anti - Vibration 400 Nits
  • 11.6" Pcap Industrie PC Touchscreen Ip65 X86 Based Anti - Vibration 400 Nits
  • 11.6" Pcap Industrie PC Touchscreen Ip65 X86 Based Anti - Vibration 400 Nits
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD11PPCT5XI*A
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Touch Panel Projected Capacitive Touch Panel With 10 Multi Touch Points Active Area 256.125(H) X 144(V)mm
Native Resolution 1366 X 768 Brightness 400 Nits
Viewing Angle 85/85/85/85 CPU Intel Celeron/i3/i5/i7
Power DC 8-36V Operation 30W
Operating Temperature -10~60℃
High Light

touch panel computer

,

touch monitor pc
Leave a Message
Product Description

11.6" pcap touch screen industrial pc panel mounted IP65 front X86 based Anti-Vibration Anti-Shock



SPECIFICATIONS

System CPU Intel® Core i3/i5/i7 Processor
BIOS AMI
Chipset Intel® SoC Integrated
Memory 2 x DDR4 SO-DIMM slots up to 16GB 2133MHz
Storage 64G SSD up to 512GB
Graphic Chipset Intel® HD Graphics
Input / Output Serial Ports 1 x COM (RS422 optional)
USB Ports 4 X USB
VGA Port 1 x VGA
HDMI Port 1 x HDMI Port
Audio Card Realtek ALG662 Line-Out/MIC IN
LAN 2 x 10/100/1000Mbps Ethernet
WIFI Built-in, 802.11a/b/g/h (optional)
Panel Cell Type/Glass Surface TFT LCD
Aspect Ratio/Size 11.6”
Active Area/Pixel Pitch 256.125(H) x 144(V)/ 0.1875mm
Native Resolution/Colors 1366x768/262K
Brightness/Contrast 400nits/800:1
Response Time 25ms
Viewing Angle(Typical) 85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime
Touch Screen Type Projected Capacitive Touch Screen
Response Time ≤5ms
Power Input Voltage DC 8-36V
Operation/Power Saving 30W
Environment Considerations Operating Temperature -10~60℃
Relative Humidity 30%~90% (non condensing)
Anti-Vibration 5Hz-500Hz / 1Grms/3 Axis
Anti-Shock 15G, 15ms duration
Anti-Shock 15G, 15ms duration
Order Information 11.6” Panel PC with PCAP touch Intel i3/ ITD11PPCT5XI3A
11.6” Panel PC with PCAP touch Intel i3/ ITD11PPCG1XI3A
11.6” Panel PC with PCAP touch Intel i5/ ITD11PPCT5XI5A
11.6” Panel PC with PCAP touch Intel i5/ ITD11PPCG1XI5A
11.6” Panel PC with PCAP touch Intel i7/ ITD11PPCT5XI7A
11.6” Panel PC with PCAP touch Intel i7/ ITD11PPCG1XI7A

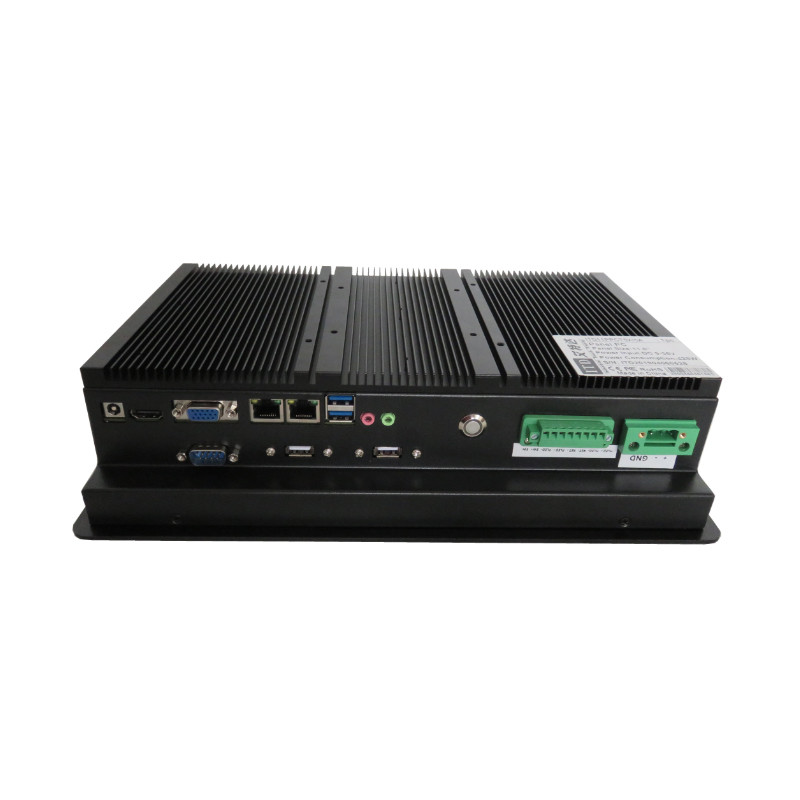

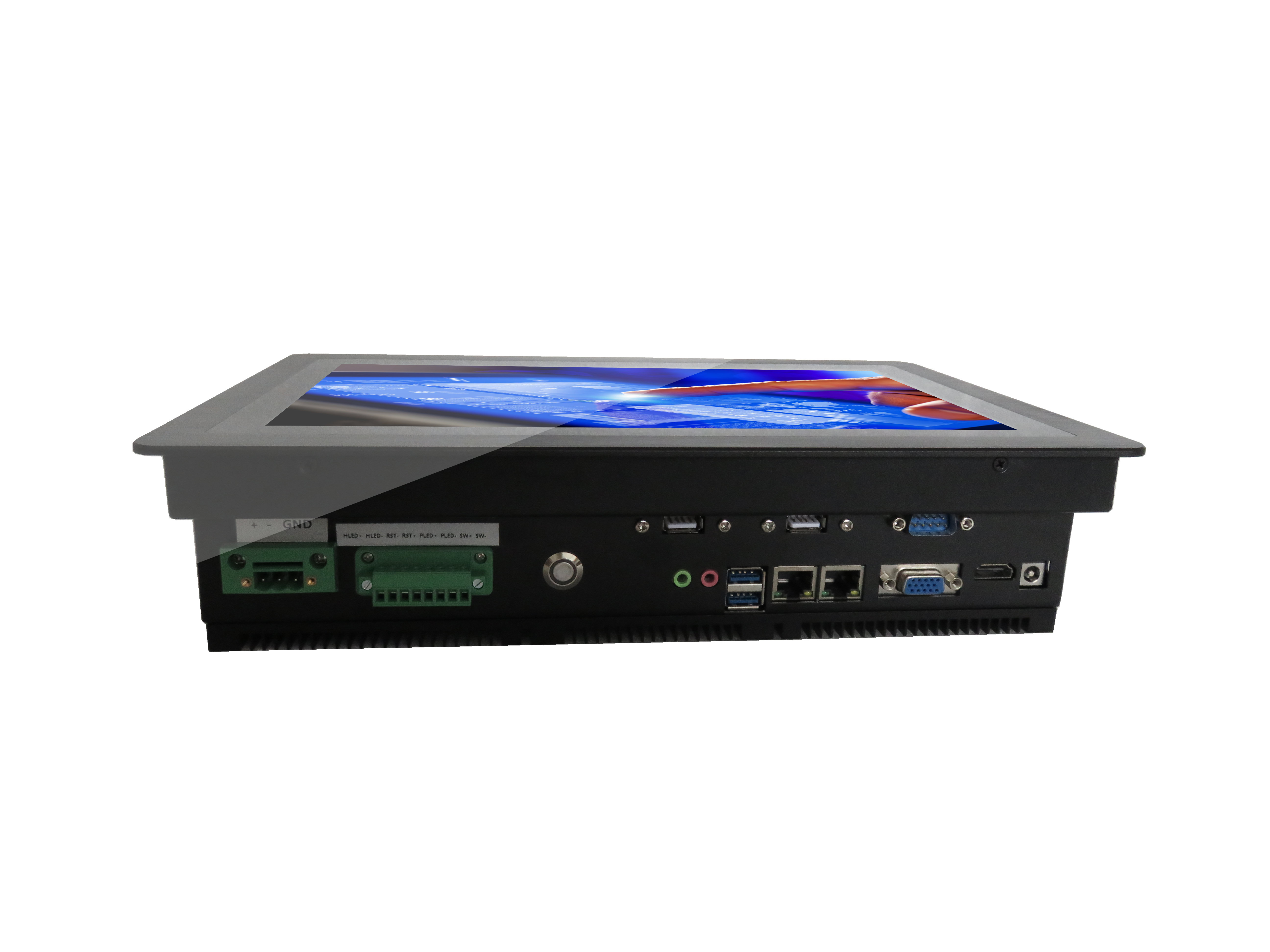

Product image:







11.6 industrial panel PC













11.6 panel mount industrial touch PC
multi touch industrial panel PC

pcap industrial panel PC
