11.6" Touch Monitor PC Aluminum Alloy Intel i5 PCAP Flat Bezel Panel Mount

Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD11PPCT5XI5A
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 15-20 work days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU Intel® Core™ Processor I5-7200U Size 11.6"
Active Area 256.125(H) X 144(V)mm Native Resolution 1366 X 768
Brightness 400cd/㎡ Viewing Angle 85/85/85/85
Input Voltage 9-36V
High Light

touch panel computer

,

touch monitor pc

Leave a Message
Product Description

11.6" marine display aluminum alloy Intel i5 PCAP Flat Bezel panel mount touch screen PC



Specs:



Panel Cell Type/Glass Surface TFT LCD
Size 11.6”
Aspect Ratio 16:9
Active Area 256.125(H) x 144(V)mm
Pixel Pitch 0.1875 x 0.1875mm
Native Resolution 1366 x 768
Colors 262K
Brightness 400cd/㎡
Contrast 800:1
Response Time 25ms
Viewing Angle(Typical) 85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime



SPECIFICATION

System CPU Intel® Core Quad Core i5-7200U 2.5GHz Fanless
BIOS AMI
Chipset Intel H110
Memory 2 x SO-DIMM, DDR4 2133/2400MHz Memory, 8GB, Max.32GB
Graphic Chipset Intel HD Graphics 620
Storage 2 x SATA3.0 1 x mSATA (SATA SSD)
LAN 2 x 10/100/1000Mbps Ethernet
Input / Output Serial Ports 1 x COM
USB Ports 4 X USB
VGA Port 1 x VGA
HDMI Port 1x HDMI Port
Audio Card

with Realtek ALC662

Line-Out /MIC IN

Power Input Voltage DC 9-36V
Operation/Power Saving 30W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90% (Non Condensing)
Anti-Vibration 5Hz-500Hz / 1Grms/3 Axis
Anti-Shock 15G, 15ms Duration



Image:

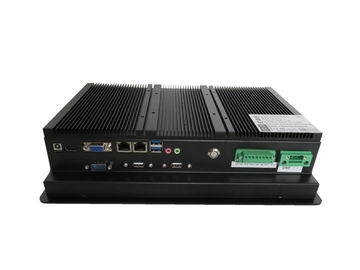

Marine panel PC



IP65 front panel mount pc

FEATURES



▪ Freescale ARM Cortex-A9 i.MX 6DualLite processor with Android 5.1 OS

▪ LTE/HSPA+, Wi-Fi, Bluetooth, and GPS connectivity

▪ Energy-efficient and fan-less HMI Systems

▪ Robust design with aluminum bezel NEMA 4/ IP65 front panel

▪ CAN bus interface with raw CAN, J1939, and OBD-II/ISO 15765 support






11.6" Touch Monitor PC Aluminum Alloy Intel i5 PCAP Flat Bezel Panel Mount 2
