Super Slim Indoor Digital Signage Displays Ultra Wide 23.1" Robust Steel Chassis Housing

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD231SDN1E1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contrast 3000:1 DDR 1GByte LPDDR3 Max. 2GByte
CPU ARM Cortex-A53 Quad Core TF Card Slot 1 X PUSH-PUSH TF Card Slot Max. 32GByte
Operating System Android 8.1 Operating Temperature 0℃-50℃
Power Consumption 20W Voltage Input DC 12V
Power Port Type C Housing Material Metal
MTBF 50000H Application Retail, Supermarket
High Light

digital signage screens

,

digital advertising screens

Leave a Message
Product Description

23.1" Super Slim Ultra Wide Shelf Edge Stretched Bar Android Digital Display





ITD’s line of ultra-wide shelf-level digital media LCD displays provide a significant opportunity for point of purchase conversion by engaging with the consumer via animated content. ITD has a range of shelf edge screens specifically developed for the retail shelf to help customer to create different brand.



FEATURES



•High contrast color TFT LCD displays

•Supports DDC 1/2B for Plug & Play compatibility

•Robust steel chassis housing for harsh environment

•Provides improved power efficiency and reduced consumption

•Ultra-wide Viewing Angle

•3rd party APK supported, CMS optional

•VESA mounting brackets included easily installed on store shelf





LCD PANEL
Cell Type/Glass Surface TFT
Size 23.1”
Active Area 585.6(H) x 48.19(V)
Pixel Pitch 0.10167x0.305mm
Native Resolution 1920 x 158
Colors 1.07G
Brightness 500nits
Contrast 3000:1
Response Time 9.5ms
Field Frequency 60Hz
Viewing Angle(Typical) 89/89/89/89
Light Source LED backlight with 50000hours’lifetime
SYSTEM
CPU ARM Cortex-A53 Quad Core
DDR 1GByte LPDDR3 Max. 2GByte
eMMC 8GB/16GB EMMC Max. 32GByte
WIFI 2.4G IEEE 802.11a/b/g/n
TF Card Slot 1 x PUSH-PUSH TF Card Slot Max. 32GByte
USB 1 x Micro USB
Voltage Input DC 12V
Power Port Type C
Operating System Android 8.1
Video Formats Supported

AVI, MOV, MKV, MP4, M4V,

FLV, 3GP, 3G2, 3GPP, MPG,

H.265(HEVC) 4K2K@30fps, 1080P@30fps),

H.264(BP/MP/HP level 4.1, 1080p@30fps),

H.263(profile 3,1080p@30fps), MPEG-1

(MP, 1920X1080@30fps), MPEG-2 (MP,

1920X1080@30fps), MPEG-4 (ASP,

1920X1080@30fps), Xvid (Home theater

1920X1080@60fps), MJPEG (baseline,

1920X1080@60fps), Divx (3.11,

1280x720@60fp)

Image Format Supported JPG/BMP/PNG/GIF/JPEG, etc.
ENVIRONMENTAL CONDITION




Power Consumption Operation/Power Saving 20W
Operating Temperature 0℃-50℃
Storage Temperature -10℃-60℃
Relatively Humidity 5~85% (Non-Condensing)
  WEIGHT




Gross Weight 1.5KG
Net Weight 1.4KG

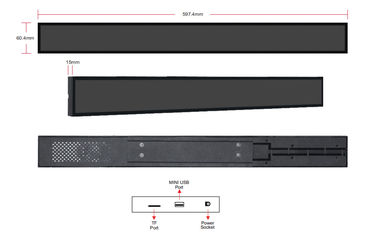

Product Display
Super Slim Indoor Digital Signage Displays Ultra Wide 23.1" Robust Steel Chassis Housing 0
