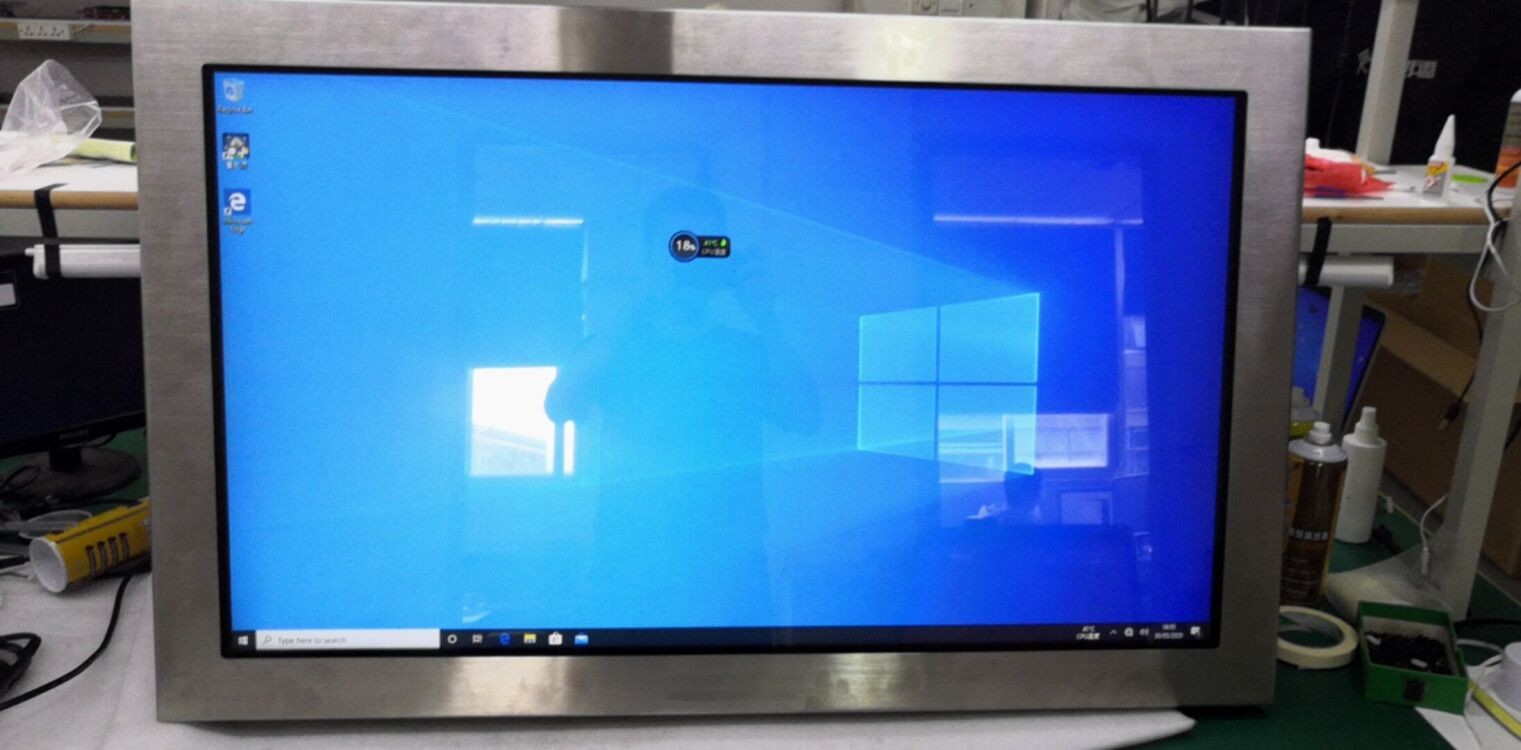

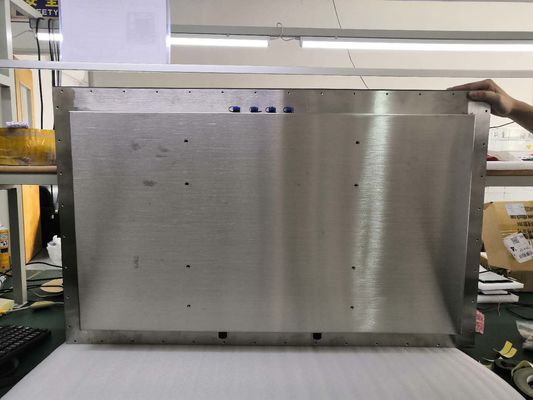

Stainless Steel 43 55 Inch IP65 Capacitive Touch Screen PC
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD43PPCT5IPSJ1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 working days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J1900, Intel I3/i5/i7 | Material | Stainless Steel Housing |
|---|---|---|---|
| Screen Diagonal | 43"55" Max. 65" | Physical Resolution | 1920*1080 |
| View Angels | 89/89/89/89 | Backlife | LED Backlight With 50000 Hours’lifetime |
| Card Reader | Optional | IP Rate | Full IP65 IP66 IP67 |
| Touch Screen | PCAP Touch Or IR Touch | Lifespan | 50000hours |
| High Light | linux windows rugged industrial pc,ip65 rugged all in one pc |
||
Product Description
43inch 55inch stainless steel IP65 panel PC capacitive touch screen Linux Windows based
The ITD Full IP65/IP66 panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, biotechnology process manufacturing and outdoor application. This waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.
FEATURES
•Robust stainless steel/aluminum alloy enclosure, sealed I/O from particles, water, and corrosive agents
•Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged stainless steel/aluminum alloy enclosure design with high EMC and IP65/IP66 NEMA4/4X protection
•Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
•Flexible, reliable, and ruggedized for open platform HMI/SCADA
•Provides improved power efficiency and reduced consumption
•CE, FCC, RoHS Compliance
OPTIONALS
| • DC 24V, DC9-36V, AC100-240V | • Optical bonding, IP67 |
| • IR, PCAP touch screen, AR/AG tempered glass | • WIFI, 3G, 4G, Bluetooth |
| • Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc. | • Stainless Steel, Aluminum Alloy |
DISPLAY
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 43”/16:9 | |
| Active Area/ Pixel Pitch | 941.184(H)x529.416(V)mm/0.4902 × 0.4902mm | |
| Native Resolution/ Colors | 1920 x 1080/16.7M | |
| Brightness/ Contrast | 400cd/㎡/1200:1 | |
| Response Time/ Viewing Angle(Typical) | 8ms/89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| Default Waterproof I/O |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | AC100-240V Input |
| Operation/Power Saving | 90~140W | |
| Environment Considerations | Operating Temperature | 0~50℃ |
| Storage Temperature | -10~60℃ | |
| Mounting | VESA Mount, Panel/Embedded Mount optional | |
| Order Information | 43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD43PPCG1IP*E2 | |
| 43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with IR Touch: ITD43PPCT2IP*E2 | ||
| 43” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD43PPCT5IP*E2 | ||
| 43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD43PPCG1IP*J2 | ||
| 43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with IR Touch: ITD43PPCT2IP*J2 | ||
| 43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD43PPCT5IP*J2 | ||
| 43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD43PPCG1IP*I3 | ||
| 43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with IR Touch: ITD43PPCT2IP*I3 | ||
| 43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD43PPCT5IP*I3 | ||
| 43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD43PPCG1IP*I5 | ||
| 43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with IR Touch: ITD43PPCT2IP*I5 | ||
| 43” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD43PPCT5IP*I5 | ||
DISPLAY
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 55”/16:9 | |
| Active Area/ Pixel Pitch | 1209.6mm(W) × 680.4mm(H)/0.630 × 0.630mm | |
| Native Resolution/ Colors | 1920 × 1080/16.7M | |
| Brightness/ Contrast | 350cd/㎡/1400:1 | |
| Response Time/ Viewing Angle(Typical) | 8ms/89/89/89/89 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| Default Waterproof I/O |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | AC100-240V Input |
| Operation/Power Saving | 120~180W | |
| Environment Considerations | Operating Temperature | 0~50℃ |
| Storage Temperature | -10~60℃ | |
| Mounting | VESA Mount, Panel/Embedded Mount optional | |
| Order Information | 55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD55PPCG1IP*E2 | |
| 55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with IR Touch: ITD55PPCT2IP*E2 | ||
| 55” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD55PPCT5IP*E2 | ||
| 55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD55PPCG1IP*J2 | ||
| 55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with IR Touch: ITD55PPCT2IP*J2 | ||
| 55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD55PPCT5IP*J2 | ||
| 55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD55PPCG1IP*I3 | ||
| 55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with IR Touch: ITD55PPCT2IP*I3 | ||
| 55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD55PPCT5IPS*I3 | ||
| 55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD55PPCG1IP*I5 | ||
| 55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with IR Touch: ITD55PPCT2IP*I5 | ||
|
55” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD55PPCT5IP*I5 |
||
