Front Panel IP65 PCAP NEM 17.3" Industrial Lcd Monitor

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD173OFT5K1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-7 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input VGA/HDMI/DVI Touch Panel Projected Capacitive Touch Panel With 10 Multi Touch Points
Touch Interface USB/RS232 Power Source External Power Supply With Universal/Auto-Sensing, DC 12V For 7”~27” Internal Power Supply With Universal/Auto-Sensing, AC100~240V For 32”~43”
Mounting VESA Mounting Touchscreen Type 10 Point PCAP Multi Touch
LCD Type 17.3"Active Matrix TFT-LCD Resolution 1920x1080
Dot Pitch(mm) 0.1989×0.1989 Viewing Angle (L/R/T/B) 85°/85°/85°/85°
High Light

NEM 17.3" Industrial Lcd Monitor

,

IP65 PCAP Industrial Lcd Monitor

,

NEM Front Panel FHD Monitor

Leave a Message
Product Description

17.3" Pure Flat screen industrial lcd Monitor IP65 NEMA 4 on front panel FHD monitor



SPECIFICATIONS of 17.3" Industrial Lcd Monitor



2. 1 General

Model ITD173OFT5K1
IP IP65(for front panel only)
Outline Dimensions Width: 394mm Height: 241mm Depth: 34.8mm
Weight(N.W/G.W) 3.04Kg / 5.05Kg (Approx.)
Packing Dimension 520(W) ×450(H)×145(D)mm
Speakers 8Ω10W
LCD Type 17.3"Active matrix TFT-LCD
Video Input VGA and DVI-I, HDMI, Audio
Recommend Resolution 1920×1080@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External Brick
Input (line) Voltage: 100-240 VAC, 50-60 Hz
Output Voltage/Current: 12V at 4A Max.
Power Consumption 18W
Mount Interface

1)VESA 75×75 and 100×100mm

2)Mounting Brackets optional

Regular Warranty 1 Year for TFT Panel and 2 Years for Others
Agency Approval FCC,CE,RoHS Certified





2. 2 LCD Specification

Active Area(mm) 381.89(H) x 214.81(V)
Resolution 1920×1080
Dot Pitch(mm) 0.1989×0.1989
Nominal Input Voltage VDD +3.3V(Typ)
Viewing angle (L/R/T/B) 85°/85°/85°/85°
Contrast 800:1
Luminance(cd/m2) 300
Response Time(Rising/Falling) 30s
Support Color 262K
Screen Scanning 60Hz
Backlight MTBF(hr) 50000h





2.3 Touch Screen Specification of industrial Monitor IP65 NEMA 4

Type Projected Capacitive Touch Screen
Resolution 4096×4096
Light Transmission 85%±5%
Touch Life Cycle 50 millions times
Touch Response time 5ms
Touch System Interface USB A type
Operating Temperature -10~60°C
Operating System Support

Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Android



Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C



2.5 Environment

Operating Temp. -10~50°C
Storage Temp. -10~60°C
Operating RH: 20%~80%
Storage RH: 10%~90%



Product image:



pure flat industrial monitor













43 inch pcap touch monitor


43 inch touch screen monitor

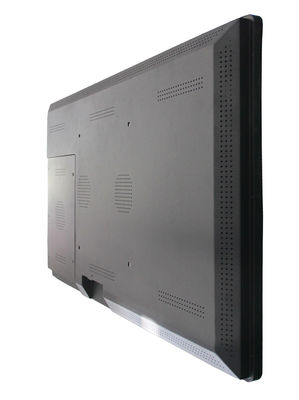

Front Panel IP65 PCAP NEM 17.3" Industrial Lcd Monitor 3


Front Panel IP65 PCAP NEM 17.3" Industrial Lcd Monitor 4
