1366x768 1000Mbps Ethernet Rugged Industrial Panel 250nits

  • 1366x768 1000Mbps Ethernet Rugged Industrial Panel 250nits
  • 1366x768 1000Mbps Ethernet Rugged Industrial Panel 250nits
  • 1366x768 1000Mbps Ethernet Rugged Industrial Panel 250nits
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD08PPCT5XJ1---ITD21PPCT5XJ1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU Intel® Bay Trail Celeron Quad Core J1900 2.0GHz Processor Graphic Chipset CPU Integrated Graphics HD And Support 1080p
LAN 1 X 10/100/1000Mbps Ethernet WIFI Built-in, 802.11a/b/g/h (optional)
OS Support Windows CE/XP/7/8/10, Linux, Mac, Android Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
High Light

1000Mbps Ethernet Rugged Industrial Panel

,

1366x768 Rugged Industrial Panel

,

250nits Pc Industrial Touch Screen
Leave a Message
Product Description

pure flat rugged industrial panel mount touch panel PC





The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0 GHz with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.




SPECIFICATION



Model ITD08PPCT5XJ1 ITD101PPCT5XJ1 ITD10PPCT5XJ1 ITD12PPCT5XJ1
Size 8”(4:3) 10.1”(16:9) 10.4” (4:3) 12.1” (4:3)
Active Area 162.0(W) x 121.5(H) 227.0(W) x 131.0(H) 211.2(W) x 158.4(H) 246.0(H) x 184.5(V)
Contrast Ratio 500:1 500:1 500:1 500:1
Resolution 800 x 600 1366x768 800 x 600 or 1024 x 768 800 x 600 or 1024 x 768
Brightness 250nits 300nits 300nits 300nits
Viewing Angles 70/70/50/70 80/80/80/80 70/70/60/70 70/70/60/60
Backlight LED LED LED LED
Model ITD12PPCT5XJ1W ITD15PPCT5XJ1 ITD156PPCT5XJ1 ITD17PPCT5XJ1
Size 12.1” (16:10) 15” (4:3) 15.6” (16:9) 17” (5:4)
Active Area 261.12(H) x 163.2(V) 304.12(H)x 228.09(V) 344.23(H)x 193.53(V) 337.92(H) x 270.33(V)
Contrast Ratio 700:1 700:1 500:1 1000:1
Resolution 1280 x 800 1024 x 768 1366 x 768 or 1920 x 1080 1280 x 1024
Brightness 300nits 250nits 250nits 250nits
Viewing Angles 80/80/80/60 80/80/60/70 80/80/80/80 85/85/80/80
Backlight LED LED LED LED
Model ITD173PPCT5XJ1 ITD19PPCT5XJ1 ITD19PPCT5XJ1W ITD21PPCT5XJ1
Size 17.3”(16:9) 19” (5:4) 19” (16:10) 21.5” (16:9)
Active Area 381.88(H) x 214.81(V) 376.32(H) x 301.06(V) 408.32(H) x 255.2(V) 476.64(H)x248.25(V)
Contrast Ratio 700:1 1000:1 1000:1 1000:1
Resolution 1920 x 1080 1280 x 1024 1440 x 900 1920 x 1080
Brightness 300nits 250nits 250nits 250nits
Viewing Angles 80/80/80/80 85/85/80/80 85/85/80/80 85/85/80/80
Backlight LED LED LED LED

SPECIFICATION

System CPU Intel® Bay Trail Celeron Quad Core J1900 2.0GHz Processor
BIOS Award BIOS 4/8Mbit SPI Flash ROM
Chipset Intel® Bay Trail SOC CPU Integrated
Memory 1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
Graphic Chipset CPU integrated graphics HD and support 1080p
Storage 32GB SSD or 320GB HDD
LAN 1 x 10/100/1000Mbps Ethernet
I/O Serial Ports 1xCOM(10.1”,10.4”); 2xCOM(Default to RS232, RS422/485 optional)
USB Ports 2XUSB 2.0(10.1”,10.4”); 2XUSB2.0, 2XUSB3.0
VGA Port 1 x VGA
HDMI Port 1 x HDMI Port
Power Port 1 x 12V DC Jack input(ATX is optional)
Audio Card Realtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN
WIFI Built-in, 802.11a/b/g/h (optional)
Touch Screen Type Projected Capacitive Touch Screen with 10 independent touch points (Default to USB Port, RS232 Port Optional)
Response Time ≤5ms
Transparency ≥85%
Lifetime ≥50,000,000 times/click
OS Support Windows CE/XP/7/8/10, Linux, Mac, Android
Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Operation Humidity 10%~90%(No Condensation)
mounting method VESA, embedded/panel mounting with clamps, desktop stand
Order Information Flat Bezel PCAP Panel Mounted Panel PC/ITD**PPCT5XJ1
Flat Bezel Resistive Touch Panel Mounted Panel PC/ITD**PPCT1XJ1
Flat Bezel Tempered Glass Panel Mounted Panel PC/ITD**PPCG1XJ1

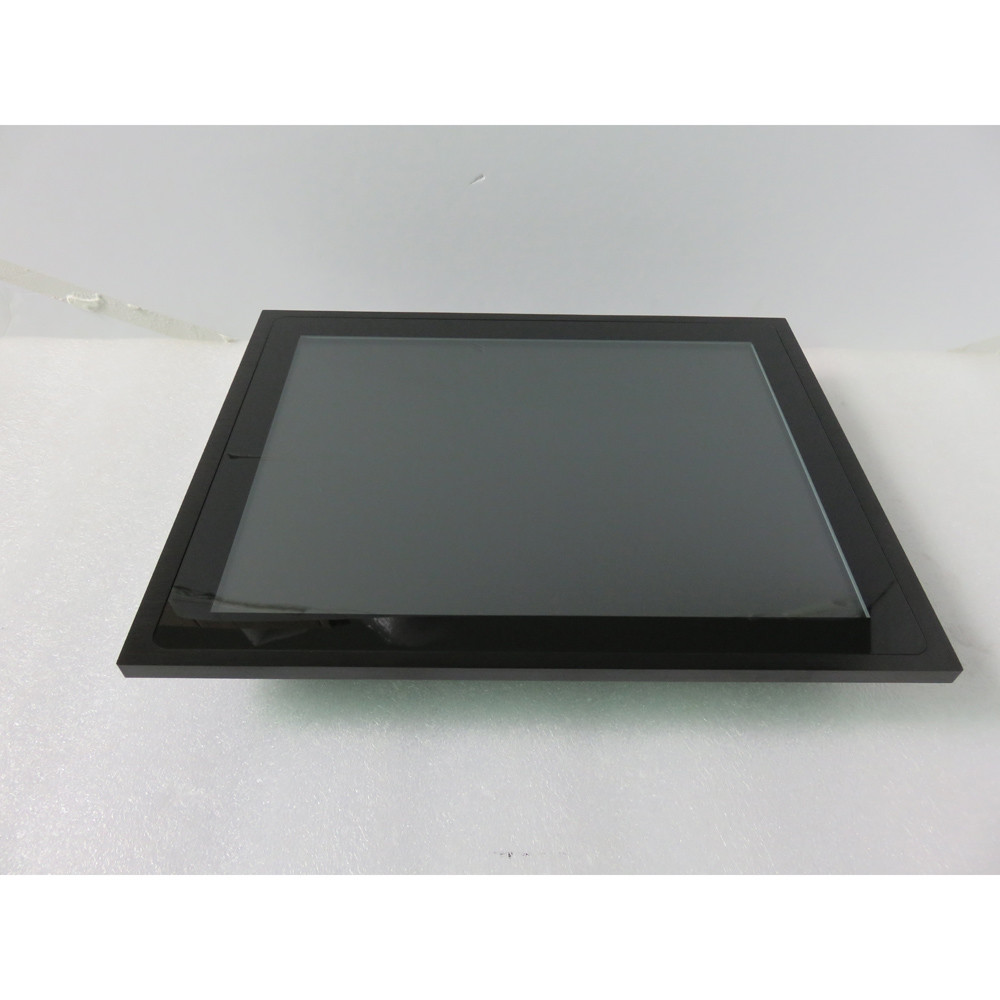

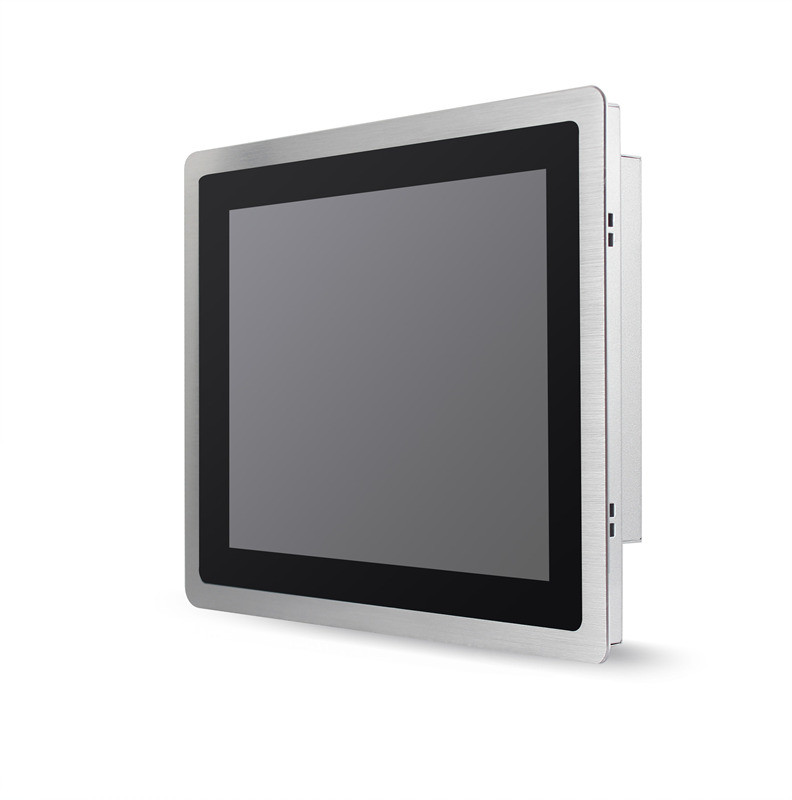

Product Image



12.1" panel mount monitor







1366x768 1000Mbps Ethernet Rugged Industrial Panel 250nits 1



1366x768 1000Mbps Ethernet Rugged Industrial Panel 250nits 2






Our factory:

1366x768 1000Mbps Ethernet Rugged Industrial Panel 250nits 3




1366x768 1000Mbps Ethernet Rugged Industrial Panel 250nits 4


1366x768 1000Mbps Ethernet Rugged Industrial Panel 250nits 5
