500nits 1024x768 Android Panel PC 12.1" Android Touch Screen Computer

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD12PPCT5KE1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 800 X 600 Or 1024 X 768 Optional Brightness 500nits, 1000nits 1500nits Optional
I/O HDMI Input, USB Ports, SD Card Slot, RJ45,COM Optional Touch Panel Capacitive 10 Points
Mounting Method VESA, Side Mounting Brackets Optional Power Input DC 12V, DC 9-36V, AC 100-240V Input Optional
Operating Temperature -10~60℃ (-20~70℃ Optional) Storage Temperature -20~70℃
Material Steel Housing, Aluminum Frame Warranty 2 Years
MTBF 50000hours POE Optional
High Light

500nits Android Panel PC

,

1024x768 Android Panel PC

,

12.1" Android Touch Screen Computer

Leave a Message
Product Description

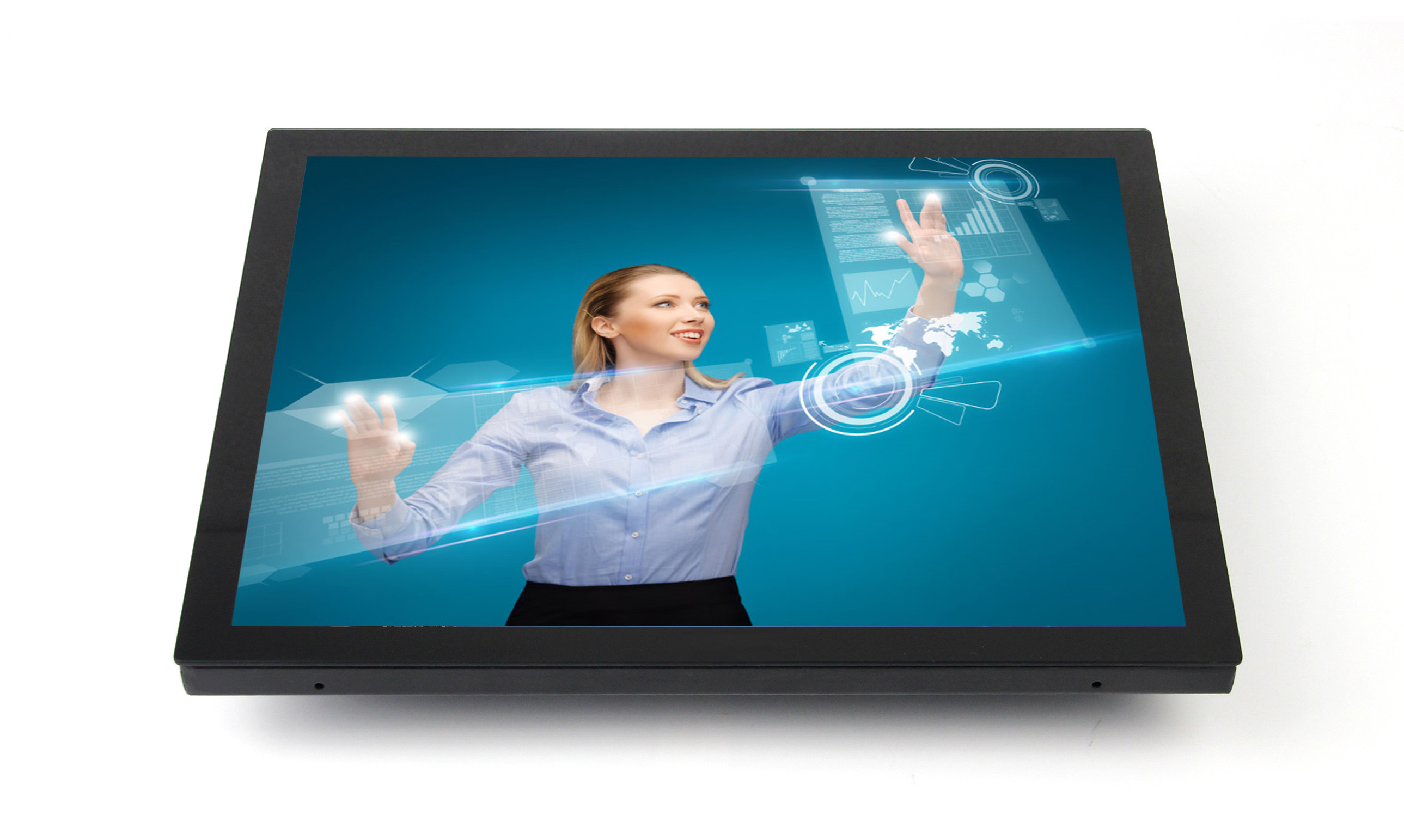

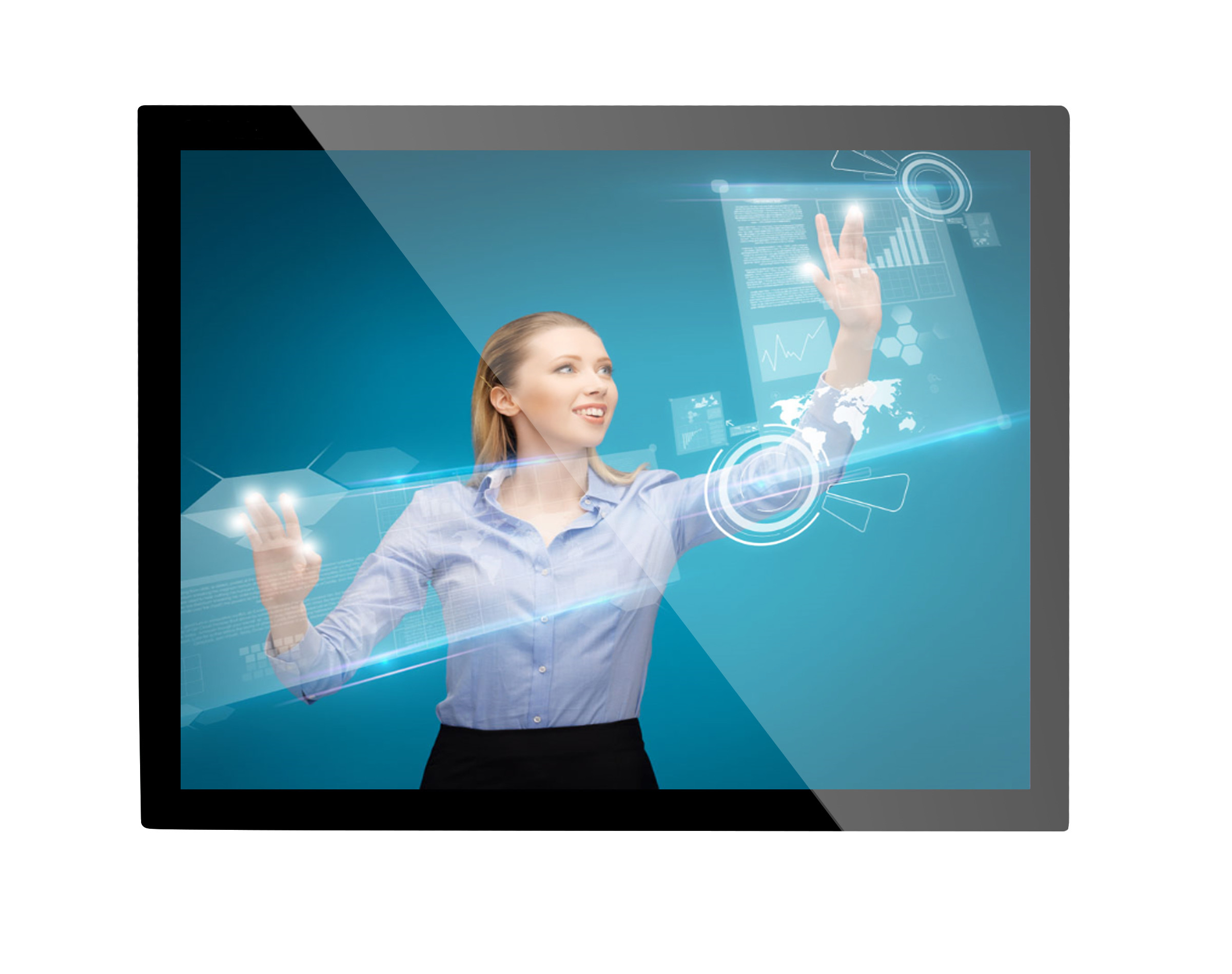

android touch screen computer 12.1" 500nits 1024x768 industrial panel PC



  • 500nits, 1000nits ,1500nits optional
  • Flat surface edge to edge with easy-to-clean surface
  • IP65 front, NEMA 4 rated
  • USB ports, COM port, RJ45 port, HDMI output, DC input
  • Ultra low power consumption, POE optional
  • 10 mutl touch points projected capacitive
  • MTBF at 50000hours
Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 12.1”/4:3
Active Area/ Pixel Pitch 245.76(W) x 184.32(H)mm /0.240× 0.240mm
Native Resolution/ Colors 1024 x 768/262K/16.2M
Brightness/ Contrast 500cd/㎡/700:1
Response Time 25/10ms
Viewing Angle(Typical) 80/80/80/80
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 6.0/7.1; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

Input / Output

1 × HDMI; 2 × USB Max. 6× USB

1 × TF Card Support 8~128GB;

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

1 × DC 12V 2.0; 3G/4G Optional

Com Port optional

Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 12.1”Zero-Bezel Android Panel PC with Tempered Glass/ITD12PPCG1KE1
