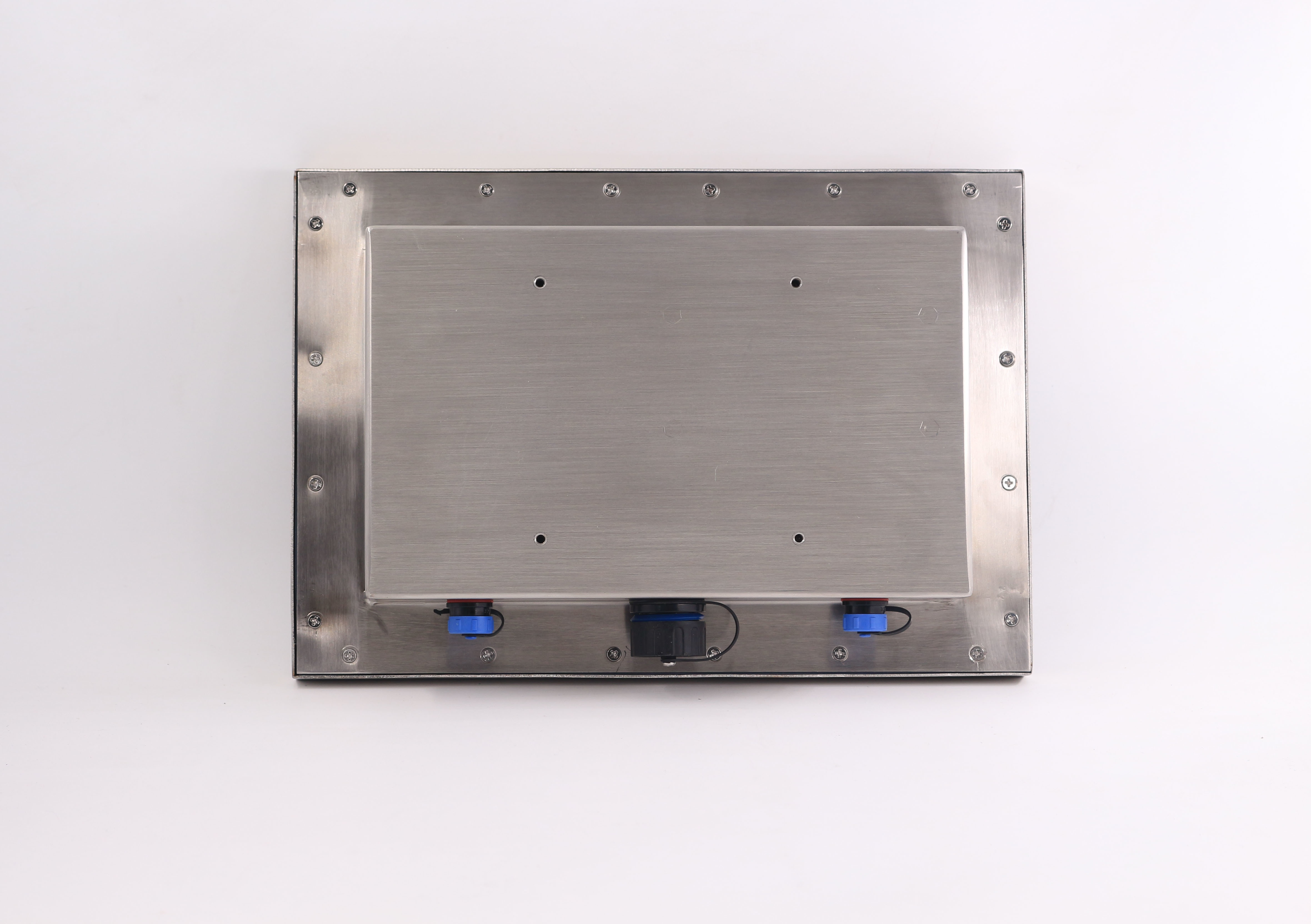

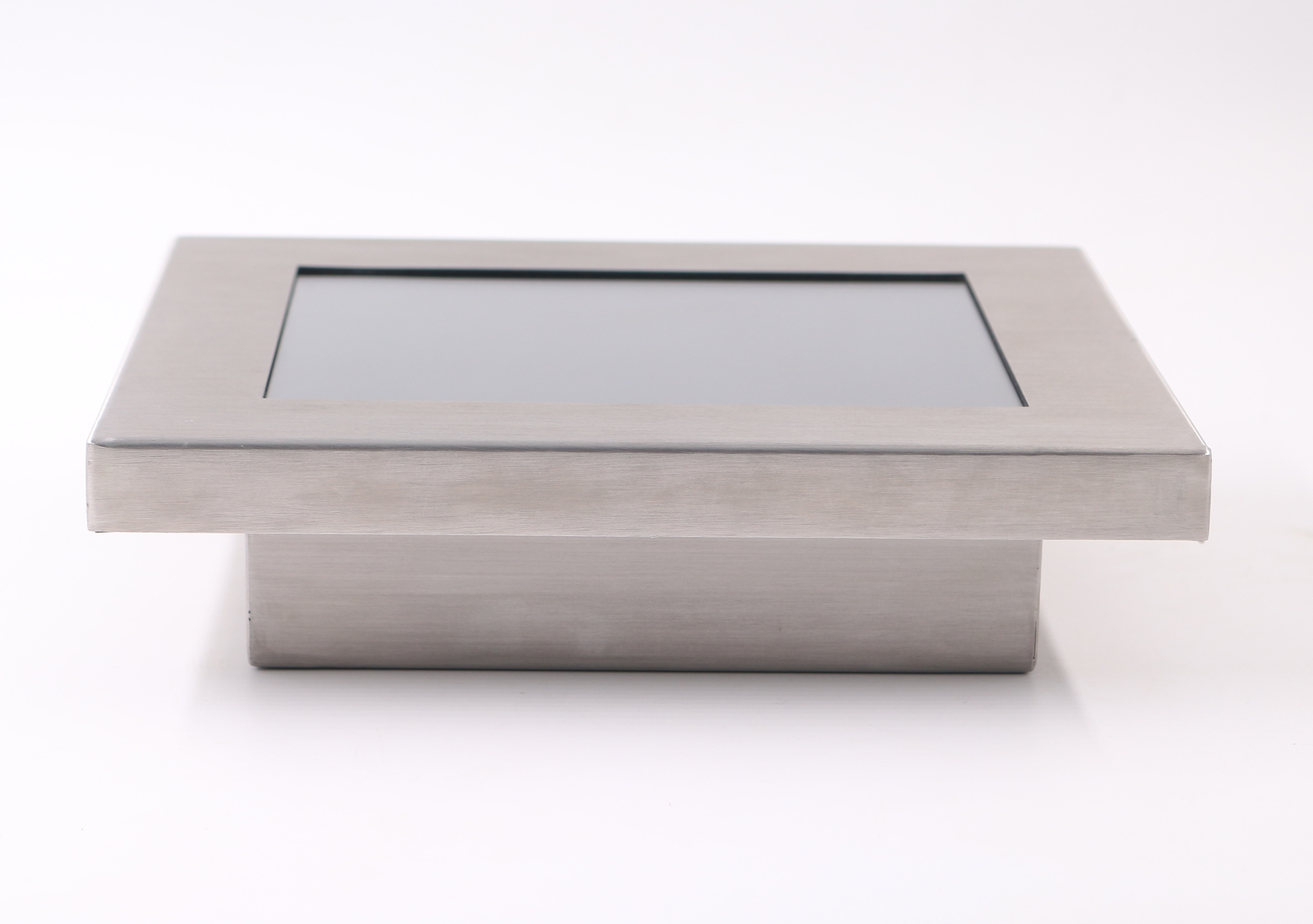

1000nits 8in Fanless All In One PC IP65 Stainless Steel Touchscreen Computer
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD101PPCT5IPSxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 working days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | RK3288, RK3399 | Material | Stainless Steel Housing |
|---|---|---|---|
| Screen Diagonal | 8" | Physical Resolution | 1024X768 |
| View Angels | 80/80/80/80 | Backlife | LED Backlight With 50000 Hours’lifetime |
| RAM | 2G Max. 4G | IP Rate | Full IP65 IP66, IP69K Optional |
| Touch Screen | Resistive Touch Screen Or PCAP Touch | Storage | 8G, Max. 32G |
| OS | Android 8.9,10, 11, Linux Optional | ||
| High Light | 8in Fanless All In One PC,1000nits Fanless All In One PC,IP65 Stainless Steel Touchscreen Computer |
||
Product Description
8 inch fanless all in one PC IP65 stainless steel touchscreen computer
ITD’s waterproof touch computers are built for tough environments where waterjets or strong chemicals are used for cleaning. They're fully dustproof and waterproof, ideal for food and beverage manufacturing, meat/poultry processing, pharmaceutical processing, clean room manufacturing and outdoor placements. These fully sealed Waterproof PCs are built with SUS304 or SUS316L stainless steel, and have fanless heatsink cooling systems. They are NEMA 4X rated and range in Ingress Protection (IP) ratings from IP65 to IP69K and barcode scanner 1D/2D optional.
Specifications
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 8”/4:3 | |
| Active Area/ Pixel Pitch | 162.048(W) x 121.536(H)mm/0.15825 × 0.15825mm | |
| Native Resolution/ Colors | 1024 x 768/16.7M | |
| Brightness/ Contrast | 350cd/㎡ 1000nits optional/700:1 | |
| Response Time/ Viewing Angle(Typical) | 20ms/80/80/80/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
| Model | ITD101PPCG1IPSE2 | ITD10PPCG1IPSE2 | ITD12PPCG1BIPSJE2 | ITD15PPCG1IPSE2 |
| Size | 10.1” (16:10) | 10.4” (4:3) | 12.1” (4:3) | 15” (4:3) |
| Active Area | 216.96(W) x 135.6(H) | 211.2(W) x 158.4(H) | 246.0(H) x 184.5(V) | 211.2(W) x 158.4(H) |
| Contrast Ratio | 700:1 | 500:1 | 500:1 | 700:1 |
| Resolution | 1280x800 | 800x600 or 1024x768 | 800x600 or 1024x768 | 1024 x 768 |
| Brightness | 350nits | 300nits | 300nits | 300nits |
| Viewing Angles | 70/70/60/70 | 70/70/60/70 | 70/70/60/60 | 80/80/60/80 |
| Backlight | LED | LED | LED | LED |
| Model | ITD17PPCG1IPSE2 | ITD19PPCG1IPSE2 | ITD21PPCG1IPSE2 | ITD24PPCG1IPSE2 |
| Size | 17” (4:3) | 19” (4:3) | 21.5” (16:9) | 24” (16:9) |
| Active Area | 337.92(H) x 270.33(V) | 376.32(H) x 301.06(V) | 476.64(H)x248.25(V) | 521.28(H)x293.22(V) |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 3000:1 |
| Resolution | 1280 x 1024 | 1280 x 1024 | 1920 x 1080 | 1920 x 1080 |
| Brightness | 300nits | 300nits | 300nits | 300nits |
| Viewing Angles | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 | 89/89/89/89 |
| Backlight | LED | LED | LED | LED |
SPECIFICATION
| System | CPU | ARM Quad Core RK3288, Main CPU frequency:1.8GHz; |
| Memory | DDR3, 2Gb, Max. 4G | |
| Flash | 8Gb, Max. 64G | |
| OS Support | Android 6.0(Android 7.1 optional) | |
| I/O | Serial Ports | 1 x COM (Optional) |
| USB Ports | 2 x USB 2.0(Waterproof Connector and Cable) ; Waterproof USB OTG optional | |
| Power Port | 1 x 12V DC Jack (Waterproof Connector and Cable); DC9-36V input optional | |
| HDMI Output | 1 x HDMI (Optional) | |
| LAN | 1 x 10/100Mbps Ethernet (Waterproof Connector and Cable) | |
| WIFI | Built-in, 802.11a/b/g/h (optional) | |
| Mounting | 75 x 75/100 x 100mm VESA Mount (Panel Mount optional) | |
| Power Consumption | TBA | |
| Operating Temperature | -10~60℃ (-20~70℃ Optional) | |
| Storage Temperature | -20~70℃ | |
| Order Information | Stainless Steel Full IP65/IP66 Android Panel PC with Tempered Glass: ITD**PPCG1IPSE2 | |
| Stainless Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD**PPCT1IPSE2 | ||
| Stainless Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD**PPCT5IPSE2 | ||
| Stainless Steel Full IP67 Android Panel PC with Tempered Glass: ITD**PPCG1IPSE7 | ||
| Stainless Steel Full IP67 Android Panel PC with Resistive Touch: ITD**PPCT1IPSE7 | ||
| Stainless Steel Full IP67 Android Panel PC with PCAP Touch: ITD**PPCT5IPSE7 | ||
| Aluminum Alloy Full IP65/IP66 Android Panel PC with Tempered Glass: ITD**PPCG1IPAE2 | ||
| Aluminum Alloy Full IP65/IP66 Android Panel PC with Resistive Touch: ITD**PPCT1IPAE2 | ||
| Aluminum Alloy Full IP65/IP66 Android Panel PC with PCAP Touch: ITD**PPCT5IPAE2 | ||
| Aluminum Alloy Full IP67 Android Panel PC with Tempered Glass: ITD**PPCG1IPAE7 | ||
| Aluminum Alloy Full IP67 Android Panel PC with Resistive Touch: ITD**PPCT1IPAE7 | ||
| Aluminum Alloy Full IP67 Android Panel PC with PCAP Touch: ITD**PPCT5IPAE7 | ||
| Steel Full IP65/IP66 Android Panel PC with Tempered Glass: ITD**PPCG1IPXE2 | ||
| Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD**PPCT1IPXE2 | ||
| Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD**PPCT5IPXE2 | ||
