10 Inch 1280X800 SUS316L Android Panel Pc NEMA4x For Beverage Industry
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD101PPCT5IPSxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 working days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | RK3288, RK3399 | Material | Stainless Steel Housing |
|---|---|---|---|
| Screen Diagonal | 10.1" | Physical Resolution | 1280X800 |
| View Angels | 85/85/85/85 | Backlife | LED Backlight With 50000 Hours’lifetime |
| RAM | 2G Max. 4G | IP Rate | Full IP65 IP66, IP69K Optional |
| Touch Screen | Resistive Touch Screen Or PCAP Touch | Storage | 8G, Max. 32G |
| OS | Android 8.9,10, 11, Linux Optional | ||
| High Light | SUS316L Android Panel Pc,1280X800 Android Panel Pc,10 Inch Pcap Touch Panel |
||
Product Description
10 inch panel pc Android 11 fully sealed NEMA4x SUS316L for beverage industry

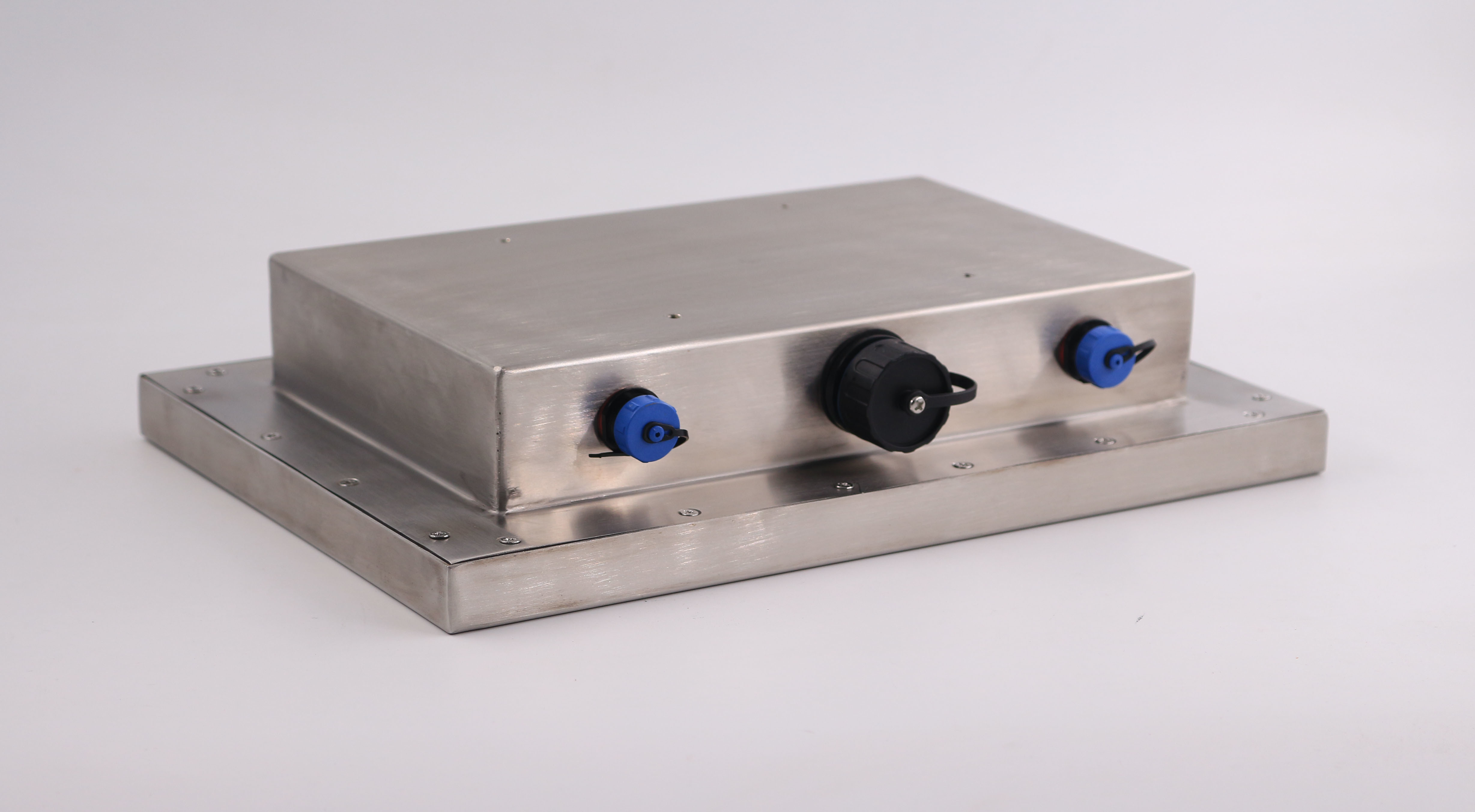

This rugged touch PC is fully sealed and rated IP66 / IP69K, for protection from high-temperature, high-pressure waterjets. You can also upgrade to IP67, which protects the computer from submersion in water. It is designed with downward facing I/Os, so they’re are less likely to get hit during the workflow of a production floor and you can mount the PC flush to a wall. This computer comes with waterproof I/O connectors, for a fully sealed solution and the power supply is rated IP68.
Specifications
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 10.1”/16:10 | |
| Active Area/ Pixel Pitch | 216.96(H) ×135.6(V)mm/0.1695 × 0.1695mm | |
| Native Resolution/ Colors | 1280 x 800/16.7M | |
| Brightness/ Contrast | 350cd/㎡ 1000nits optional/800:1 | |
| Response Time/ Viewing Angle(Typical) | 25ms/85/85/85/85 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| Default Waterproof I/O |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 15~25W | |
| Environment Considerations | Operating Temperature | -10~60℃(-20~70℃ optional) |
| Storage Temperature | -20~70℃ | |
| Mounting | VESA Mount, Panel/Embedded Mount optional | |
| Order Information | 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD101PPCG1IP*E2 | |
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD101PPCT1IP*E2 | ||
| 10.1” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD101PPCT5IP*E2 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD101PPCG1IP*J2 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD101PPCT1IP*J2 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD101PPCT5IP*J2 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD101PPCG1IP*I3 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD101PPCT1IP*I3 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD101PPCT5IP*I3 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD101PPCG1IP*I5 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD101PPCT1IP*I5 | ||
| 10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD101PPCT5IP*I5 | ||

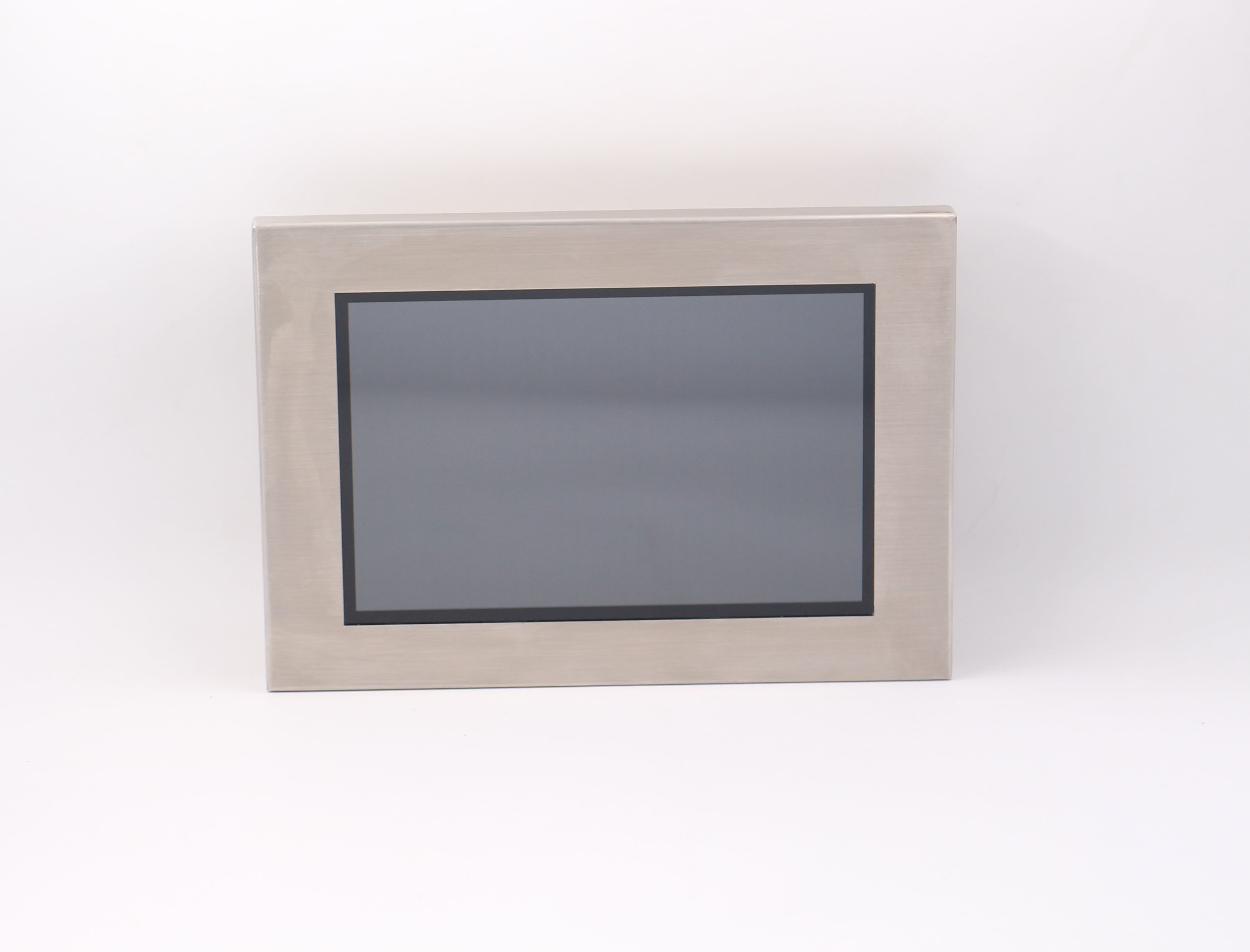

Product Display
