12.1 Inch XGA 1500nits Android Touch Screen Pc Outdoor Full IP67 40W
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD12PPCT5IPSxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 working days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | RK3288, RK3399, Intel J1900, E3845, I3/i5/i7 Optional | Material | Stainless Steel Housing, Aluminum Optional |
|---|---|---|---|
| Screen Diagonal | 12.1" | Physical Resolution | 1024 X 768 |
| View Angels | 80/80/80/80 | Backlife | LED Backlight With 50000 Hours’lifetime |
| RAM | 2G Max. 4G | IP Rate | Full IP65 IP66, IP69K Optional |
| Touch Screen | Resistive Touch Screen Or PCAP Touch | Storage | 8G, Max. 32G |
| OS | Android 8.9,10, 11, Linux Optional | ||
| High Light | 1500nits Android Touch Screen Pc,40W Android Touch Screen Pc,12.1 Inch Lcd Panel Pc |
||
Product Description
12.1 inch XGA 1500nits outdoor full IP67 Android all in 1 pc touch screen
Options:
| • DC 24V, DC9-36V, AC100-240V | • Optical bonding, IP67 |
| • Resistive, IR, PCAP touch screen, AR/AG tempered glass | • WIFI, 3G, 4G, Bluetooth |
| • Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc. | • Stainless Steel, Aluminum Alloy |
Specifications
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 12.1”/4:3 | |
| Active Area/ Pixel Pitch | 246.0(W) x 184.5(H)mm/0.3075 × 0.3075mm | |
| Native Resolution/ Colors | 800 x 600 (1024 x 768 optional)/ 262K/16.2M | |
| Brightness/ Contrast | 300cd/㎡/700:1 | |
| Response Time/ Viewing Angle(Typical) | 30ms/80/80/60/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| Default Waterproof I/O |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 20-40W | |
| Environment Considerations | Operating Temperature | -10~60℃(-20~70℃ optional) |
| Storage Temperature | -20~70℃ | |
| Mounting | VESA Mount, Panel/Embedded Mount optional | |
| Order Information | 12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD12PPCG1IP*E2 | |
| 12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD12PPCT1IP*E2 | ||
| 12.1” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD12PPCT5IP*E2 | ||
| 12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD12PPCG1IP*J2 | ||
| 12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD12PPCT1IP*J2 | ||
| 12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD12PPCT5IP*J2 | ||
| 12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD12PPCG1IP*I3 | ||
| 12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD12PPCT1IP*I3 | ||
| 12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD12PPCT5IP*I3 | ||
| 12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD12PPCG1IP*I5 | ||
| 12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD12PPCT1IP*I5 | ||
| 12.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD12PPCT5IP*I5 | ||

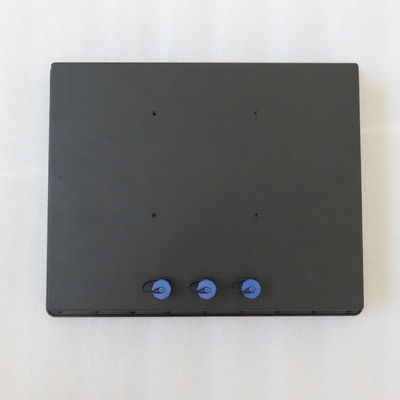

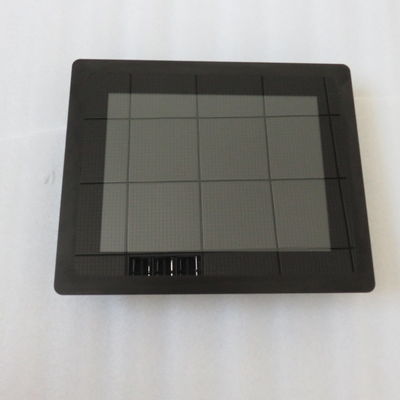

Product Display
