LPCM RK3288 Industrial Panel Pc 13.3 Inch FHD Touch Screen

Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD13PPCT5XE31
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 15-20 working days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU RK3288, RK3399, Intel J1900, E3845, I3/i5/i7 Optional Material Aluminum Frame, Steel Back Chassis
Screen Diagonal 13.3" Physical Resolution 1920 X 1080
View Angels 85/85/85/85 Backlife LED Backlight With 50000 Hours’lifetime
RAM 2G Max. 4G IP Rate Front IP65
Touch Screen Resistive Touch Screen Or PCAP Touch Storage 8G, Max. 32G
OS Android 8.9,10, 11, Linux Optional
High Light

RK3288 Industrial Panel Pc

,

LPCM Industrial Panel Pc

,

13.3 Inch Android Panel Pc

Leave a Message
Product Description

13.3 inch FHD touch screen computer all in one android industrial panel pc



Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 13.3”/16:9
Active Area/ Pixel Pitch 293.42(H)x 164.97(V)mm/0.2235 × 0.2235mm
Native Resolution/ Colors 1920 x 1080/262K
Brightness/ Contrast 300cd/㎡/700:1
Response Time 16ms/89/89/89/89
Viewing Angle (Typical) LED Backlight with 50000Hours’Lifetime
Light Source 293.42(H)x 164.97(V)mm/0.2235 × 0.2235mm

SPECIFICATION

System

CPU: ARM Quad Core RK3288, Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 5.1/6.0; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

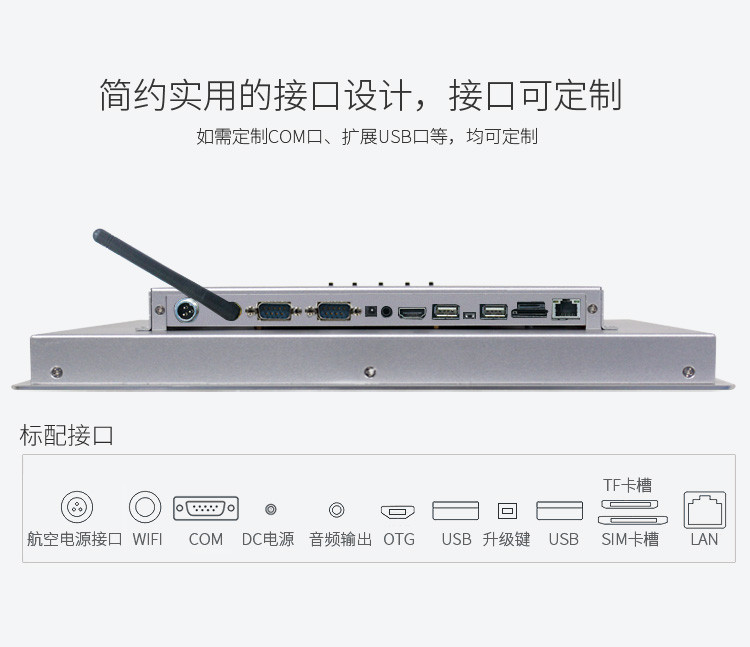

Input / Output

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1×COM;

1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90% (Non-Condensing)
Order Information 13.3” Flat Bezel Android Panel PC with PCAP Touch/ITD13PPCT5XE1
13.3” Flat Bezel Android Panel PC with Resistive Touch/ITD13PPCT1XE1
13.3” Flat Bezel Android Panel PC with Tempered Glass/ITD13PPCG1XE1


 Product Display

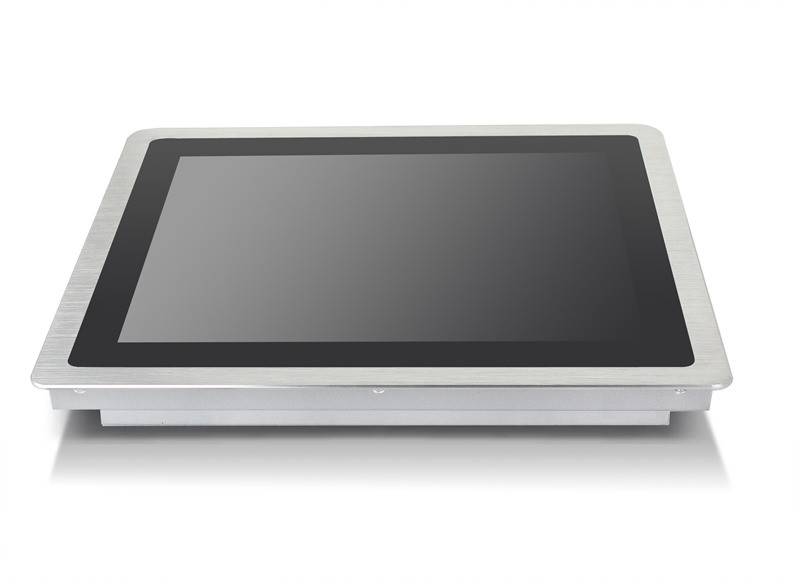

 LPCM RK3288 Industrial Panel Pc 13.3 Inch FHD Touch Screen 0

LPCM RK3288 Industrial Panel Pc 13.3 Inch FHD Touch Screen 1
