Widescreen 15.6" Sunlight Readable LCD Monitor Panel Mount View Angels

China Widescreen 15.6" Sunlight Readable LCD Monitor Panel Mount View Angels supplier
Widescreen 15.6" Sunlight Readable LCD Monitor Panel Mount View Angels supplier Widescreen 15.6" Sunlight Readable LCD Monitor Panel Mount View Angels supplier

Large Image :  Widescreen 15.6" Sunlight Readable LCD Monitor Panel Mount View Angels

Product Details:

Place of Origin: China
Brand Name: ITD
Certification: CE,ROHS,FCC
Model Number: ITD156PMT5HB02

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: TBA
Packaging Details: Foam,gift box,master carton,woonden case,pallet
Delivery Time: 10-15 work days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10000 units per month
Contact Now
Detailed Product Description
Screen Diagonal: 15.6" Display Active Screen Size: 344.16 (H) ×193.59(V) Mm
Aspect Ratio: 16:9 Physical Resolution: 1920X1080
Brightness: 1000 Cd/m² Operating Temperature Range: -10~60°C (-20~70°C Optional)
Video Input: VGA/DVI/HDMI Power Input: Internal Power Supply, AC100V~240V
Touch Options: Resistive, IR, PCAP, SAW View Angels: 80/80/80/80

15.6" widescreen panel mount monitor high brightness touchscreen





FEATURES



- 15.6" Very Bright Active Matrix Sunlight Readable TFT Display, 1000 nits (cd/m2)

- Optical Bonding for Better Readability in Sunlight Optional

- High-Luminance Solid-State LED-enhanced Backlighting

- Rugged Black Powder-Coated Steel Chassis

- A multitude of Video Inputs: VGA, DVI-I Pin, HDMI

- High Contrast Ratio & Definition, Outstanding Vivid Color & Image Quality





Specifications:



Panel Mount High Brightness LCD Monitor



Model Name ITD156PMN1HB02
IP Rating IP65 Front Panel

LCD Panel



Screen Diagonal (Inch/cm) 15.6”
Display Active Screen Size (mm) 344.16 (H) ×193.59(V)
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 1000 cd/m²
Contrast Ratio 500:1
View Angels 80/80/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime

Touch Panel



Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Input / Output



Video Input 1 × VGA
1 × DVI-I
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB
Power Connector 1 × DC2.0

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power



Power Indicator Green LED
Power Input DC 12V
Power Consumption 18W

Order Information



15.6”1000nits Panel Mount LCD Monitor with Resistive Touch ITD156PMT1HB02
15.6”1000nits Panel Mount LCD Monitor with IR Touch ITD156PMT2HB02
15.6”1000nits Panel Mount LCD Monitor with SAW Touch ITD156PMT3HB02
15.6”1000nits Panel Mount LCD Monitor with PCAP Touch ITD156PMT5HB02
15.6”1000nits Panel Mount LCD Monitor with Tempered Glass ITD156PMG1HB02
15.6”1500nits Panel Mount LCD Monitor with Resistive Touch ITD156PMT1HB01
15.6”1500nits Panel Mount LCD Monitor with IR Touch ITD156PMT2HB01
15.6”1500nits Panel Mount LCD Monitor with SAW Touch ITD156PMT3HB01
15.6”1500nits Panel Mount LCD Monitor with PCAP Touch ITD156PMT5HB01
15.6”1500nits Panel Mount LCD Monitor with Tempered Glass ITD156PMG1HB01




ITD’s high bright sunlight readable LCD monitor displays with LED Enhanced displays have a dimming ratio of 200:1, meaning that the luminance can be adjusted from 100% down to 0.5%. Dimming capabilities are beneficial because lowering the backlight luminance will result in a lengthening of the backlight life. It also lowers the power consumption and the related thermal management issues.














Product Display:

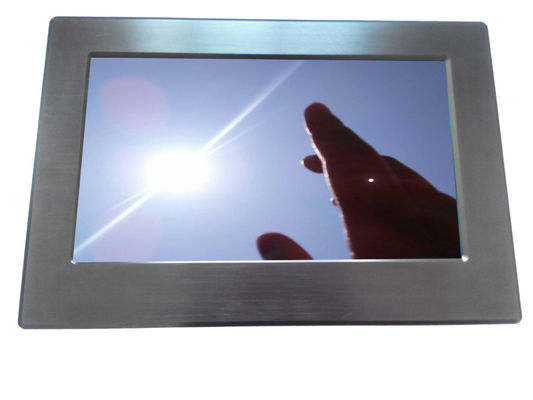

Widescreen 15.6" Sunlight Readable LCD Monitor Panel Mount View Angels







Widescreen 15.6" Sunlight Readable LCD Monitor Panel Mount View Angels







Application:



Widescreen 15.6" Sunlight Readable LCD Monitor Panel Mount View Angels
