High Efficiency Open Frame LCD Monitor 1920*1080 For Kiosks Vending Machines

China High Efficiency Open Frame LCD Monitor 1920*1080 For Kiosks Vending Machines supplier
High Efficiency Open Frame LCD Monitor 1920*1080 For Kiosks Vending Machines supplier High Efficiency Open Frame LCD Monitor 1920*1080 For Kiosks Vending Machines supplier

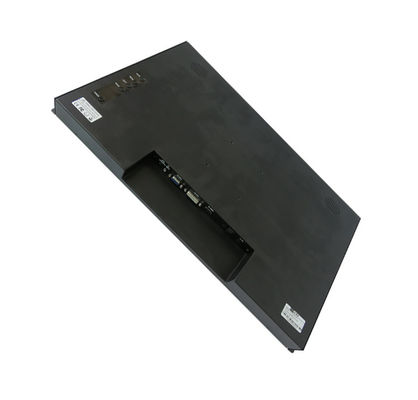

Large Image :  High Efficiency Open Frame LCD Monitor 1920*1080 For Kiosks Vending Machines

Product Details:

Place of Origin: China
Brand Name: ITD
Certification: CE, FCC, RoHS
Model Number: ITD24OFN1M1

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: TBA
Packaging Details: 1-5pcs/CTN, Safe, Firm
Delivery Time: 5-15 Business Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Housing Material: Steel Chassis Color: Black Or Silver
Housing Type: Open Frame Mount, VESA Mounting MTBF: 50000Hours
Resolution: 1920*1080 Aspect Ratio: 16:9
View Angels: 89/89/89/89 Brightness: 250nits

24 inch industrial open frame LCD touchscreen monitor with DVI,VGA,HDMI input ,touchscreen optional



ITD Open Frame LCD Monitor with the slim profile packaging provides an excellent solution for building into kiosks, consoles, machines and control panels. If you cannot find an off the shelf solution contact us today about designing a custom solution to fit your exact needs.



BENEFITES

- Exceptional quality and highly engineered industrial monitors

- Delivers drift-free operation with lifetime of 35 million finger touches

- All steel construction designed for harsh and industrial environments

- Easy-to-install console and Open Frame chassis-mount display

- Multiple mounting options (100mm VESA mount and side brackets)

- Accuracy in high-use applications



Open Frame LCD Monitor



Model Name ITD24OFN1M1
IP Rating N/A

LCD Panel



Screen Diagonal (Inch/cm) 24”
Display Active Screen Size (mm) 531.36(H) ×298.89(V)
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 250nits
Contrast Ratio 1000:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime

Touch Panel



Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Input / Output



Video Input 1 × VGA
1 × DVI-I
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB
Power Connector 1 × DC2.0

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power



Power Indicator Green LED
Power Input DC 12V
Power Consumption 42W

Order Information



24”Open Frame LCD Monitor with Resistive Touch ITD24OFT1M1
24”Open Frame LCD Monitor with IR Touch ITD24OFT2M1
24”Open Frame LCD Monitor with SAW Touch ITD24OFT3M1
24”Open Frame LCD Monitor with PCAP Touch ITD24OFT5M1
24”Open Frame LCD Monitor with Tempered Glass ITD24OFG1M1









APPLICATION

High Efficiency Open Frame LCD Monitor 1920*1080 For Kiosks Vending Machines



OUR FACTORY

High Efficiency Open Frame LCD Monitor 1920*1080 For Kiosks Vending Machines
