Full HD Industrial Panel PC Touch Screen 1920×1080 Panel Mount Housing Type

  • Full HD Industrial Panel PC Touch Screen 1920×1080 Panel Mount Housing Type
  • Full HD Industrial Panel PC Touch Screen 1920×1080 Panel Mount Housing Type
  • Full HD Industrial Panel PC Touch Screen 1920×1080 Panel Mount Housing Type
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD13PPCG1X**
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU Intel J1900/i3/i5/i7/Android Active Are 293.76(H)×165.24(V) Mm
Housing Type Panel/Embedded Mount, VESA Mounting Resolution 1920×1080
View Angels 85/85/85/85 Brightness 300 Nits
High Light

touch panel computer

,

touch monitor pc
Leave a Message
Product Description

Full HD widescreen 13.3” Flat Bezel panel mount Industrial panel PC





FEATURES



- High speed Giga LAN



- On-board IDE interface



- Supports Intel Celeron CPU up to 2.0 GHz



- Low power consumption and economical solution



- Industry level of durability against dust and powerful jetting IP65 / NEMA 4



Specifications:



Flat Bezel Industrial Panel PC


Model Name ITD13PPCG1X**
IP Rating IP65 Front Panel

PC Systems Options


ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® HD Graphics, Support 1080p Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel


Screen Diagonal (Inch) 13.3”
Display Active Screen Size (cm) 293.76(H)×165.24(V)
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 300
Contrast Ratio 700:1
View Angels 85/85/85/85
Backlight/Backlight Lifetime LED Backlight with 50000Hours’Lifetime

Touch Panel


Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation


Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power


Power Indicator Green LED
Power Input DC 12V
Power Consumption 29.5W

Order Information


13.3”Panel Mount Panel PC with Resistive Touch, J1900 ITD13PPCT1X3J1
13.3”Panel Mount Panel PC with PCAP Touch, J1900 ITD13PPCT5X3J1
13.3”Panel Mount Panel PC with Tempered Glass, J1900 ITD13PPCG1X3J1
13.3”Panel Mount Panel PC with Resistive Touch, i5 ITD13PPCT1X3I5
13.3”Panel Mount Panel PC with PCAP Touch, i5 ITD13PPCT5X3I5
13.3”Panel Mount Panel PC with Tempered Glass, i5 ITD13PPCG1X3I5



The ITD all-in-one Embedded Panel PCs with x86 open platform and preinstalled Windows Embedded operating systems enable fast and economical deployment of improved HMI systems for operator control and monitoring applications. The Celeron J1900 processor was produced by Intel as a high-powered chip that would work in a wide range of thermal conditions, making it a highly desirable solution for industrial control applications.









Product Display:

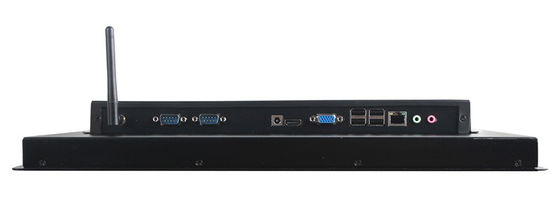

Full HD Industrial Panel PC Touch Screen 1920×1080 Panel Mount Housing Type 0





APPLICATION



Full HD Industrial Panel PC Touch Screen 1920×1080 Panel Mount Housing Type 1
