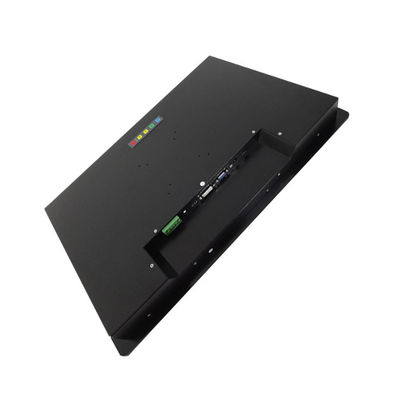

Rugged Industrial Panel Mount Monitor High Definition With IR / PCAP / Resistive Touch

China Rugged Industrial Panel Mount Monitor High Definition With IR / PCAP / Resistive Touch supplier
Rugged Industrial Panel Mount Monitor High Definition With IR / PCAP / Resistive Touch supplier Rugged Industrial Panel Mount Monitor High Definition With IR / PCAP / Resistive Touch supplier

Large Image :  Rugged Industrial Panel Mount Monitor High Definition With IR / PCAP / Resistive Touch

Product Details:

Place of Origin: China
Brand Name: ITD
Certification: CE, FCC, RoHS
Model Number: ITD21PMT101

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: TBA
Packaging Details: 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time: 5-15 Business Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Housing Material: Steel Chassis, Aluminum Front Bezel Name: Panel Mount Lcd Monitor
Housing Type: Panel/Embedded Mount, VESA Mounting Operating Temperature: -10~60℃(-20~70℃ Optional)
Feature: High Definition 24/7/365 Use: Supported
Resolution: 1920*1080 Brightness: 250
View Angles: 85/85/80/80 Aspect Ratio: 16:9

21.5 inch rugged industrial panel mount LCD monitor display with IR touch ,PCAP touch, Resistive touch optional



ITD industrial grade displays are ideally suited for environments where dust, dirt, moisture, splashing water, hose directed spray, and various other caustic contaminants like oil, chemicals, etc. are commonplace.These panel mount NEMA 4 LCD monitors can be configured with a number of add-on optional features like Touch Screen, Optical Bonding, Extended Operational Temperature Capabilities, and many more.



BENEFITES

-Superior picture quality, stunning display

-Rugged Panel Mount Design

-NEMA 4X rated for wash-down applications

-High temperature, shock and vibration specs

-Tempered Glass or Touch Screen Window

-High Reliability with field MTBFs greater than 50,000 hours

-1.5-year warranty!



Panel Mount LCD Monitor



Model Name ITD21PMN101
IP Rating N/A

LCD Panel



Screen Diagonal (Inch) 21.5”
Display Active Screen Size (cm) 476.64(H)×268.11(V)
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 250
Contrast Ratio 1000:1
View Angels 85/85/80/80
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel



Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Input / Output



Video Input 1 × VGA
1 × DVI-I
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB
Power Connector 1 × DC2.0

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power



Power Indicator Green LED
Power Input DC 12V
Power Consumption 26.25W

Order Information



21.5”Panel Mount LCD Monitor with Resistive Touch ITD21PMT101
21.5”Panel Mount LCD Monitor with IR Touch ITD21PMT201
21.5”Panel Mount LCD Monitor with SAW Touch ITD21PMT301
21.5”Panel Mount LCD Monitor with PCAP Touch ITD21PMT501
21.5”Panel Mount LCD Monitor with Tempered Glass ITD21PMG101
