8” Flat Bezel All In One Tablet PC PCAP Touch HMI POE GPIO Android Panel Bluetooth

  • 8” Flat Bezel All In One Tablet PC PCAP Touch HMI POE GPIO Android Panel Bluetooth
  • 8” Flat Bezel All In One Tablet PC PCAP Touch HMI POE GPIO Android Panel Bluetooth
  • 8” Flat Bezel All In One Tablet PC PCAP Touch HMI POE GPIO Android Panel Bluetooth
Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD08PPCT5KXE31
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 10-15 work days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Inch 8" CPU ARM Quad Core RK3288,Main CPU Frequency:1.8GHz
GPU Mali-T764 GPU SD RAM 2G; 4G Optional
Flash 8G: 16G/32G/64G/128G Optional OS Android 5.1/6.0
Bluetooth Optional Storage Temperature -20~70℃
High Light

touch panel computer

,

touch monitor pc
Leave a Message
Product Description



8”Flat Bezel PCAP Touch HDMI Android Panel PC table all in one PC


OVERVIEW



ITD New Series multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines Android media player, and Projected Capacitive Touch (PCT or PCAP)Technology in TFT LCD flat panels, with sleek and flat front surface commercial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.


Specifications:



Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 8”/4:3
Active Area/ Pixel Pitch 162.0(W) x 121.5(H)mm/0.2025 × 0.2025mm
Native Resolution/ Colors 800 x 600/ 16.7M
Brightness/ Contrast 250cd/㎡/500:1
Response Time 10ms
Viewing Angle(Typical) 70/70/50/70
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Quad Core RK3288,Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 5.1/6.0; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG; 4 × COM;

1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);
Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 8”Flat Bezel Android Panel PC with PCAP Touch/ITD08PPCT5KXE31
8”Flat Bezel Android Panel PC with Resistive Touch/ITD08PPCT1KXE31
8”Flat Bezel Android Panel PC with Tempered Glass/ITD08PPCG1XE31



 FEATURES

• Centralized server controls content distribution;

• Combined hardware and software solution for fast, reliable delivery of digital signage content and continuous operation;

• Easy WIFI network system installation without the need for extra IT, firewall or security configurations;

• Simple content scheduling and updating for each display;

• Restart and update digital signage players remotely;

• Create and update separate schedules for each display, al owing for targeted ads at each terminal or different locations;

• Deliver rich media including: Multiple video and audio formats, RSS feeds and image slide shows;

• Transfer schedules and contents to one or more displays;

• Control, monitor and design screen layouts remotely by the admin software;

• Support Multi-zone terminal display and flexible screen layout;

• Local review of multi-zone display layout once the content is stored in the server PC;

• Manage daily power on/off time for any display or group of displays;

• Deliver high definition image content;

• Content plays automatically upon set up of schedule;

• Display live news, weather, traffic reports, emergency announcements and many other notices;

• Anytime insert emergent video file;

• Remotely report system utilization and memory usage;

• System automatically notifies administrator of any malfunction;

• Custom-features development service available from our professional software team;

• Daily, monthly display content recording;

• Possible to integrate with the any existing management system.

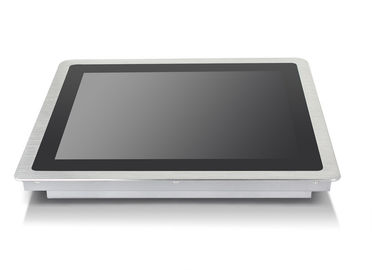

Product Display:





8"flat panel mount pc
8"panel mount flat panel PC
8” Flat Bezel All In One Tablet PC PCAP Touch HMI POE GPIO Android Panel Bluetooth 2
