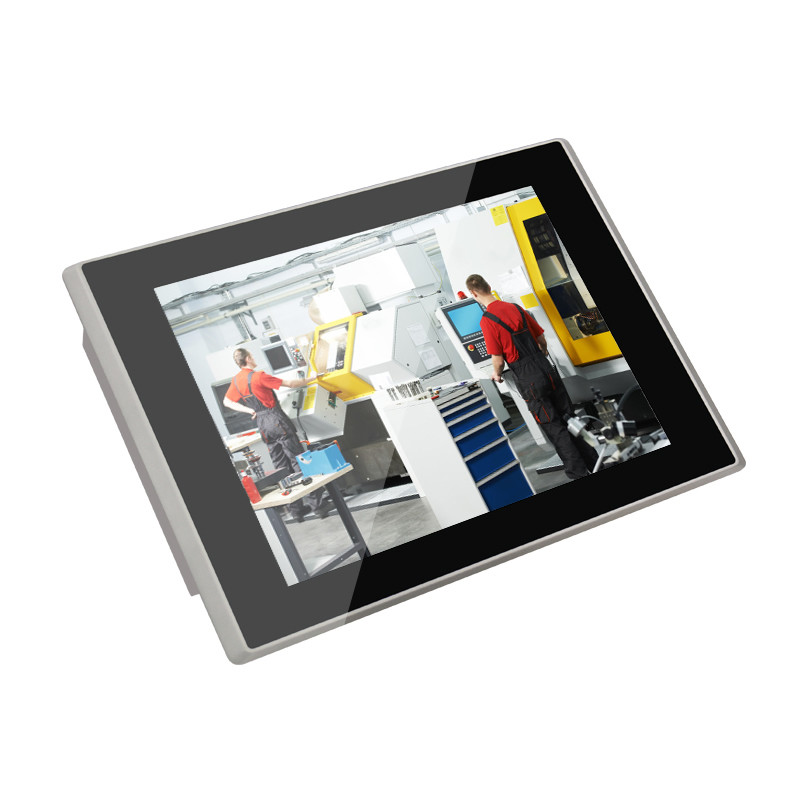

1000nits 1024x768 Industrial Hmi Touch Panel VESA With GPIO Windows
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD10PPCTxB-xxxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 800x600 Or 1024x768 | Brightness | 350 ,1000nits Optional |
|---|---|---|---|
| Processor | Intel J1900, Intel I3/i5/i7 | Touch Panel | Capacitive/resistive |

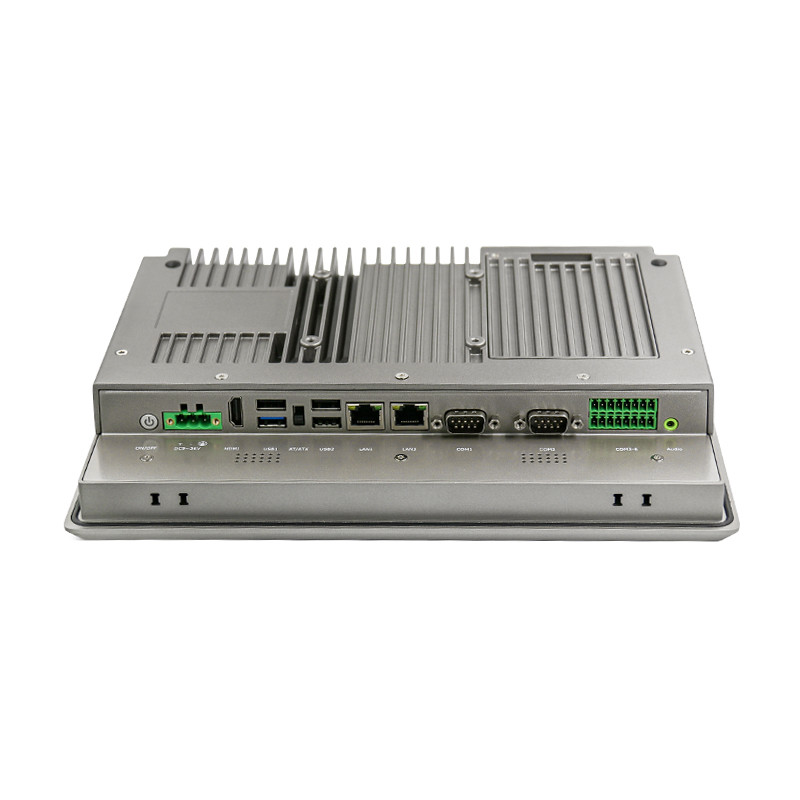

| Mounting Method | Panel Mounted,VESA | I/O | USB, COM, HDMI, Audio, LAN, GPIO |
| Operating Temperature | -20~60℃ | Humidity | 10%~90% Non Condensing |
| Material | Aluminum Housing, HeatSink | Warranty | 2 Years |
| MTBF | 50000hours | ||
| High Light | 1000nits Industrial Hmi Touch Panel,1024x768 Industrial Hmi Touch Panel,VESA Panel Pc Touch Screen |
||
Product Description
10 panel pc industrial hmi touch panel with GPIO Windows CE
Features
- Onboard Intel Celeron J1900/4th/6th/7th/8th Gen.Core i3/i5/i7 CPU
- Onboard DDR3 4GB Memory / Optional SODIMM SKU
- LCD+HDMI Output, Support Dual view/Simultaneous display
- Fanless Operation, Super Slim design
- IP65 Front Panel
- Wide DC Support 9 ~ 36V
- GPIO Port
- All Aluminum Housing with Heatsink
- Edge to edge design, flat surface, easy-to-clean
- Embedded Mounting and VESA Mounting
- Anti-Shock and Anti Vibration
Applications
- Automation
- Transportation&Vehicle
- Oil&Gas
- Medical
- IoT&AI
- HMI
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 10.4”/4:3 | |
| Active Area/ Pixel Pitch | 211.2(W) x 158.4(H)mm/0.264 × 0.264mm | |
| Native Resolution/ Colors | 800 x 600 (1024 x 768 optional)/ 262K/16.2M | |
| Brightness/ Contrast | 1000cd/㎡ (1500cd/㎡ optional)/ 700:1 | |
| Response Time/ Viewing Angle(Typical) | 30ms/70/70/60/70 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage |
8GB: 16GB/32GB/64GB Optional
|
1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| I/O |
1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB |
3xUSB2.0, 1xUSB3.0, 1xUSB 2.0 dongle; 2xDB-0 COM1&COM 2, RS232/422/485, 2x3-Wire COM3&COM 4 RS232/485 with terminal block, 1xAudio Line-out, 2x8 1W Audio AMP out 1x Remote Switch with terminal block , 1x AT/ATX Switch, 1xHDMI, 1x14bit GPIO |
3xUSB2.0, 1xUSB3.0, 1xUSB 2.0 dongle; 2xDB-0 COM1&COM 2, RS232/422/485, 2x3-Wire COM3&COM 4 RS232/485 with terminal block, 1xAudio Line-out, 2x8 1W Audio AMP out 1x Remote Switch with terminal block , 1x AT/ATX Switch, 1xHDMI, 1x14bit GPIO |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 20~50W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% |
