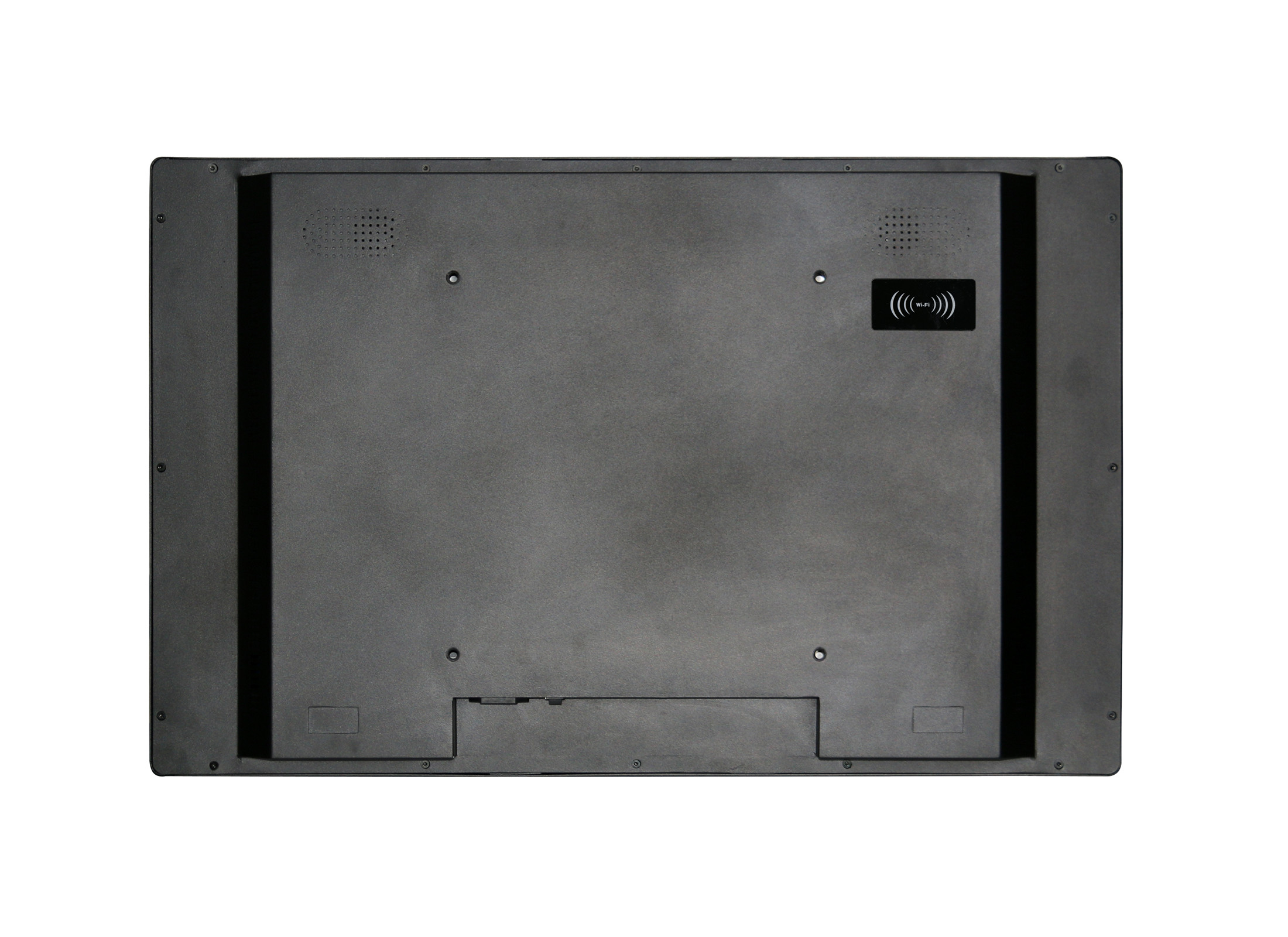

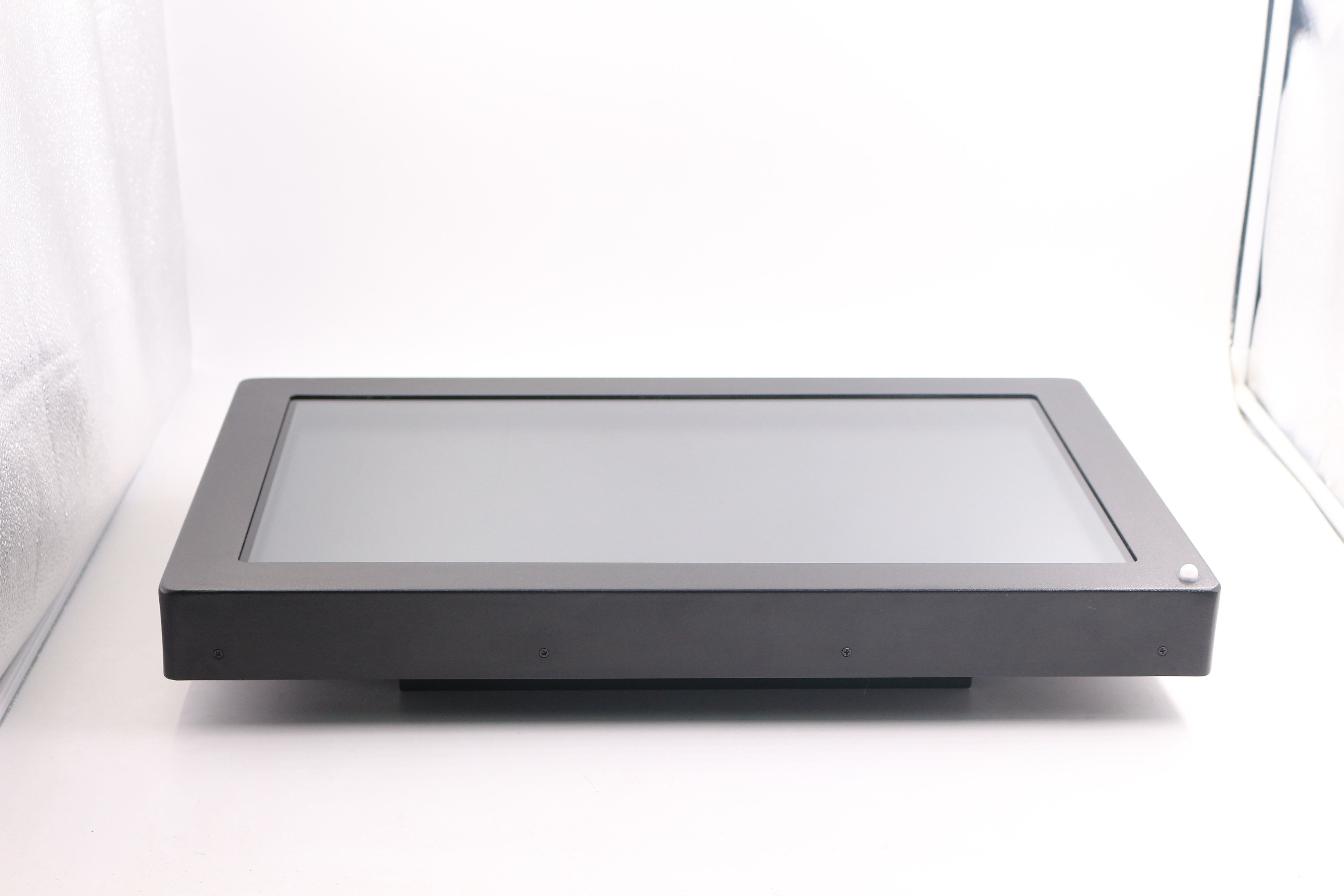

Linux Intel Z8350 AIO Touch Panel PC LCD Computer DC 12V 220W
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITDxxPPCTxLxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | SVGA,XGA, FHD, UHD | Brightness | 400nits |
|---|---|---|---|
| Processor | Intel J1900, Intel I3/i5/i7 | Touch Panel | Pcap,IR, Resistive, SAW |
| Mounting Method | VESA | I/O | USB, COM, HDMI, Audio, LAN |
| Operating Temperature | -10~60℃ | Humidity | 10%~90% Non Condensing |
| Material | Steel Chassis | Warranty | 2 Years |
| MTBF | 50000hours | ||
| High Light | Intel Z8350 Touch Panel PC,AIO Touch Panel PC,220W Touch Panel LCD Computer |
||
Product Description
linux panel pc Intel Z8350 AIO touch panel LCD computer DC 12V
ITD Low cost panel PC series with rugged steel chassis, provides OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Celeron™ Quad Core Processor J1900 2.0 GHz, in industrial-grade LCD flat panels with optional touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions.
Features
▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA
▪ Energy-efficient and fan-less HMI Systems
▪ Low cost solution with high cost-efficient
▪ All steel construction designed for harsh and industrial environments
▪ Flexible, easy configuration and integration
▪ CE, FCC, RoHS Compliance
Applications
- Automation
- Transportation&Vehicle
- Digital Signage
- Medical
- IoT&AI
- HMI
- Banking
- Kiosks
| Model | ITD10PPCN1LJ | ITD12PPCN1LJ | ITD15PPCN1LJ | ITD156PPCN1LJ | ITD17PPCN1LJ | ||
| Size | 10.4” (4:3) | 12.1” (4:3) | 15” (4:3) | 15.6” (16:9) | 17” (4:3) | ||
| Active Area | 211.2(W) x 158.4(H) | 246.0(H) x 184.5(V) | 304.128(H)x 228.096(V) | 246.0(H) x 184.5(V) | 337.920(H) x 270.336(V) | ||
| Contrast | 500:1 | 500:1 | 700:1 | 700:1 | 1000:1 | ||
| Resolution | 800 x 600 or 1024 x 768 | 800 x 600 or 1024 x 768 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | ||
| Brightness | 350nits | 350nits | 250nits | 300nits | 250nits | ||
| Viewing Angles | 70/70/60/70 | 70/70/60/70 | 80/80/60/70 | 89/89/89/89 | 85/85/80/80 | ||
| Backlight | LED | LED | LED | LED | LED | ||
| Model | ITD173PPCN1LJ | ITD18PPCN1LJ | ITD19PPCN1LJ | ITD21PPCN1LJ | ITD24PPCN1LJ | ||
| Size | 17.3” (16:9) | 18.5” (16:9) | 19” (4:3) | 21.5” (16:9) | 24” (16:9) | ||
| Active Area | 381.888(H) x 214.812(V) | 409.8(H) x 230.4(V) | 376.32(H) x 301.06(V) | 476.64(H) x 248.25(V) | 531.36(H) x 298.89(V) | ||
| Contrast | 400:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | ||
| Resolution | 1920 x 1080 | 1366 x 768 | 1280 x 1024 | 1920 x 1080 | 1920 x 1080 | ||
| Brightness | 300nits | 250nits | 250nits | 250nits | 300nits | ||
| Viewing Angles | 70/70/60/60 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 | 89/89/89/89 | ||
| Backlight | LED | LED | LED | LED | LED | ||
| Model | ITD27PPCN1LJ | ITD32PPCN1LJ | ITD42PPCN1LJ | ITD55PPCN1LJ | ITD65PPCN1LJ | ||
| Size | 27” (16:9) | 32” (16:9) | 42”/43” (16:9) | 55” (16:9) | 65” (16:9) | ||
| Active Area | 597.6(H)x 336.15(V) | 698.4(H) x 392.85(V) | 930.24(H) x 523.26(V) | 1213.6(H) x 684.4(V) | 1428.48(W) × 803.52(H) | ||
| Contrast | 1000:1 | 1000:1 | 1200:1 | 3000:1 | 4000:1 | ||
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | ||
| Brightness | 300nits | 350nits | 400nits | 400nits | 400nits | ||
| Viewing Angles | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | ||
| Backlight | LED | LED | LED | LED | LED | ||
| SPECIFICATION | |||||||
| System | CPU | Intel® Celeron J1900 2.0GHz Processor | |||||
| BIOS | AMI | ||||||
| Chipset | Intel Bay Trail SoC | ||||||
| Memory | Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB | ||||||
| Graphic Chipset | Intel HD Graphics (By CPU) | ||||||
| Storage | 1 x SATA, 1 x mSATA, Default to 64GB SSD | ||||||
| LAN | 1 x 10/100/1000Mbps Ethernet; Dual LAN optional | ||||||
| Input/Output | Serial Ports | 1 x COM | |||||
| USB Ports | 4 x USB | ||||||
| VGA Port | 1 x VGA Output | ||||||
| HDMI Port | 1x HDMI Output | ||||||
| Audio Card | Line-In/Line-Out/Speaker MIC IN | ||||||
| Power | Input Voltage | External Power Supply DC 12V for 10.1”~24”; Internal Power Supply AC100~240V for 27”~65” | |||||
| Operation/Power Saving | 30-220W | ||||||
| Environment Considerations | Operating Temperature | -10~60℃ (-20~70℃ Optional) | |||||
| Storage Temperature | -20~70℃ | ||||||
| Relative Humidity | 10%~90% (Non-Condensing) | ||||||
| OS Support | Windows 7/ Windows XP/ Windows 8/ Windows 10/Linux | ||||||
| Mounting Method | VESA, Side mounting brackets(Optional) | ||||||
| Order Information | Chassis Panel PC with Resistive Touch/ITD**PPCT1LJ | ||||||
| Chassis Panel PC with IR Touch/ITD**PPCT2LJ | |||||||
| Chassis Panel PC with PCAP Touch/ITD**PPCT5LJ | |||||||
| Chassis Panel PC with Tempered Glass/ITD**PPCG1LJ | |||||||
| Chassis Panel PC with touch foil/ITD**PPCT7LJ | |||||||
| Chassis Panel PC with SAW Touch/ITD**PPCT3LJ | |||||||
