BT5.0 8in Rugged Android Tablet PC Mediatek MT6765 Octa Core WCDMA

  • BT5.0 8in Rugged Android Tablet PC Mediatek MT6765 Octa Core WCDMA
  • BT5.0 8in Rugged Android Tablet PC Mediatek MT6765 Octa Core WCDMA
  • BT5.0 8in Rugged Android Tablet PC Mediatek MT6765 Octa Core WCDMA
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD08PPCT5RM4
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 1920x1200 Brightness 500nits
Processor Mediatek MT6765 Octa-Core 2.3GHz Touch Panel PCAP Touch
Pepherials Integrated NFC Reader I/O SIM Card Slot X1(If 4G Module Added) Micro USB X1; USB2.0 Host X1 Micro HDMI-I Output X1 ∮3.5mm Standard Earphone Jack X1 DC Input X1 Power Key X1 Volume + - X2 Optional
Operating Temperature -20~60℃ Storage Temperature -20~70℃
Material Rugged Aluminum Casing MTBF 50000hours
High Light

BT5.0 Rugged Android Tablet PC

,

8in Rugged Android Tablet PC

,

WCDMA Rugged Touch Screen Pc
Leave a Message
Product Description

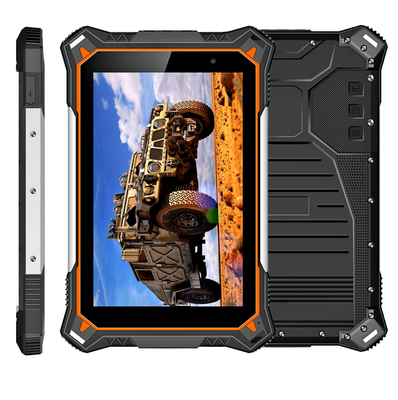

IP68 8 inch rugged Android tablet PC Mediatek MT6765 Octa-Core 2.3GHz 6G RAM



Product Picture



BT5.0 8in Rugged Android Tablet PC Mediatek MT6765 Octa Core WCDMA 0


Product Outlook
Type Details Standard Configuration
Product Form Type Rugged Tablet
Dimension 243×158×23mm
Weight 739g
Device Color Black
LCD Screen Size 8 inch IPS
Resolution 1200 ×1920
Brightness 500nits
TP Touch Panel 5points Capacitive,G+G,Rigidity: above 7H-Anti-Scratch Handwriting optional
Camera Front Front:5.0MP with indicator light
Rear Rear: 13.0MP
Speaker Built-in Embedded 8Ω/0.8W BOX waterproof speakers
MIC Built-in Sensitivity:-42db, output resistance2.2Kω optional
Battery Type Build in Lithium-ion polymer battery
Capacity 3.7V/10000mAh
Endurance 8Hours
System Hardware Configuration
Type Details Description
CPU Type MediaTk MTK6765 Octa Core 2.3GHz
Speed 2.3GHz
GPU Type TBA
RAM DDR3L 6GB
Storage ROM Default to 128GB
Network Connections
Type Details Descriptions
WIFI WIFI Module WIFI 802.11(a/b/g/n) Frequency 2.4G+5GHz Dual Band WIFI
Bluetooth Built-in BT5.0 (BLE)
4G Built-in 2G GSM:B5/B8/B3=850/900/1800MHZ, 3G: WCDMA: B1/B5/B8=2100/850/900MHZ; 4G TDD LTE: B39/B40/BC0=1900/2300/800MHZ; FDD LTE:B1/B3/B5/B8=2100/1800/850/900MHZ
GPS Built-in Support GPS / Glonass/ Beidou
Interface Configuration
Type Details Descriptions
TF Slot Extensive External Memory Support SDHC/SDXC x1 max.:128G
SIM Slot SIM card SIM Card Slot x2
USB Power Charging USB Type C ×1
Earphone Jack Audio Output ∮3.5mm Standard Earphone Jack ×1
DC Jack Power N/A
HDMI Interface Video Output N/A
Power On Press Key Power Key ×1
Volume + - Press Key Power key ×1,Volume + - ×2
Standard Accessories
Type Details Description
Micro USB Cable USB Cable Micro USB connect to USB A
Power Charger Standard Included

Software Configuration
Type Details Description
Operation System OS Version Android 10.0

Ruggedness Level
Type Details Description

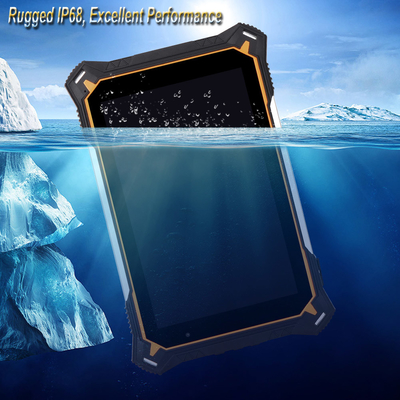

Compliance IP68 Method Name:short time submerging test
Test Device and Test Condition:submerge water box.the size should make the testing sample into submerge box and after then, the distance from sample bottom to water surface at least 1.5m. and distance from sample top side to water surface at least 0.15m.
Testing Time: 30 min. MIL-STD-810G Compliance
Battery UN38.3,MSDS,IEC62133
Reliability
Type Details Descriptions
Product Reliability Drop Height 1.5m composite wood floors, in operation status
Operate Temperature -30 °C to 65°C
Store Temperature ’-40 °C to 70 °C
Humidity Humidity: 95% Non-Condensing
Others
NFC Module Embedded: 13.56MHz, ISO14443A/B Supported
Options
Stylus Pen
