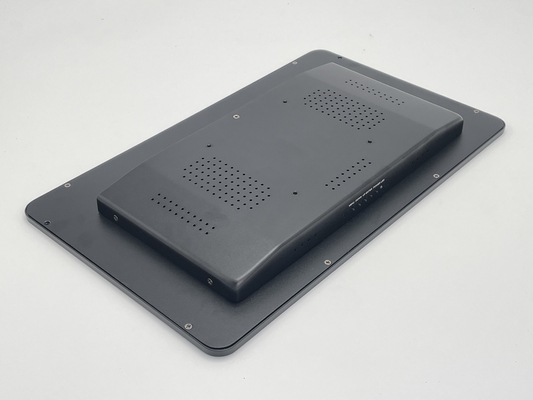

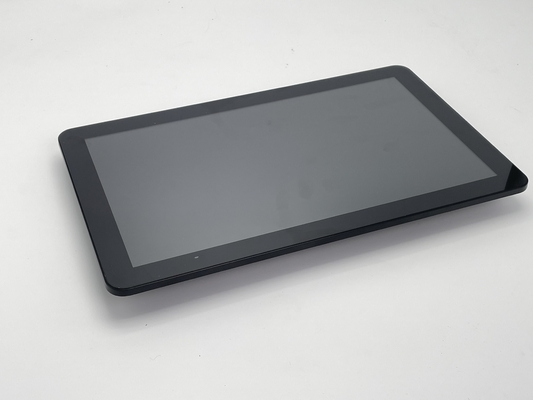

Linux Industrial Touch Screen PC Ubuntu 18.04 IP65 Front PCAP For Automation
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITDxxPPCT5Kxx |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 5-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1024×768~1920×1080 | Brightness | 350nits |
|---|---|---|---|
| Processor | Intel J1900, Intel Z8350, Intel I3/i5/i7 5th, 6th, 7th, 8th Gen. | Touch Panel | Capacitive, PCAP |
| OS | Linux Ubuntu 18.04 | I/O | USB, COM, HDMI, Audio, LAN, DC 12V Input |
| Operating Temperature | -10~60℃ | Storage Temperature | -20~70℃ |
| Material | Aluminum Frame And Steel Back Casing | MTBF | 50000hours |
| High Light | Linux Industrial Touch Screen PC,IP65 Industrial Touch Screen PC,PCAP Industrial Touch Screen Pc |
||
Product Description
linux panel pc industrial touch screen ubuntu 18.04 IP65 front for automation
| Model | ITD101PPCT5KJ | ITD13PPCT5KJ | ITD15PPCT5KJ | ITD156PPCT5KJ | ITD17PPCT5KJ | ||
| Size | 10.1” | 13.3” | 15” | 15.6” | 17” | ||
| Active Area | 216.81(H)x 135.5(V) | 293.42(W) × 164.97(H) | 304.128(H)x 228.096(V) | 246.0(H) x 184.5(V) | 337.920(H) x 270.336(V) | ||
| Contrast | 800:1 | 800:1 | 700:1 |
700:1
|
1000:1 | ||
| Resolution | 1920 x 1200 | 1920 x 1080 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | ||
| Brightness | 300nits | 300nits | 250nits | 300nits | 250nits | ||
| Viewing Angles | 80/80/80/80 | 80/80/80/80 | 80/80/60/70 | 89/89/89/89 | 85/85/80/80 | ||
| Backlight | LED | LED | LED | LED | LED | ||
| Model | ITD173PPCT5KJ | ITD18PPCT5KJ | ITD19PPCT5KJ | ITD21PPCT5KJ | ITD24PPCT5KJ | ||
| Size | 17.3” | 18.5” | 19” | 21.5” | 24” | ||
| Active Area | 381.888(H) x 214.812(V) | 409.8(H) x 230.4(V) | 376.32(H) x 301.06(V) | 476.64(H) x 248.25(V) | 531.36(H) x 298.89(V) | ||
| Contrast | 400:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | ||
| Resolution | 1920 x 1080 | 1366 x 768 | 1280 x 1024 | 1920 x 1080 | 1920 x 1080 | ||
| Brightness | 300nits | 250nits | 250nits | 250nits | 300nits | ||
| Viewing Angles | 70/70/60/60 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 | 89/89/89/89 | ||
| Backlight | LED | LED | LED | LED | LED | ||
| Model | ITD27PPCT5KJ | ITD32PPCT5KJ | ITD42PPCT5KJ | ITD55PPCT5KJ | ITD65PPCT5KJ | ||
| Size | 27” | 32” | 42”/43” | 55” | 65” | ||
| Active Area | 597.6(H)x 336.15(V) | 698.4(H) x 392.85(V) | 930.24(H) x 523.26(V) | 1213.6(H) x 684.4(V) | 1428.48(W) × 803.52(H) | ||
| Contrast | 1000:1 | 1000:1 | 1200:1 | 3000:1 | 4000:1 | ||
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | ||
| Brightness | 300nits | 350nits | 400nits | 400nits | 400nits | ||
| Viewing Angles | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | ||
| Backlight | LED | LED | LED | LED | LED | ||
| SPECIFICATION | |||||||
| System | CPU | Intel® Celeron J1900 2.0GHz Processor | |||||
| BIOS | Award BIOS 4/8Mbit SPI Flash ROM | ||||||
| Chipset | Inter Valley View SSA‐Cunit | ||||||
| Memory | 1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | ||||||
| Graphic Chipset | CPU integrated graphics HD and support 1080p | ||||||
| Storage | 64GB SSD or 500GB HDD Max. 512G GB SSD or 1TB HDD | ||||||
| LAN | 1 x 10/100/1000Mbps Ethernet | ||||||
| Input/Output | Serial Ports | 1 x COM | |||||
| USB Ports | 4 x USB | ||||||
| VGA Port | 1 x VGA | ||||||
| HDMI Port | 1x HDMI Port | ||||||
| Audio Card | Line-In/Line-Out/Speaker MIC IN | ||||||
| Power | Input Voltage | External Power Supply DC 12V for 10.1”~24”; Internal Power Supply AC100~240V for 27”~65” | |||||
| Operation/Power Saving | 30-220W | ||||||
| Environment Considerations | Operating Temperature | 0~60℃ | |||||
| Storage Temperature | -20~70℃ | ||||||
| Relative Humidity | 20%~90% | ||||||
| OS Support | Windows 7/ Windows XP/ Windows 8/ Windows 10/Linux | ||||||
| Mounting Method | VESA, Side mounting brackets(optional) | ||||||
| Order Information | Zero-Bezel Panel PC with PCAP Touch/ITD**PPCT5KJ | ||||||
| Zero-Bezel Panel PC with Tempered Glass/ITD**PPCG1KJ | |||||||
