Aluminum Alloy Industrial Panel PC IP68 IP69K Full Waterproof Dustproof
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD19PPCG1IP** |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 working days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J1900/i3/i5/i7/RK3288 | Material | Stainless Steel Housing |
|---|---|---|---|
| Screen Diagonal | 19" | Physical Resolution | 1280X1024 |
| Optional Functions | Web Camera, Speakers, RFID, NFC, Fingerprint, QR Reader, GPS | IP Rating | Full IP65/66/67/68 |
| High Light | Dustproof industrial Panel PC,industrial Panel PC IP68,Aluminum Alloy Waterproof Panel PC |
||
Product Description

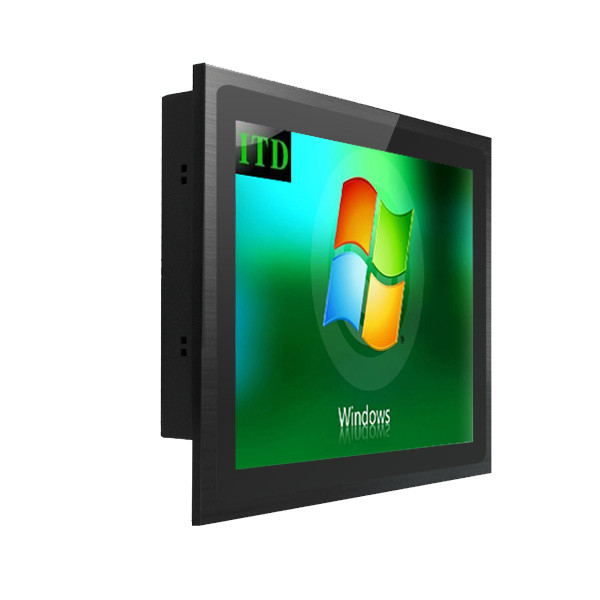

19 inch stainless steel waterproof fully sealed IP66 explosion proof monitor integrated panel PC
FEATURES of 19 inch stainless steel panel PC
•Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
•Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection
•Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
•Flexible, reliable, and ruggedized for open platform HMI/SCADA
•Provides improved power efficiency and reduced consumption
•CE, FCC, RoHS Compliance
Specifications of IP66 waterpoof panel PC
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 19”/4:3 | |
| Active Area/ Pixel Pitch | 376.3(W) x 301.1(H)mm/0.294 × 0.294mm | |
| Native Resolution/ Colors | 1280 x 1024/16.7M | |
| Brightness/ Contrast | 250cd/㎡/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 5ms/85/85/80/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory |
2GB; 4GB Optional
|
Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| Default Waterproof I/O |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 30-50W | |
| Environment Considerations | Operating Temperature | -10~60℃(-20~70℃ optional) |
| Storage Temperature | -20~70℃ | |
| Mounting | VESA Mount, Panel/Embedded Mount optional | |
| Order Information | 19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD19PPCG1IP*E2 | |
| 19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD19PPCT1IP*E2 | ||
| 19” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD19PPCT5IP*E2 | ||
| 19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD19PPCG1IP*J2 | ||
| 19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD19PPCT1IP*J2 | ||
| 19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD19PPCT5IP*J2 | ||
| 19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD19PPCG1IP*I3 | ||
| 19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD19PPCT1IP*I3 | ||
| 19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD19PPCT5IP*I3 | ||
| 19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD19PPCG1IP*I5 | ||
| 19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD19PPCT1IP*I5 | ||
| 19” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD19PPCT5IP*I5 | ||
Product Display
