Small Lcd Computer Monitor 6.5" Touch Screen VGA Input 640x480
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis With Anti-rust | Brightness | 500cd/㎡ |
|---|---|---|---|
| I/O | VGA, HDMI Inputs, USB Port, DC Input | MTBF | 50000Hours |
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Touch Screen | Resistive Touch Screen |
| 24/7/365 Use | Supported | Resolution | 640 X 480 |
| Warranty | 2 Years | Keywords | Small Lcd Computer Monitor |
| High Light | 6.5" Touch Screen Small Lcd Monitor,500cd/m2 Lcd Computer Monitor,VGA Input Small Lcd Monitor |
||
Product Description

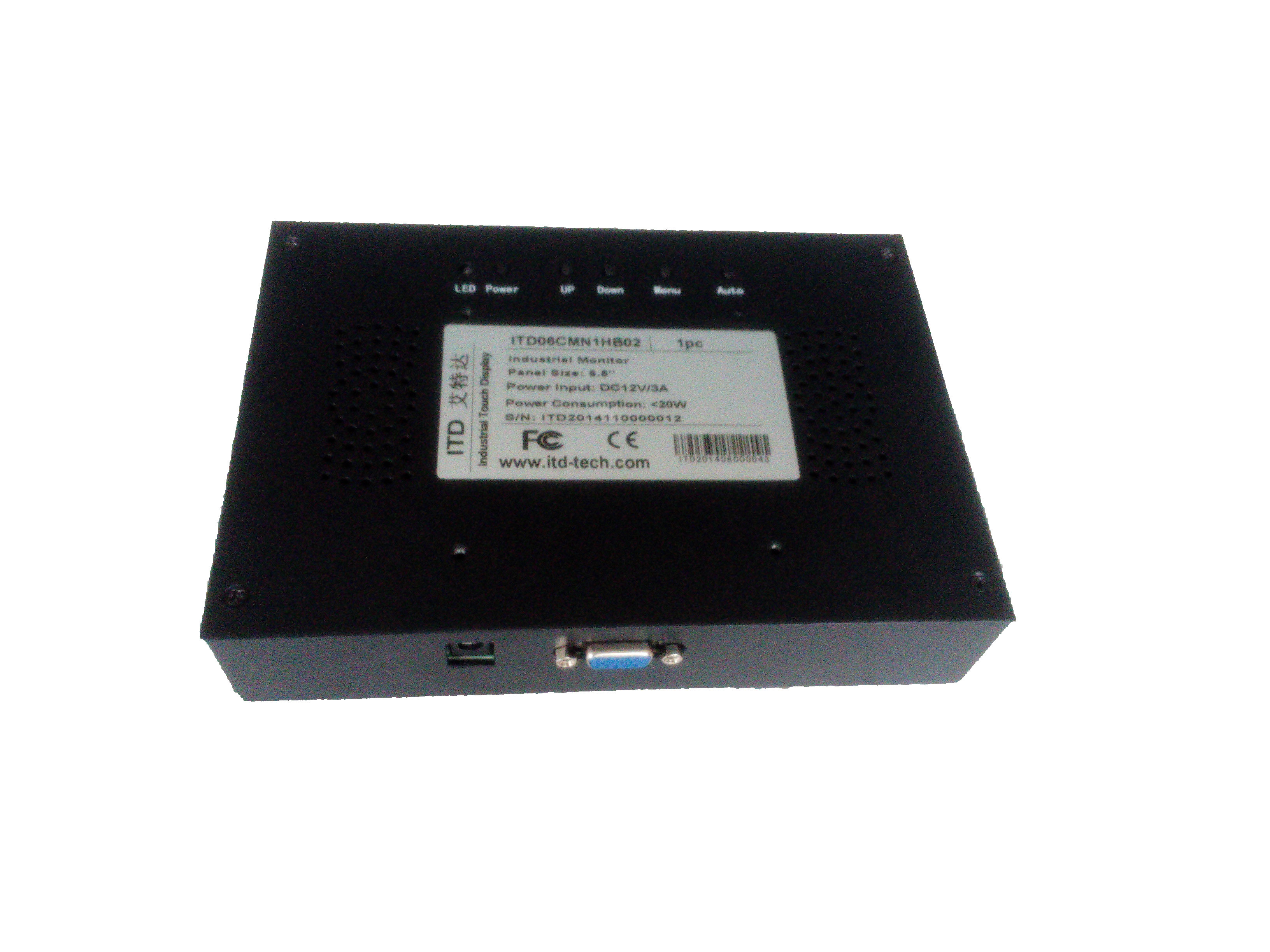

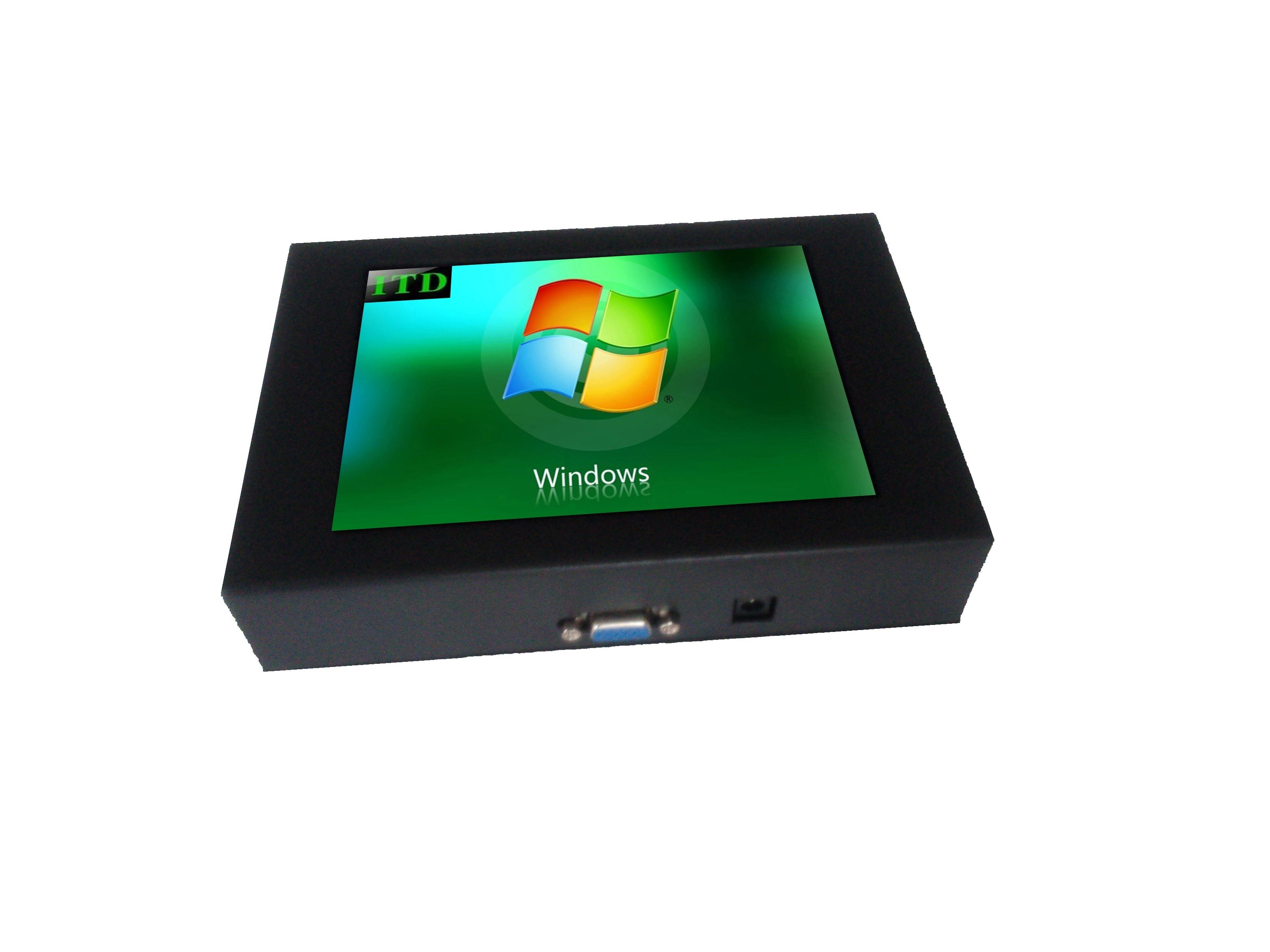

small lcd computer monitor 6.5" touch screen VGA input 640x480
ITD 6.5” ITD06CMN101 chassis LCD monitor has been designed to provide the industrial user with superior picture quality and state-of-the-art features housed in a rugged industrial enclosure with brushed aluminum front bezel, which will assure reliable operation in most factory environments rugged in design and fit perfectly into any rack enclosure. It is space saving for your compact environment rack.
FEATURES OF small lcd computer monitor
•High contrast color TFT LCD display supports resolution up to 640 x 480
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•All steel construction designed for harsh and industrial environments
•VESA standard mounting
•CE, FCC, RoHS Compliance
OPTIONALS OF small lcd computer monitor
•Tempered glass, IP65 sealed front bezel
•Sunlight Readable, light sensor
•Touch sensor technologies: resistive
•Video Signal input: AV,DVI,HDMI
SPECIFICATION OF small lcd computer monitor
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 6.5” / 4:3 | |
| Active Area/Pixel Pitch | 132.48(H)x99.36(V)/ 0.207(H)×0.207(V) | |
| Native Resolution/Colors | 640 x 480/262K/16.2M | |
| Brightness/Contrast | 500nits/600:1 | |
| Response Time | 10ms | |
| Viewing Angle(Typical) | 80/80/70/70 | |
| Light Source | LED with 50000hours’ lifetime | |
| Input signals | VGA | |
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
| Power | External AC-to-12VDC power adapter with universal/Auto-Sensing | |
| Power Consumption | Operation/Power Saving | ≦15W (Max) |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
| Operating Temperature | -20~70℃ | |
| Storage Temperature | -30~70℃ | |
| Order Information | 6.5”chassis monitor with resistive touch/ITD06CMT101 | |
| 6.5” chassis monitor with tempered glass/ITD06CMG101 | ||
