262K IP65 Panel PC Solusions TFT LCD Touch screen Monitor Screen Panel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 1024 X 768 | Panel Type | TFT |
|---|---|---|---|
| Application | Desktop,Laptop,Indoor Advertising Display,store/market/bank/school/ktv,wall Mount/ Embedded/ Desktop | Response Time | 20ms |
| Brightness | 250nits | Warranty | 2 Years |
| High Light | 262K IP65 Panel PC,250nits IP65 Panel PC,262K LCD Touch Monitor |
||
Product Description

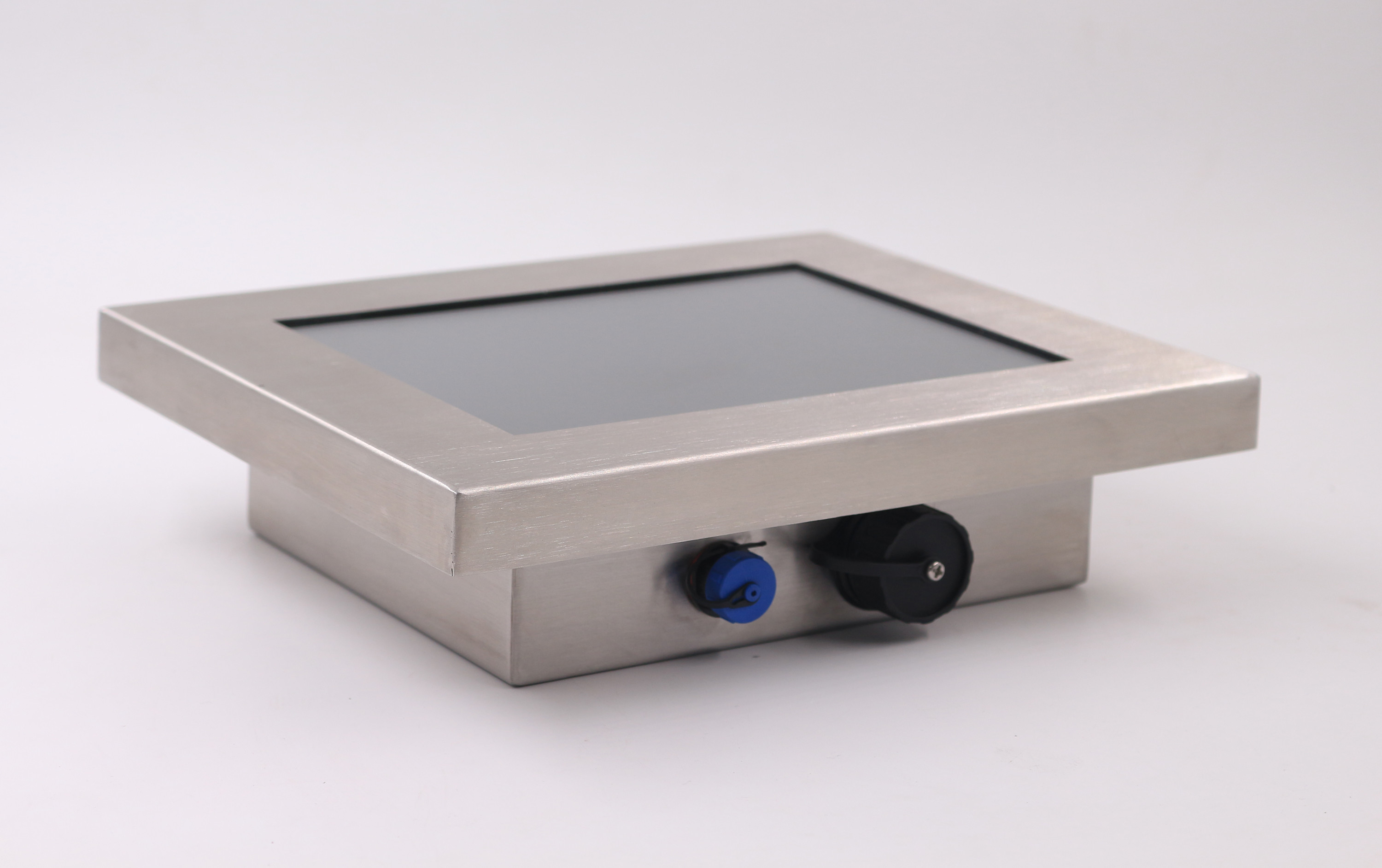

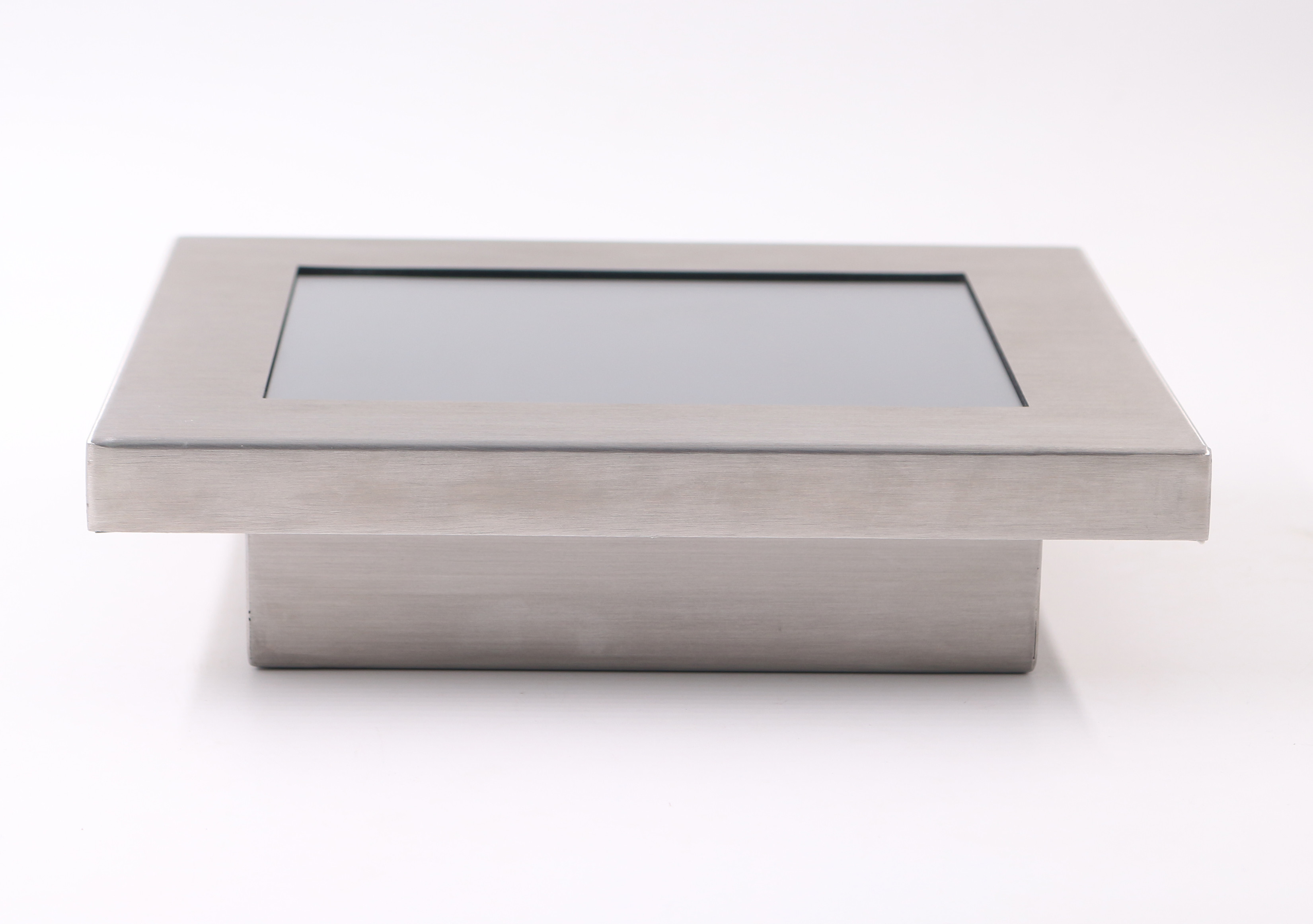

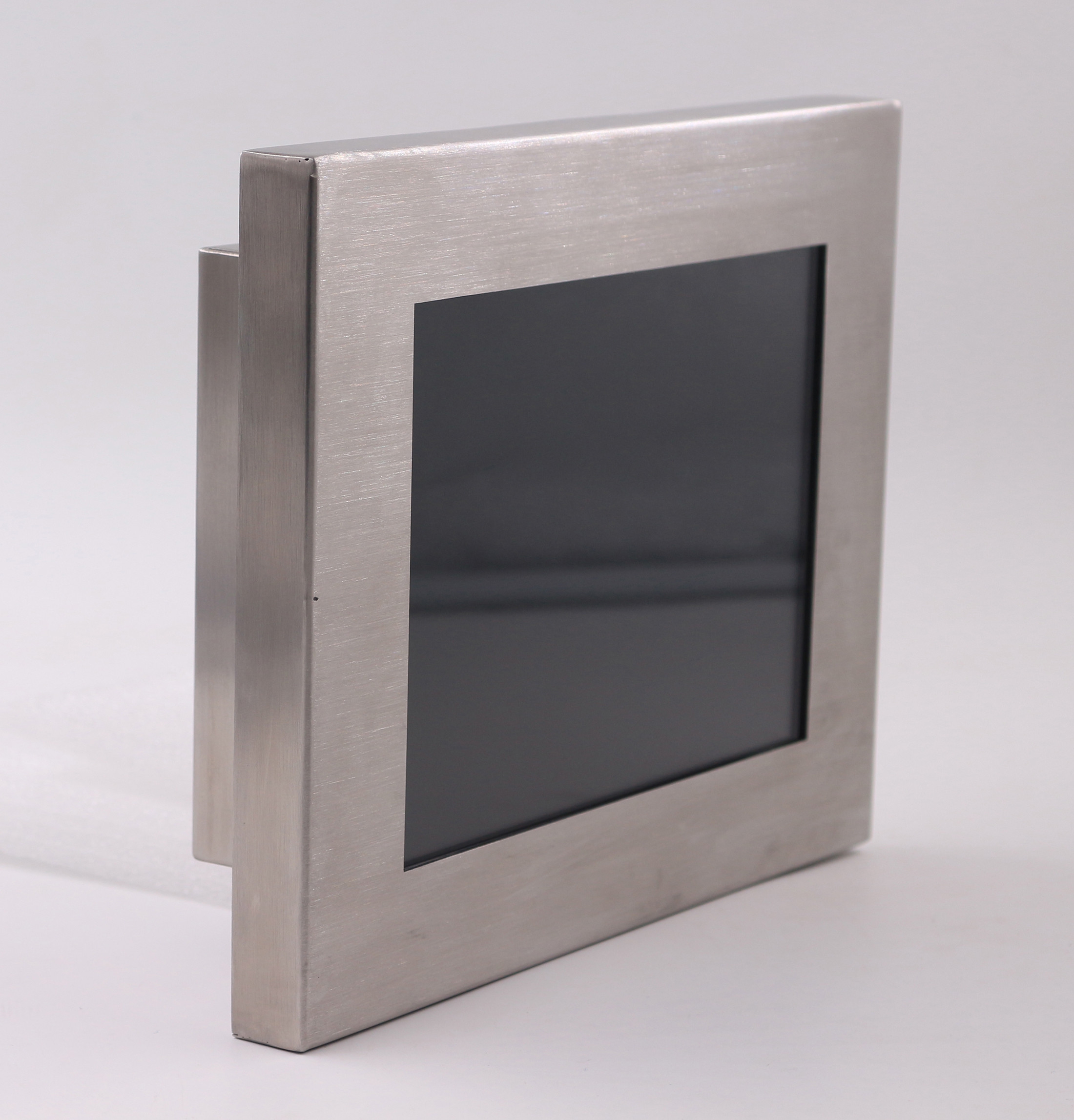

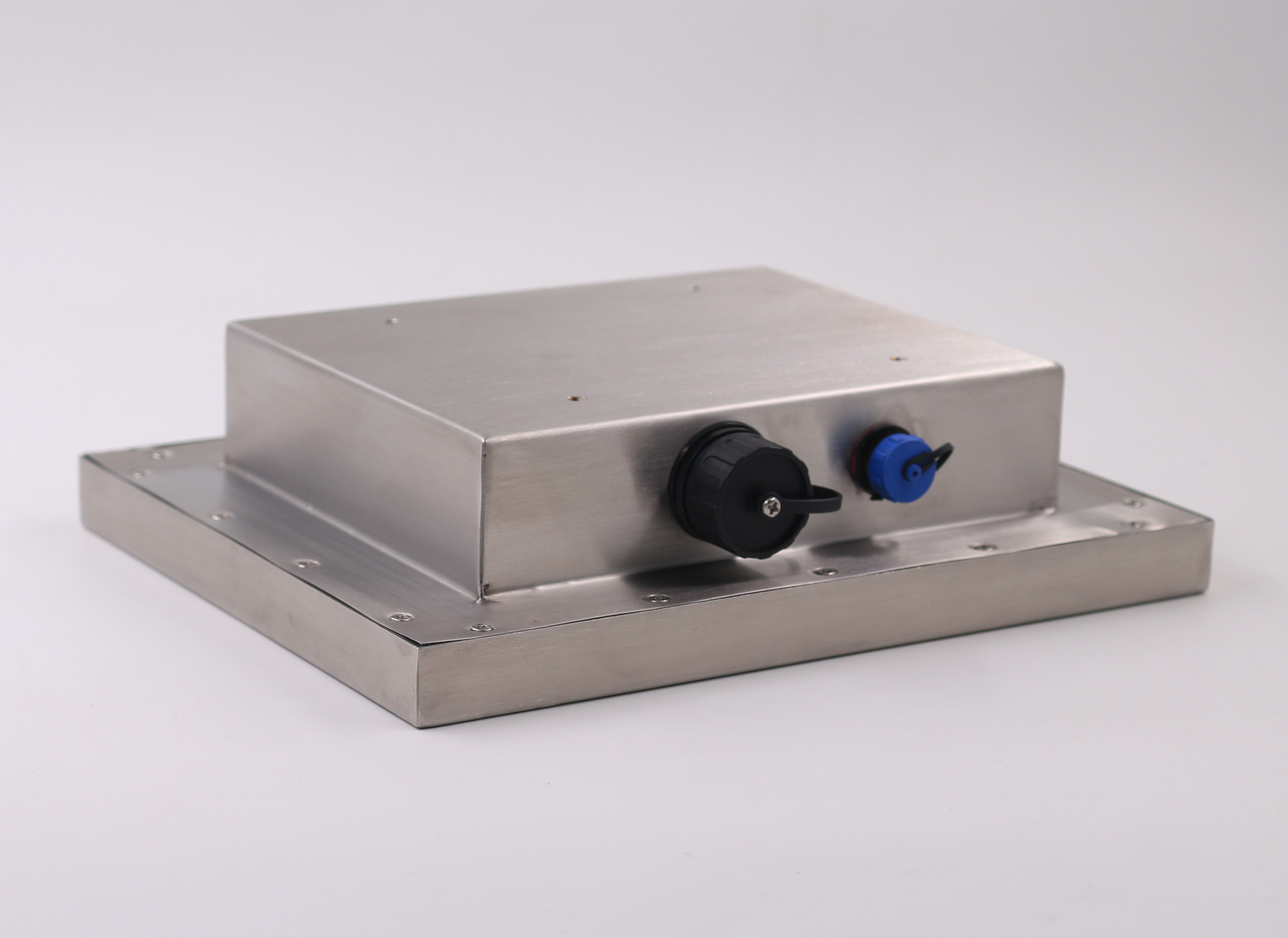

262K IP65 Panel PC Solusions TFT LCD Touch Monitor Screen Panel
Panel pc solusions High-performane LCD Touch monitor screen Panel computers Display Solutions for industries application
ITD rugged industrial rugged high bright full IP65/IP66 LCD display series features industrial-duty fully sealed NEMA 4/IP65 stainless steel chassis, for specially use in hygienic and harsh indoor/outdoor environments. It offers extra protection from extensive corrosive environments with the intrusion of dust, rain, hose directed water, and applications where corrosive materials and caustic cleaners are used. The additional high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.
SPECIFICATION
| Model | ITD06CMG1IPHBS2 | ITD07CMG1IPHBS2 | ITD08CMG1IPHBS2 | ITD10CMG1IPHBS2 |
| Size | 6.5” | 7” | 8.4” | 10.4” |
| Active Area | 132.48(W) x 99.36(H) | 152.4(W) x 91.44(H) | 170.4(W) x 127.8(H) | 211.2(W) x 158.4(H) |
| Pixel Pitch | 0.207mm | 0.1905mm | 0.213mm | 0.264mm |
| Contrast Ratio | 600:1 | 500:1 | 600:1 | 500:1 |
| Resolution | 640 x 480 | 800 x 480 or 1024 x 600 | 800 x 600 | 800 x 600 or 1024 x 768 |
| Brightness | 1000nits | 1000nits | 1000nits | 1000nits |
| Viewing Angles | 80/80/70/70 | 80/80/80/80 | 80/80/80/60 | 70/70/60/70 |
| Response Time | 10ms | 30ms | 30ms | 35ms |
| Colors | 16.2M | 262K | 262K | 262K |
| Backlight | LED | LED | LED | LED |
| Model | ITD12CMG1IPHBS2 | ITD15CMG1IPHBS2 | ITD17CMG1IPHBS2 | ITD19CMG1IPHBS2 |
| Size | 12.1” | 15” | 17” | 19” |
| Active Area | 246.0(H) x 184.5(V) | 304.12(H)x 228.09(V) | 337.92(H) x 270.33(V) | 376.32(H) x 301.06(V) |
| Pixel Pitch | 0.3075mm | 0.297mm | 0.264mm | 0.294mm |
| Contrast Ratio | 700:1 | 700:1 | 1000:1 | 1000:1 |
| Resolution | 800 x 600 or 1024 x 768 | 1024 x 768 | 1280 x 1024 | 1280 x 1024 |
| Brightness | 1000nits | 1000nits | 1000nits | 1000nits |
| Viewing Angles | 70/70/60/70 | 80/80/60/70 | 85/85/80/80 | 85/85/80/80 |
| Response Time | 35ms | 35ms | 5ms | 5ms |
| Colors | 262K | 16.2M | 16.7M | 16.7M |
| Backlight | LED | LED | LED | LED |
| Model | ITD21CMG1IPHBS2 | ITD24CMG1IPHBS2 | ITD27CMG1IPHBS2 | ITD32CMG1IPHBS2 |
| Size | 21.5” | 24” | 27” | 32” |
| Active Area | 476.64(H)x248.25(V) | 531.36(H)x298.89(V) | 597.6(H)x336.15(V) | 698.4(H)x392.85(V) |
| Pixel Pitch | 0.248mm | 0.2768mm | 0.3114mm | 0.3638mm |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 1200:1 |
| Resolution | 1920 x 1080 | 1920x1080 | 1920x1080 | 1920x1080 |
| Brightness | 1000nits | 1000nits | 1000nits | 1000nits |
| Viewing Angles | 85/85/80/80 | 89/89/89/89 | 89/89/89/89 | 89/8/9/89/89 |
| Response Time | 5ms | 5ms | 5ms | 8ms |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M |
| Backlight | LED | LED | LED | LED |
| Model | ITD43CMG1IPHBS2 | ITD49CMG1IPHBS2 | ITD55CMG1IPHBS2 | ITD65CMG1IPHBS2 |
| Size | 43” | 49” | 55” | 65” |
| Active Area | 930.24(H)x523.26(V) | 1073.78mm(W)×604mm(H | 1209.6(H)x680.4(V) | 1428.48(H)x803.52(V) |
| Pixel Pitch | 0.4902mm | 0.55926mm | 0.63mm | 0.744mm |
| Contrast Ratio | 1200:1 | 1100:1 | 1400:1 | 1400:1 |
| Resolution | 1920x1080 | 1920x1080 | 1920 x 1080 | 1920 x 1080 |
| Brightness | 1000nits | 1000nits | 1000nits | 1000nits |
| Viewing Angles | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Response Time | 12ms | 6ms | 8ms | 8ms |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M |
| Backlight | LED | LED | LED | LED |
