21.5inch Flat Bezel Sunlight Readable LCD Monitor For Industries
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screen Size | 21.5'' | LCD Type | 21.5＂Active Matrix TFT-LCD |
|---|---|---|---|
| Warranty | 1 Year For TFT Panels; 2 Years For Others. | Response Time | 5ms |
| Resolution | 1920×1080 @60Hz,75Hz | Brightness | 500nits (High Brightness Optional) |
| View Angles | 89/89/89/89 | Colors | 16.7M |
| Panel Life | 50000Hours | Active Area | 476.64(H) X268.11(V)mm |
| Pixel Pitch | 0.24825×0.24825mm | ||
| High Light | Flat Bezel Sunlight Readable LCD Monitor,21.5inch Sunlight Readable LCD Monitor,21.5inch Touch Screen Monitor |
||
Product Description

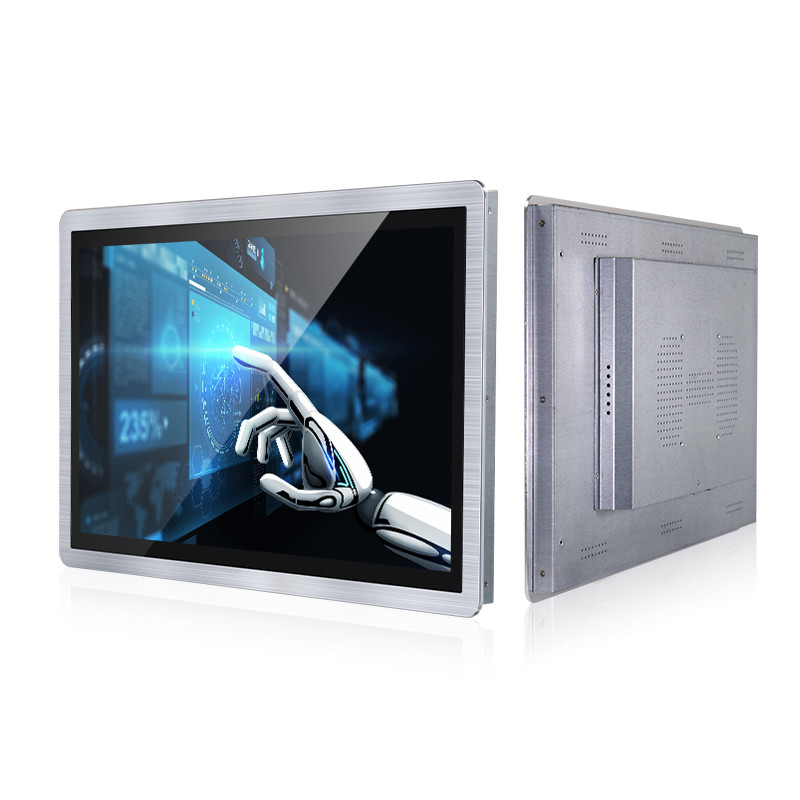

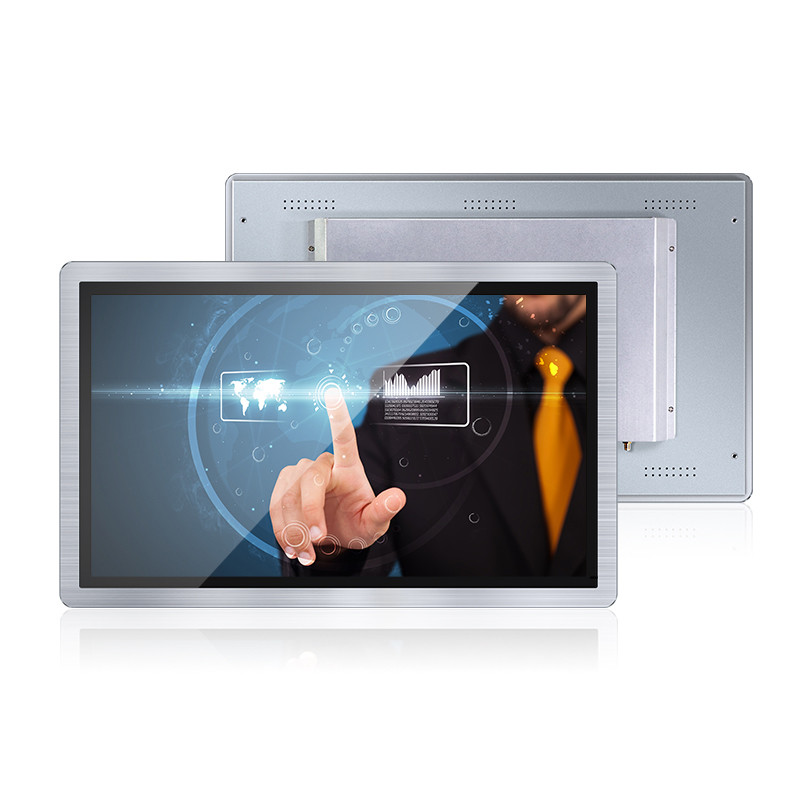

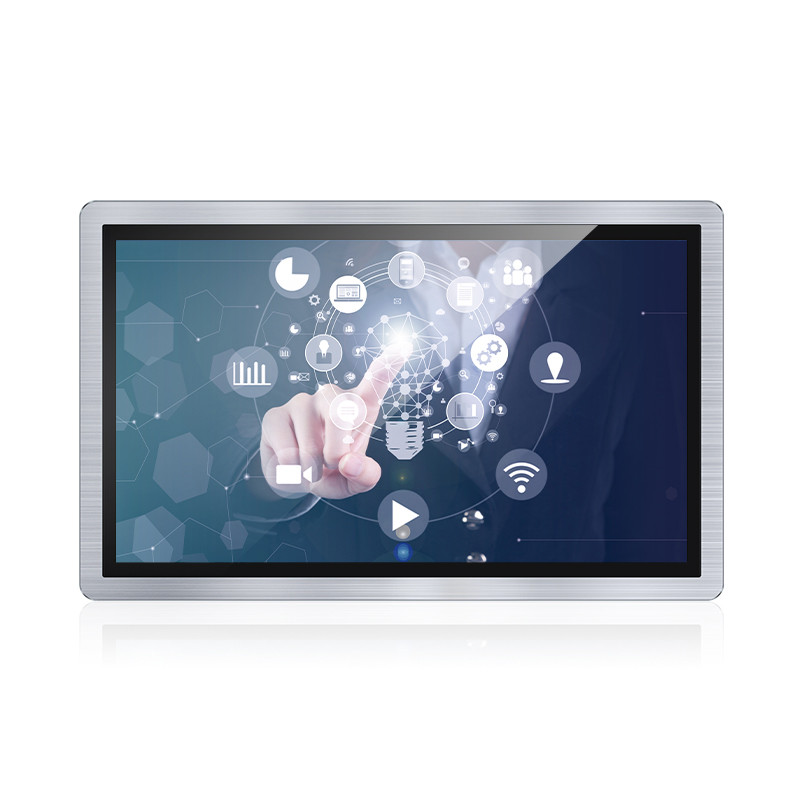

21.5inch Flat Bezel Sunlight Readable LCD Monitor For Industries
21.5” High Bright Flat Bezel High-performane LED Touch monitor screen Panel computers Display Solutions for industries
Typical Application
Industrial Automation
Oil & Gas
Marine
Transport and Ticketing
Banking Automation
Customized Solutions
BASIC PARAMETERS
1. 1 General
| Article | 21.5” High Bright Flat Bezel Panel Mount LCD Monitor |
| IP | IP65(for front panel only) |

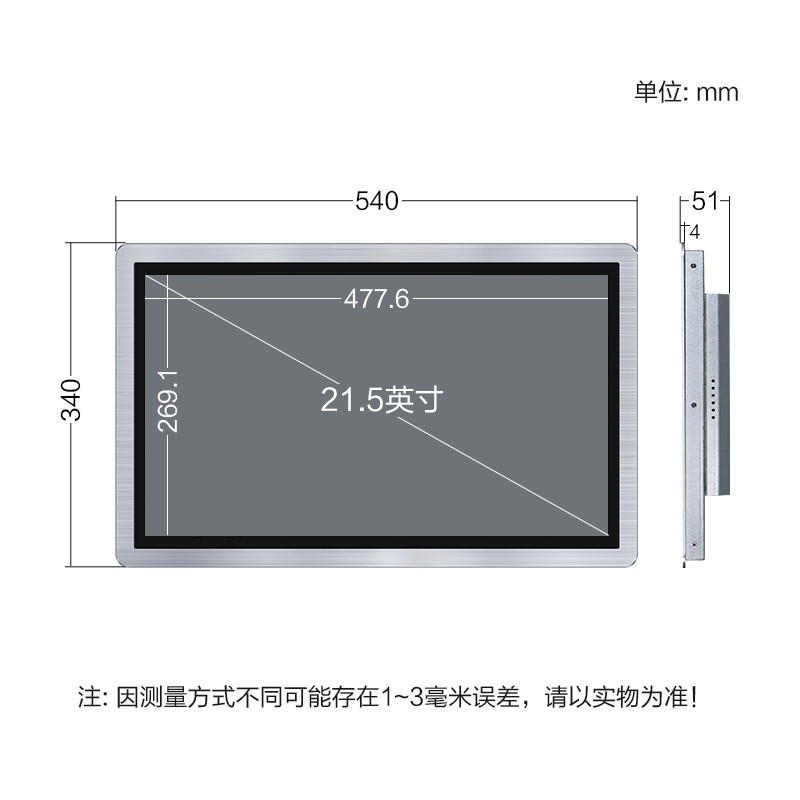

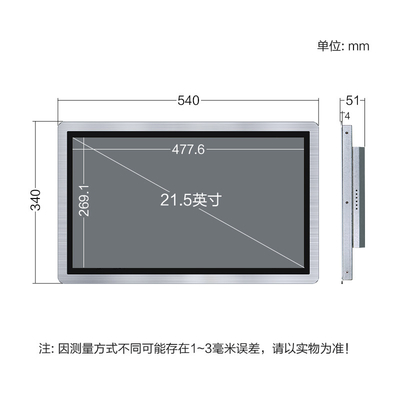

| Cut-Out Dimensions | 541×329mm |
| Aluminum Front Bezel Thickness | 3mm (6mm, 10mm optional) |
| Weight(N.W/G.W) | 10.5Kg / 10.8Kg (Approx.) |
| LCD Type | 21.5＂Active matrix TFT-LCD |
| Video Input | VGA and DVI-I, HDMI, Audio |
| Recommend Resolution | 1920×1080 @60Hz,75Hz |
| OSD controls | Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Input | DC 12V Power Plug; DC 9-36V input optional |
| Power Consumption | 35W |
| Mount Interface |
1)VESA 75×75/100×100mm 2)Panel Mounting via Clamps |
| Regular Warranty | 1 Year for TFT panels; 2 Years for others. |
| Agency Approval | FCC,CE,RoHS Certified |
| Order Information | 21.5” 1000nits Flat Bezel 3mm Panel Mount Monitor with PCAP Touch/ITD21PMT5HBX32 |
| 21.5” 1000nits Flat Bezel 3mm Panel Mount Monitor with Tempered Glass/ITD21PMG1HBX32 | |
| 21.5” 1000nits Flat Bezel 3mm Panel Mount Monitor with Resistive Touch/ITD21PMT1HBX32 | |
| 21.5” 1000nits Flat Bezel 10mm Panel Mount Monitor with PCAP Touch/ITD21PMT5HBX2 | |
| 21.5” 1000nits Flat Bezel 10mm Panel Mount Monitor with Tempered Glass/ITD21PMG1HBX2 | |
| 21.5” 1000nits Flat Bezel 10mm Panel Mount Monitor with Resistive Touch/ITD21PMT1HBX2 | |
| 21.5” 1500nits Flat Bezel 3mm Panel Mount Monitor with PCAP Touch/ITD21PMT5HBX31 | |
| 21.5” 1500nits Flat Bezel 3mm Panel Mount Monitor with Tempered Glass/ITD21PMG1HBX31 | |
| 21.5” 1500nits Flat Bezel 3mm Panel Mount Monitor with Resistive Touch/ITD21PMT1HBX31 | |
| 21.5” 1500nits Flat Bezel 10mm Panel Mount Monitor with PCAP Touch/ITD21PMT5HBX1 | |
| 21.5” 1500nits Flat Bezel 10mm Panel Mount Monitor with Tempered Glass/ITD21PMG1HBX1 | |
| 21.5” 1500nits Flat Bezel 10mm Panel Mount Monitor with Resistive Touch/ITD21PMT1HBX1 |
1. 2 LCD Specification
| Active Area(mm) | 476.64(H) x268.11(V) |
| Resolution | 1920×1080 |
| Pixel Pitch(mm) | 0.24825×0.24825 |
| Nominal Input Voltage VDD | +5V(Typ) |
| Viewing angle (L/R/T/B) | 89°/89°/89°/89° |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 1000 (1500 optional) |
| Response Time(Rising/Falling) | 5ms |
| Support Color | 16.7M |
| Screen Scanning | 60Hz |
| Backlight MTBF(hr) | 50000h |
1.3 Touch Screen Specification
1.3.1 Projected Capacitive Touch Screen
| Type | Projected Capacitive Touch Screen |
| Surface Hardness | 7H |
| Light Transmission | 85%±5% |
| Touch Life Cycle | 50 million times |
| Touch Response time | 5ms |
| Touch System Interface | USB A type (USB B type optional) |
| Operating System Support |
Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above Drivers for Windows CE/XP, Mac, Android |
1.3.1 5 Wires Resistive Touch Screen
| Type | 5 Wires Resistive Touch Screen |
| Surface Hardness | 3H |
| Surface Treatment | Anti-Glare |
| Light Transmission | ≥78% |
| Finger Touch Life | 35 million times |
| Touch Response time | ≤15ms |
| Touch System Interface | USB B type (A type optional) |
| Operating System Support | Drivers for Windows CE/XP/7/8/10,Linux, Mac, Android |
2.4 External AC Power Adapter
| Output | 12V DC/5A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
2.5 Environment
| Operating Temp. | -10～60°C (-20～70°C optional) |
| Storage Temp. | -20～70°C |
| Operating RH: | 10%～90% |
| Storage RH: | 10%～90% |
| Anti-Vibration | 5Hz-500Hz / 1Grms/3 Axis (optional) |
| Anti-Shock | 15G, 15ms Duration (optional) |
