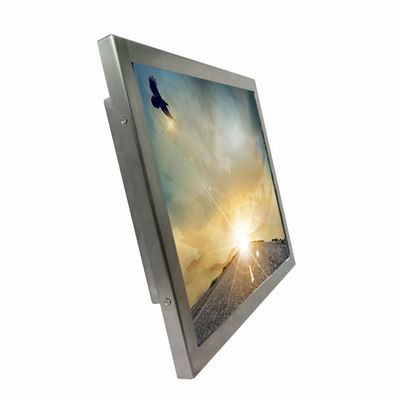

1500nits 12.1” Sun Readable LCD Display Industrial Grade AR AG Coating Treatment

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD12CMT1IPHBS2
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Stainless Steel/Aluminum Alloy Chassis MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Operating Humidity 10%-90% (Non Condensing)
24/7/365 Use Supported Surface Treatment AR Coating Or AG Treatment
High Light

rugged lcd displays

,

rugged display monitors

Leave a Message
Product Description

12.1 inch1500nits SVGA, XGA Rugged stainless steel full IP66/IP67 waterproof touchscreen LCD monitor displays



ITD's ultra harsh-duty heavy industrial grade touch screen Fully Enclosed / Fully Sealed NEMA 4 (IP65) high brightness LCD displays are an ideal HMI solution complete with standard resistive touch or PCAP touch. With its lightweight yet rugged construction and either pre-cabled or bulkhead connectors, these models are easily mounted on walls, stands, arms or other industrial equipment. With optional brackets, it conforms to VESA mounting standards. These small footprint fully sealed LCDs are ideal in a variety of harsh environment manufacturing facilities.



FEATURES

- Sunlight and Daylight Readable

- Touch Screen (PCAP, IR, Resistive optional)

- DC Vehicle/Marine Power Supply Support

- Waterproof All Weather Operation

- VGA and/or HDMI Inputs

- Brightness Control, Light Sensor (optional, 0-100%)

- Composite Inputs Optional(Camera)



Applications for Rugged Touchscreen LCD Monitors

- Food processing plant automation control

- Kitchen application

- Chemical plant or laboratory

- Liquor Factory

- Clinical area / pharmaceutical / medical

- Operating and monitoring in Oil, Gas & Energy industry

- Industrial automation control in slaughtering house

- Railway/Transportation



Full IP65/IP66 High Brightness Touchscreen Monitor




Model Name ITD10CMG1IPHBA1
IP Rating Full IP65/IP66(IP67 optional)

LCD Panel




Screen Diagonal (Inch/cm) 12.1”
Display Active Screen Size (mm) 246.0(H) ×184.5(V)
Aspect Ratio 4:3
Physical Resolution 800×600(1024×768 optional)
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 1000 cd/m²
Contrast Ratio 600:1
View Angels 80/80/70/60
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime

Touch Panel




Touch Options Resistive, PCAP
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Input / Output




Video Input 1 × VGA
N/A
1 × HDMI(Optional)
Audio N/A
Touch Connector 1 × USB(Optional)
Power Connector 1 × DC2.0

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power




Power Indicator N/A
Power Input DC 12V
Power Consumption 18W

Order Information




12.1”1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing ITD12CMT1IPHBA1
12.1”1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing ITD12CMT5IPHBA1
12.1”1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing ITD12CMT1IPHBS1
12.1”1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing ITD12CMT5IPHBS1
12.1”1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing ITD12CMG1IPHBA1
12.1”1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing ITD12CMG1IPHBS1
