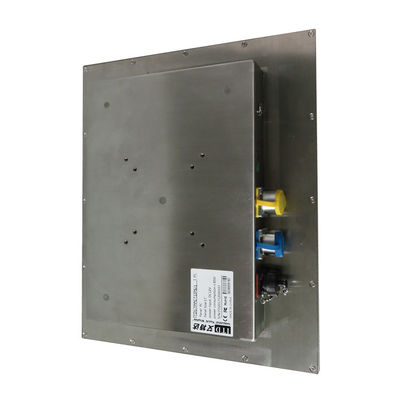

Daylight Readable Industrial Touch Screen Monitor 9.7” Water Resistance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Stainless Steel/Aluminum Alloy Chassis | Color | Silver/Black |
|---|---|---|---|
| Housing Type | VESA Mount | MTBF | 50000Hours |
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Operating Humidity | 10%-90% (Non Condensing) |
| 24/7/365 Use | Supported | Surface Treatment | AR Coating Or AG Treatment |
| Brightness | 400nits | Resolution | 1024*768 |
| Aspect Ratio | 4:3 | ||
| High Light | rugged lcd displays,rugged computer monitor |
||
Product Description
9.7 inch SVGA, XGA Rugged stainless steel full IP66/IP67 waterproof touchscreen LCD monitor displays
ITD rugged full IP66 LCD monitors are environmentally sealed to NEMA 4/4X & IP65 ratings for applications where dirt, dust, moisture and water are present. Our Rugged Industrial LCD products are constructed from solid steel and stainless steel for corrosion resistance applications.
FEATURES
- Sunlight and Daylight Readable
- Touch Screen (PCAP, IR, Resistive optional)
- DC Vehicle/Marine Power Supply Support
- Waterproof All Weather Operation
- VGA and/or HDMI Inputs
- Brightness Control, Light Sensor (optional, 0-100%)
- Composite Inputs Optional(Camera)
Applications for Rugged Touchscreen LCD Monitors
- Food processing plant automation control
- Kitchen application
- Chemical plant or laboratory
- Liquor Factory
- Clinical area / pharmaceutical / medical
- Operating and monitoring in Oil, Gas & Energy industry
- Industrial automation control in slaughtering house
- Railway/Transportation
|
Full IP65/IP66 Touchscreen Monitor
|
|
| Model Name | ITD09CMG1IP*1 |
| IP Rating | Full IP65/IP66(IP67 optional) |
|
LCD Panel
|
|
| Screen Diagonal (Inch/cm) | 9.7” |
| Display Active Screen Size (mm) | 196.608(H) x 147.456(V)mm |
| Aspect Ratio | 4:3 |
| Physical Resolution | 1024 x 768 |
| Maximum Resolution Supported | 1920 x 1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 400nits |
| Contrast Ratio | 600:1 |
| View Angels | 80/80/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime |
|
Touch Panel
|
|
| Touch Options | Resistive, PCAP |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
|
Input / Output
|
|
| Video Input | 1 × VGA |
| N/A | |
| 1 × HDMI(Optional) | |
| Audio | N/A |
| Touch Connector | 1 × USB(Optional) |
| Power Connector | 1 × DC2.0 |
|
Operation
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | N/A |
| Power Input | DC 12V |
| Power Consumption | 9W |
|
Order Information
|
|
| 9.7”Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing | ITD09CMT1IPA1 |
| 9.7”Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing | ITD09CMT5IPA1 |
| 9.7”Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing | ITD09CMT1IPS1 |
| 9.7”Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing | ITD09CMT5IPS1 |
| 9.7”Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing | ITD09CMG1IPA1 |
| 9.7”Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing | ITD09CMG1IPS1 |
