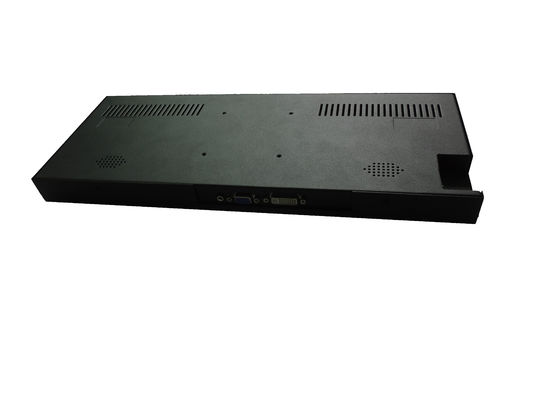

Computer Screen Stretched Monitor Display , 8" Resized Stretched LCD Monitor

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD08SDN101
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Steel Chassis Color Black Or Silver
Housing Type Open Frame Mount, VESA Mounting MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Operating Humidity 10%-90% (Non Condensing)
24/7/365 Use Supported Resolution 1280*400
Aspect Ratio 16:5
High Light

stretched lcd display

,

ultra wide stretched displays

Leave a Message
Product Description

8" resized ultra wide bar type stretched LCD monitor display with anti-shock, anti-vibration, 500nits, 1000nits optional





Stretched Bar LCD Display



Model Name ITD08SDN1**
IP Rating Optional

Configuration Options



Single LCD Monitor Single Media Player ARM Android Based RK3288(RK3368 optional)
1×VGA Input Chipset: MSTAR CPU: Quad-Core Cortex-A17 1.8GHz
1×DVI Input Video Formats Supported: MP4,AVI,DAT,MPG,RM,RMVB,AVC,FLV Chipset: N/A
1×HDMI Input Memory: 1G/2G
1×DC 24V Input

Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE

File Formats Supported: FAT, FAT32, NTFS

HDD/SSD: 8G
  1×HDMI


Picture Formats Supported: JPEG, BMP, GIF, PNG

1 ×USB 2.0, 1×CF Card Slot, 1×SD Card Slot

1×USB 2.0
  1×mini-SD slot
    1×LAN
  1×Audio Out 1×Audio Out
  Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel



Screen Diagonal (Inch) 8”
Display Active Screen Size (cm) 21.38(H)×7.8(V)
Aspect Ratio 16:5
Physical Resolution 1280×400
Maximum Resolution Supported 1920×540
Colors 262K
Brightness (cd/m²) 500
Contrast Ratio 500:1
View Angels 80/80/70/70
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel



Touch Options

Tempered Glass

PCAP (Customized)

Optional

Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power /Speakers



Power Indicator Green LED
Power Input DC 12 V

Power Consumption

Speakers

10W

Optional

Order Information



8”Stretched LCD Monitor ITD08SDN101
8”Stretched LCD with Single Media Player ITD08SDN1A1
8”Stretched LCD with Android Media Player ITD08SDN1E1







ITD stretched bar-type LCD displays with ultra-wide aspect ratio is perfect for catching people’s attention that’s a perfect alternative of traditional LED displays, Take solace in ITD’s Bar LCD Monitor when integrating it into a display as it will always captivate audiences and work to provide as an informative display for any application. The stretched LCD display is a powerful tool for advertising or as an information display that can be with optional single SD card and USB port, ARM based player and single monitor with VGA, DVI, HDMI inputs integrated. ITD stretched bar type LCD display comes with standard 500nits or 1000nits that can be used in indoor/outdoor projects that include, but are not limited to digital signage, restaurant displays, airport terminal signs, public transportation or places that would like to have a special screen for signage displays. The special bar LCD monitor is sturdy and fits well into many applications.



BENEFITES

  • Exceptional quality and commercial-grade reliability and performance
  • Stunning HD display, Energy-Efficient LED Backlight Technology
  • All steel construction designed for harsh & public environments
  • Optional touchscreen like custom projected capacitive touch panel
  • Superior viewing angles, contrast ratio and brightness
  • Optional single media player, network media player integrated
  • Portrait and landscape display flexibility
  • Unique design accounts for heat ventilation
  • Long lasting product cycle for continuity thru all phases of project
