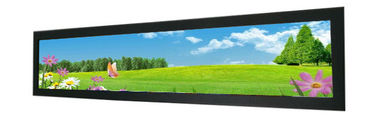

Supermarket Shelf Edge Stretched Bar LCD Monitor 16.3 Inch For POP Strip Video

Place of Origin China
Brand Name ITD
Certification CE, FCC, RoHS
Model Number ITD163SDN1E1
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month
Product Details
Housing Material Steel Chassis Application Store/Supermarket Shelf
Housing Type VESA Mounting MTBF 50000Hours
Operating Temperature -10~60℃ Operating Humidity 10%-90% (Non Condensing)
24/7/365 Use Supported Resolution 1920*203
Configurations Single Monitor, Single Media Player, Android 6.0 Compliance CE, FCC, RoHS
High Light

stretched lcd display

,

stretched monitor display

Leave a Message
Product Description

Supermarket 16.3 inch shelf edge LCD display for POP strip video AD stretched bar lcd display



ITD’s line of ultra wide helf-level digital media LCD displays provides a significant opportunity for point of purchase conversion by engaging with the consumer via animated content. ITD has a range of shelf edge screens specifically developed for the retail shelf to help customer to create different brand.



BENEFITES



•High contrast color TFT LCD displays

•Supports DDC 1/2B for Plug & Play compatibility

•Robust steel chassis housing for harsh environment

•Provides improved power efficiency and reduced consumption

•Ultra-wide Viewing Angle

•LED backlight lifetime: 50000hours

•CE, FCC, RoHS Compliance



LCD Panel
Cell Type/Glass Surface TFT
Size 16.3”
Active Area 410(H) x 61(V)
Pixel Pitch 0.300x0.300mm
Native Resolution 1920 x 203
Colors 16.7M
Brightness 500nits
Contrast 1000:1
Response Time 8ms
Field Frequency 60Hz
Viewing Angle(Typical) 89/89/89/89
Light Source LED backlight with 50000hours’lifetime
Configuration Options
Stretched LCD Monitor Stretched LCD Single Media Player Stretched LCD Android Media Player
1 x VGA input 1 x SD Card Slot 1 x WIFI IEEE802.11B/g/n
1 x DVI input 1 x HDMI input 2 x USB Ports
1 x HDMI input 1 x USB Port 1 x SD Card Slot (Optional)

Video Formats Supported: RMVB,FLV, MPEG1/2/4, AVI, DIVX, XDIV, WMV9, H.264, VC-1, M

V, MKV, MP4, TS, M2T, VOB

Video Formats Supported: RMVB,FLV, MPEG1/2/4, AVI, DIVX, XDIV, WMV9, H.264, VC-1, MOV, MKV, MP4, TS, M2T, VOB
Photos Format Supported: BMP/PNG/GIF/JPEG Photos Format Supported: BMP/PNG/GIF/JPEG

Audio Formats Supported: MP3, W

A, WAV, EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC

Audio Formats Supported: MP3, WMA, WAV, EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC




Basic Parameters




Convenient Features Plug & Play
Power Source External Power Supply with Universal/Auto-Sensing, DC 12V
Power Consumption Operation/Power Saving 18W
Operating Temperature -10℃-55℃ (-20℃-70℃ optional)
Storage Temperature -20℃-70℃
Relatively Operating Humidity 10% - 90% (non condensing)
Relatively Storage Humidity 10% - 90%
Order Information 16.3” Stretched LCD Monitor/ITD163SDN101
16.3” Stretched LCD Single Media Player/ITD163SDN1A1
16.3” Stretched LCD Android Player/ITD163SDN1E1
16.3” Stretched LCD Monitor with Tempered Glass/ITD163SDG101
16.3” Stretched LCD Single Media Player with Tempered Glass /ITD163SDG1A1
16.3” Stretched LCD Android Player with Tempered Glass /ITD163SDG1E1



Supermarket Shelf Edge Stretched Bar LCD Monitor 16.3 Inch For POP Strip Video 0

Supermarket Shelf Edge Stretched Bar LCD Monitor 16.3 Inch For POP Strip Video 1

Supermarket Shelf Edge Stretched Bar LCD Monitor 16.3 Inch For POP Strip Video 2

Supermarket Shelf Edge Stretched Bar LCD Monitor 16.3 Inch For POP Strip Video 3
