Shelf Edge Stretched Bar Lcd Android 27.6" Advertising Digital Signage 500 Nits

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD27SDN1E1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Active Area 699(H) X 54(V) Native Resolution 1920x150
Brightness 500 Nits Viewing Angle 178/178
Convenient Features Plug & Play Operating Temperature -10℃-55℃ (-20℃-70℃ Optional)
Storage Temperature -20℃-70℃ Dimension 719x78x30.5mm
High Light

stretched lcd display

,

ultra wide stretched displays

Leave a Message
Product Description

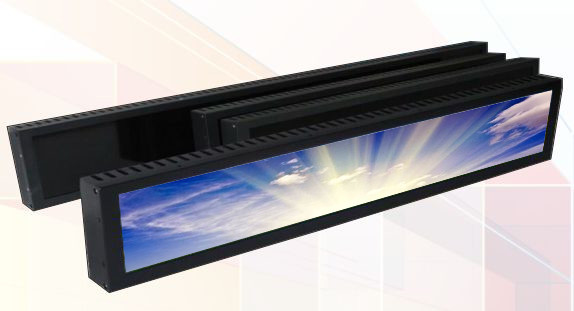

Shelf edge ultra wide screen display stretched bar lcd Android 27.6" advertising digital signage





ITD’s line of ultra wide helf-level digital media LCD displays provides a significant opportunity for point of purchase conversion by engaging with the consumer via animated content. ITD has a range of shelf edge screens specifically developed for the retail shelf to help customer to create different brand.





OPTIONAL

•ARM based PC built-in

•Single media player built-in

•Custom resized cut panel

•Flexible structure design like open frame, custom design

•AG/AR tempered glass

•Black or White





LCD Panel
Cell Type/Glass Surface TFT
Size 27.6”
Active Area 699(H) x 54(V)
Pixel Pitch 0.36375x0.36375mm
Native Resolution 1920 x 150
Colors 16.7M
Brightness 500nits
Contrast 3000:1
Response Time 8ms
Field Frequency 60Hz
Viewing Angle(Typical) 89/89/89/89
Light Source LED backlight with 50000hours’lifetime
Configuration Options
Stretched LCD Monitor Stretched LCD Single Media Player Stretched LCD Android Media Player
1 x VGA input 1 x SD Card Slot 1 x WIFI IEEE802.11B/g/n
1 x DVI input 1 x HDMI input 2 x USB Ports
1 x HDMI input 1 x USB Port 1 x SD Card Slot (Optional)
Video Formats Supported: RMVB,FLV, MPEG1/2/4, AVI, DIVX, XDIV, WMV9, H.264, VC-1, MOV, MKV, MP4, TS, M2T, VOB Video Formats Supported: RMVB,FLV, MPEG1/2/4, AVI, DIVX, XDIV, WMV9, H.264, VC-1, MOV, MKV, MP4, TS, M2T, VOB
Photos Format Supported: BMP/PNG/GIF/JPEG Photos Format Supported: BMP/PNG/GIF/JPEG
Audio Formats Supported: MP3, WMA, WAV, EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC Audio Formats Supported: MP3, WMA, WAV, EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC




Basic Parameters




Convenient Features Plug & Play
Power Source External Power Supply with Universal/Auto-Sensing, DC 12V
Power Consumption Operation/Power Saving 28W
Operating Temperatur -10℃-55℃ (-20℃-70℃ optional)
Storage Temperature -20℃-70℃
Relatively Operating Humidity 10% - 90% (non condensing)
Relatively Storage Humidity 10% - 90%
Order Information 27.6” Stretched LCD Monitor/ITD276SDN101
27.6” Stretched LCD Single Media Player/ITD276SDN1A1
27.6” Stretched LCD Android Player/ITD276SDN1E1
27.6” Stretched LCD Monitor with Tempered Glass/ITD276SDG101
27.6” Stretched LCD Single Media Player with Tempered Glass /ITD276SDG1A1
27.6” Stretched LCD Android Player with Tempered Glass /ITD276SDG1E1








Product Display



Shelf Edge Stretched Bar Lcd Android 27.6" Advertising Digital Signage 500 Nits 0





Shelf Edge Stretched Bar Lcd Android 27.6" Advertising Digital Signage 500 Nits 1

Shelf Edge Stretched Bar Lcd Android 27.6" Advertising Digital Signage 500 Nits 2

Shelf Edge Stretched Bar Lcd Android 27.6" Advertising Digital Signage 500 Nits 3





APPLICATION

Shelf Edge Stretched Bar Lcd Android 27.6" Advertising Digital Signage 500 Nits 4



Shelf Edge Stretched Bar Lcd Android 27.6" Advertising Digital Signage 500 Nits 5
