IP65 PCAP 25W 18.5" VGA Zero Bezel Touch Monitor

Place of Origin China
Brand Name ITD
Certification CE, FCC, RoHS
Model Number ITD18OFT5K1
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 3-5 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month
Product Details
Resolution 1366x768 Weight(N.W/G.W) 4.95Kg / 6.9Kg (Approx.)
Packing Dimension 500(W) ×440(H)×140(D)mm LCD Type 18.5"Active Matrix TFT LCD
Video Input VGA And DVI-I, HDMI, Audio Viewing Angle (L/R/T/B) 85°/85°/80°/80°
Operating Temp. -10~60°C Mount Interface Regular Warranty 1 Year For TFT Panel And 2 Years For Others
High Light

VGA Zero Bezel Touch Monitor

,

25W Zero Bezel Touch Monitor

,

18.5" Active Matrix TFT LCD Monitor

Leave a Message
Product Description

zero bezel true flat 18.5" widescreen industrial touch monitor



ITD new PCAP multi-touch screen monitor new series is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.





SPECIFICATIONS



2. 1 General



Model ITD18OFT5K1
IP IP65(for front panel only)
Outline Dimensions Width: 461mm Height: 286mm Depth: 43mm
Weight(N.W/G.W) 4.95Kg / 6.9Kg (Approx.)
Packing Dimension 500(W) ×440(H)×140(D)mm
Speakers 8Ω10W
LCD Type 18.5"Active matrix TFT-LCD
Video Input VGA and DVI-I, HDMI, Audio
Recommend Resolution 1366×768@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External Brick
Input (line) Voltage: 100-240 VAC, 50-60 Hz
Output Voltage/Current: 12V at 4A Max.
Power Consumption 25W
Mount Interface

1)VESA 75×75 and 100×100mm

2)Mounting Brackets optional

Regular Warranty 1 Year for TFT Panel and 2 Years for Others
Agency Approval FCC,CE,RoHS Certified



2. 2 LCD Specification



Active Area(mm) 409.8(H) x 230.4(V)
Resolution 1366×768(1920×1080 optional)
Pixel Pitch(mm) 0.300×0.300
Nominal Input Voltage VDD +5V(Typ)
Viewing angle (L/R/T/B) 85°/85°/80°/80°
Contrast 1000:1
Luminance(cd/m2) 250
Response Time (Rising/Falling) 1.5/3.5ms
Support Color 16.7M
Screen Scanning 60Hz
Backlight MTBF (hr) 50000h








2.3 Touch Screen Specification

Type Projected Capacitive Touch Screen
Resolution 4096×4096
Light Transmission 85%±5%
Touch Life Cycle 50 millions times
Touch Response time 5ms
Touch System Interface USB A type
Operating Temperature -10~60°C
Operating System Support

Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Android



Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C



2.5 Environment

Operating Temp. -10~50°C
Storage Temp. -10~60°C
Operating RH: 20%~80%
Storage RH: 10%~90%



Product image:

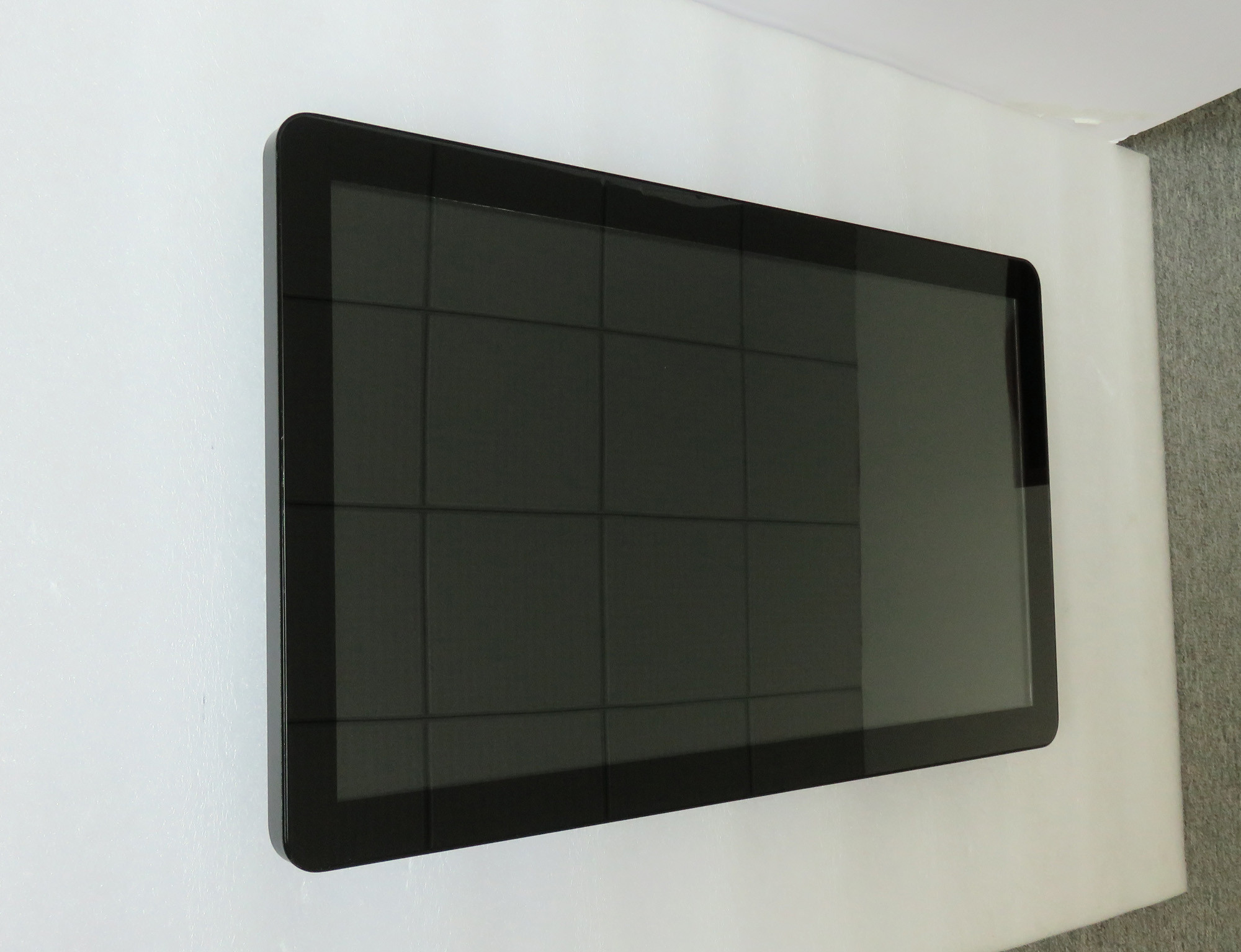

IP65 PCAP 25W 18.5" VGA Zero Bezel Touch Monitor 0

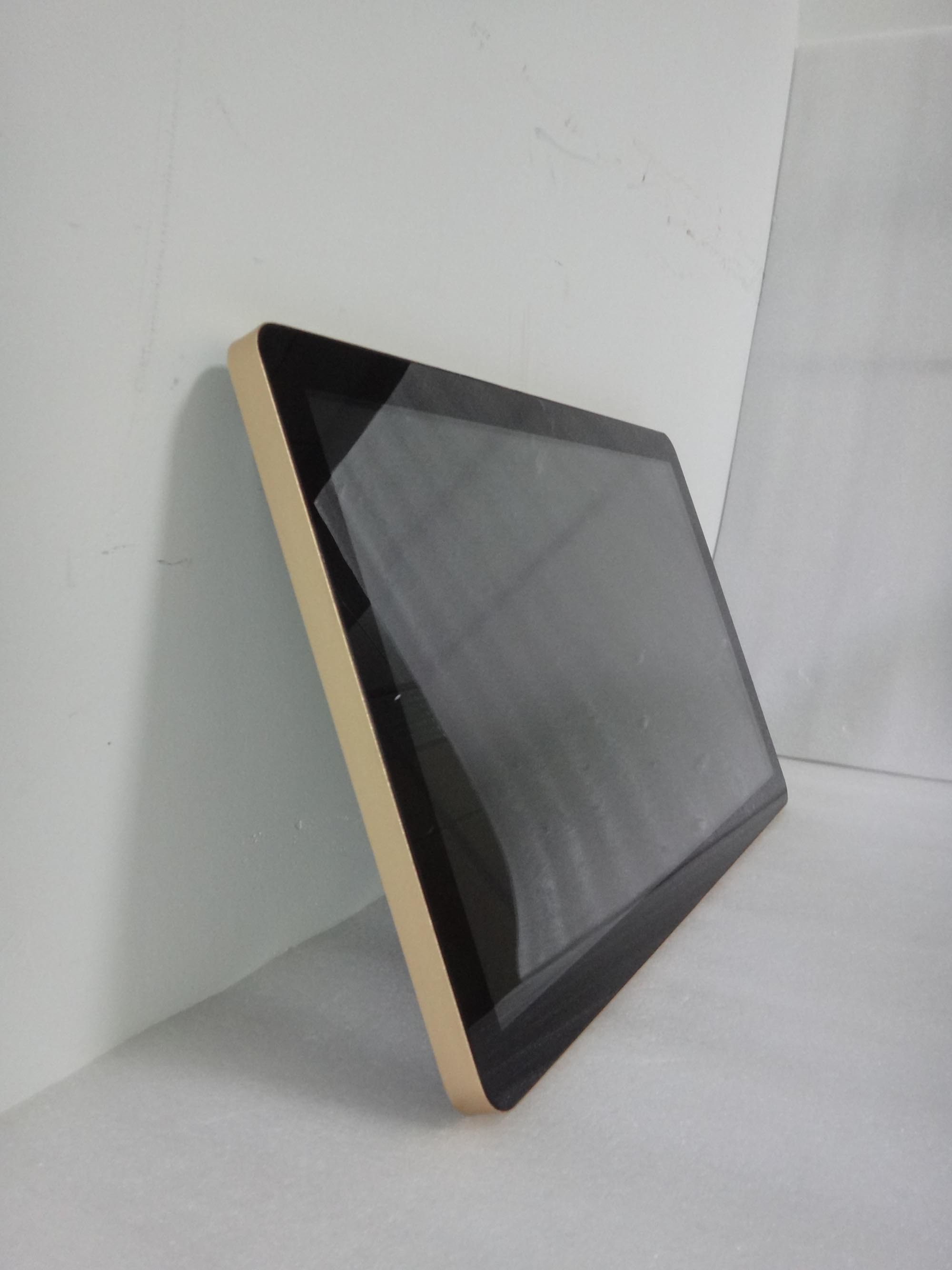

IP65 PCAP 25W 18.5" VGA Zero Bezel Touch Monitor 1









IP65 PCAP 25W 18.5" VGA Zero Bezel Touch Monitor 2


IP65 PCAP 25W 18.5" VGA Zero Bezel Touch Monitor 3
