VGA 43" 3840x2180 Touch Screen Gambling Machine Curved

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD43CMT5GC1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Aspect Ratio 16:9 Radius Of Curvature 1500 R
Display Type 43 Inch Curved TFT-LCD IPS Panel Active Area 941.184 X 529.416 (mm)
Monitor Dimensions (W*H*D) 950 X 533 X 27(mm) Suggested Resolution 3840x2180
Video Input VGA/HDMI/DP Frequency (H/V) 15~80KHz / 55~75Hz
High Light

3840x2180 Touch Screen Gambling Machine

,

VGA Touch Screen Gambling Machine

,

43" Curved Gambling Touch Screen

Leave a Message
Product Description

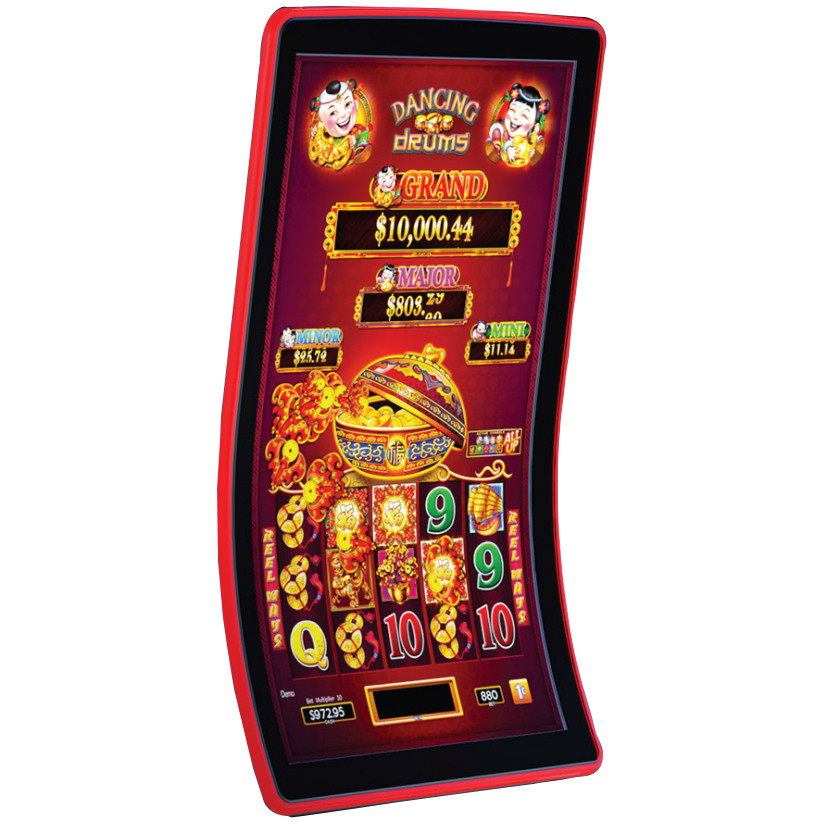

43" curved touch screen gambling machine with LED light around 4K monitor







SPECIFICATION


LCD Monitor
Model No. GM 430011V0-LED
Radius of Curvature 1493 R
Display Type 16:9 Ratio, 43 inch Curved TFT-LCD IPS Panel
Active Area 941.184 x 529.416 (mm)
Monitor Dimensions (W*H*D) 1027 x 607 x 143(mm)
Suggested Resolution 3840 x 2180(UHD, 4K)
Support Colors 1.07 B
Brightness (Typ.) Pure LCD Panel 350cd/m2
With Touch Monitor 300cd/m2
Response Time (Typ.) 14 ms
Viewing Angle (Typ.at CR>10) ) Horizontal (left/right) 89°/ 89°
Vertical (up/down) 89°/ 89°
Contrast Ratio (Typ.) 1300 : 1
Video Input/Interface HDMI/DP
Frequency (H/V) 15~80KHz / 55~75Hz
Power Supply Type: External
Display voltage: DC12V
Input(line) voltage: AC100-240V,50-60Hz
Environment Operating Temp. 0~50°C
Operating RH 10%~90%
Storage Temp. -20~60°C
Storage RH 5%~90%
MTBF ≥30,000 Hours
LED Backlight Life Time (Typ.) ≥30,000 Hours
Weight(N.W/G.W) 34.7Kg/35.2Kg
Cover Dimensions 1005 × 602 (mm)
Power Consumption 120W Max.
Mount Interface 1. VESA
2. Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness,ContrastRatio,Auto-adjust,Phase,Clock,H/VLocation,Languages,Function,Reset
Regular Warranty 1 year

Touch Screen
Touch Type 43 inch Curved Projected Capacitive Touchscreen
Touch input USB
Response Time ≤10ms
Hardness Min.7H
Light Transmittance ≥80%
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Active Area 941.184 x 529.416 (mm)
Cover Glass Thickness 6±0.2 (mm)
Touch Test ≥50,00,000
Touch Controller EETI/ILI/ Siliconworks (optional)



Product Display

VGA 43" 3840x2180 Touch Screen Gambling Machine Curved 0














VGA 43" 3840x2180 Touch Screen Gambling Machine Curved 1
VGA 43" 3840x2180 Touch Screen Gambling Machine Curved 2
VGA 43" 3840x2180 Touch Screen Gambling Machine Curved 3
