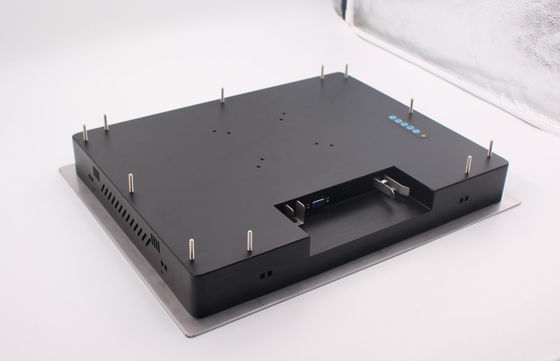

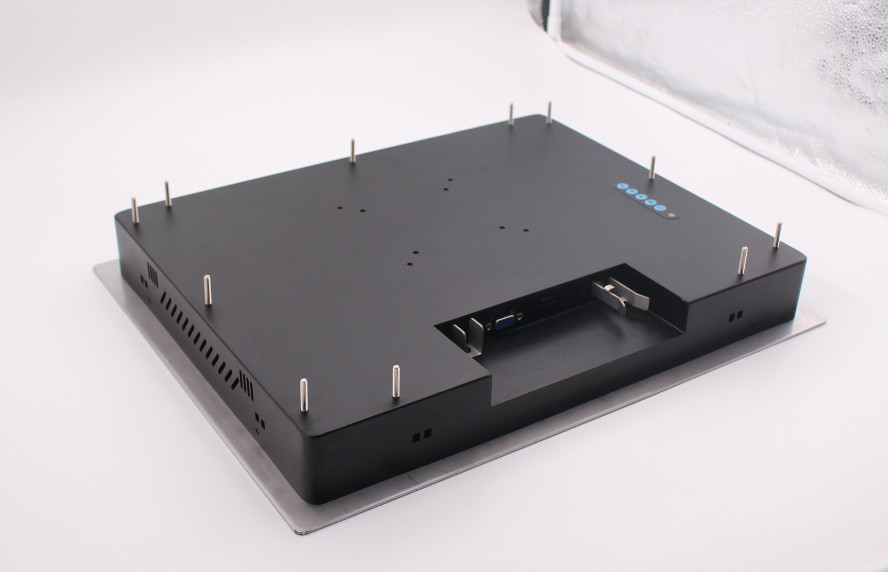

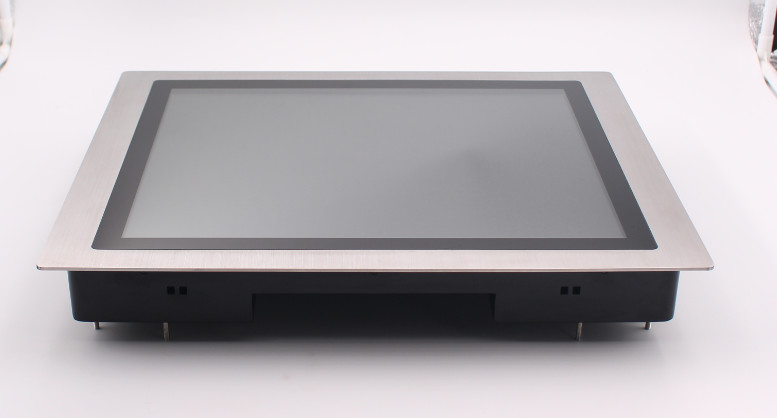

PCAP 1500nits Touch Screen Industrial Monitor 1280x1024
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD19PMT5HBX1 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 15-20 working days |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 19" | Contrast | 1000:1 |
|---|---|---|---|
| Viewing Angles | 85/85/80/80 | Brightness | 1500nits |
| Inputs | VGA, DVI HDMI Inputs | Touch Screen | PCAP Touch, Resistive Touch |
| USB Port | USB B Port | IP Rate | IP65 Front |
| Housing Material | Stainless Steel Front Bezel, Steel Chassis | Mounting | Panel Mounting, VESA Mounting |
| Lifetime | 50000hours | ||
| High Light | PCAP Touch Screen Industrial Monitor,1500nits Touch Screen Industrial Monitor,1280x1024 Stainless Steel PCAP Monitor |
||
Product Description
touch screen industrial monitor stainless steel front bezel PCAP monitor
ITD 19” ITD19PMT5HBX1 is an industrial LCD display (panel mount type), high brightness for sunlight readable application. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.
FEATURES
•High contrast color TFT LCD display supports resolution up to 1280x1024
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•Robust design with aluminum NEMA 4/ IP65 front panel
•All steel construction designed for harsh and industrial environments
•The LED backlight enables optimal viewing in all lighting conditions
•CE, FCC, RoHS Compliance
OPTIONALS
•AR/AG Tempered glass
•Touch sensor technologies: Resistive, IR, PCAP
•Auto-Dimming, light sensor
•AV input, RS232 remote control
Specifications
SPECIFICATION
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 19” 4:3 | |
| Active Area/Pixel Pitch | 376.32(H) x 301.06(V)/0.294mm | |
| Native Resolution/Colors | 1280 x 1024 /16.7M | |
| Brightness/Contrast | 1500nits/1000:1 | |
| Response Time | 8ms | |
| Viewing Angle(Typical) | 85/85/80/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime | |
| Input Signals | VGA, DVI, HDMI | |
| Convenient Features | Backlight Adjustment, Plug & Play, OSD Multi-Languages | |
| Power | External AC-to-12VDC Power Adapter with Universal/Auto-Sensing | |
| Power Consumption | Operation/Power Saving | Bellow 35W |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
| Order Information | 19”Panel Mount Monitor 1500nits with resistive touch/ITD19PMT1HB01 | |
| 19”Panel Mount Monitor 1500nits with IR touch/ITD19PMT2HB01 | ||
| 19”Panel Mount Monitor 1500nits with PCT touch/ITD19PMT5HB01 | ||
| 19”Panel Mount Monitor 1500nits with tempered glass/ITD19PMG1HB01 | ||
