DVI 350nits 15in Industrial Touch Screen Monitor For Automation

Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD15PMT5X1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 15-20 working days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 15" Contrast 700:1
Viewing Angles 80/80/70/70 Brightness 350nits
Inputs VGA, DVI HDMI Inputs Touch Screen PCAP Touch, Resistive Touch
USB Port USB A Or B IP Rate IP65 Front
Housing Material Aluminum Front Bezel, Steel Chassis Mounting Panel Mounting, VESA Mounting
Lifetime 50000hours
High Light

350nits Industrial Touch Screen Monitor

,

15in Industrial Touch Screen Monitor

,

DVI Automation Touch Screen Monitor

Leave a Message
Product Description

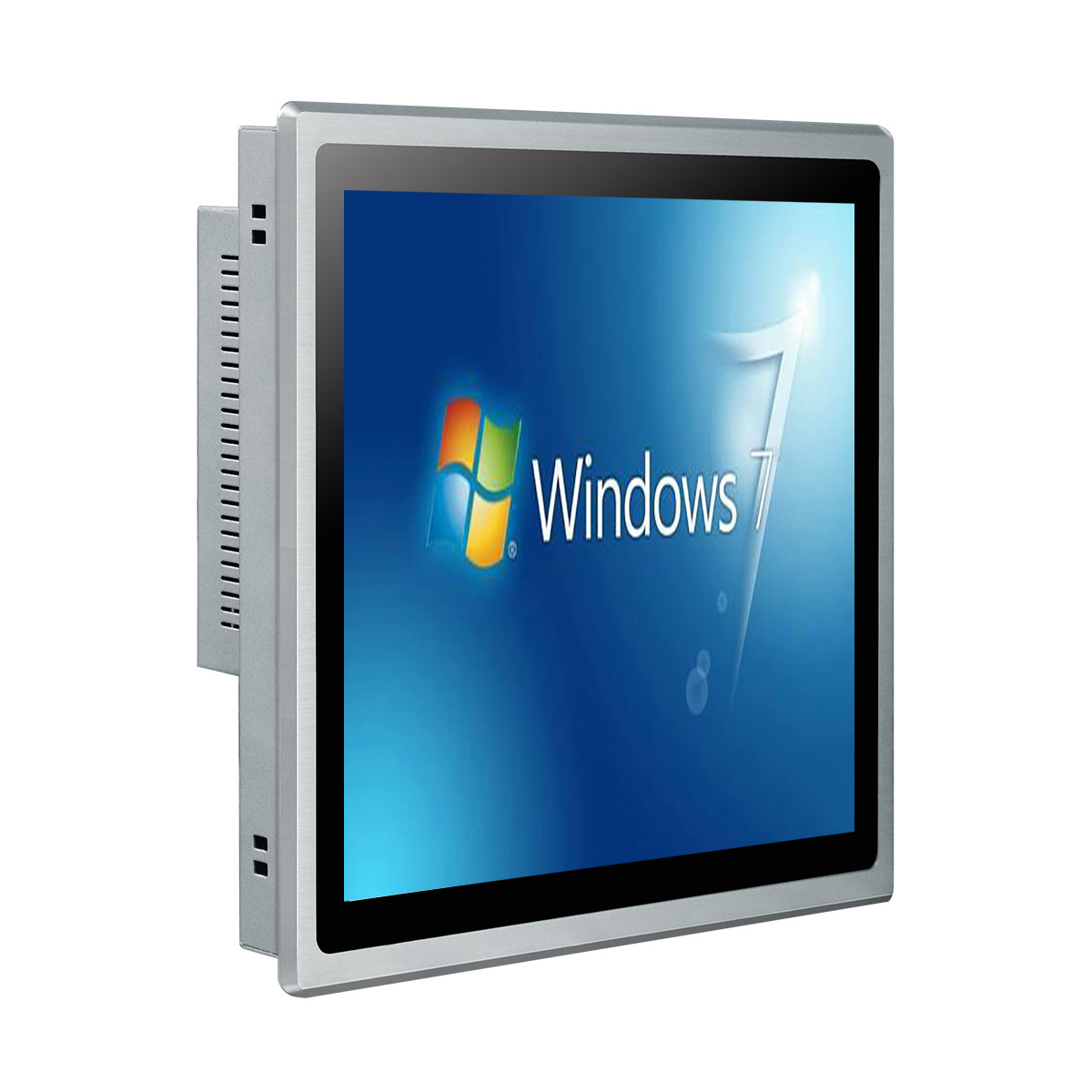

15 inch industrial touch screen monitor display DVI input for automation


ITD 15” ITD15PMT5X1 is an industrial LCD display (panel mount type), high brightness for sunlight readable application. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.


BASIC PARAMETERS

2. 1 General

Article 15” Flat Bezel Panel Mount LCD Monitor
IP IP65(for front panel only)
Cut-Out Dimensions 362.6×283mm
Aluminum Front Bezel Thickness 3mm (6mm, 10mm optional)
Weight(N.W/G.W) 4Kg / 5Kg (Approx.)
LCD Type 15"Active matrix TFT-LCD

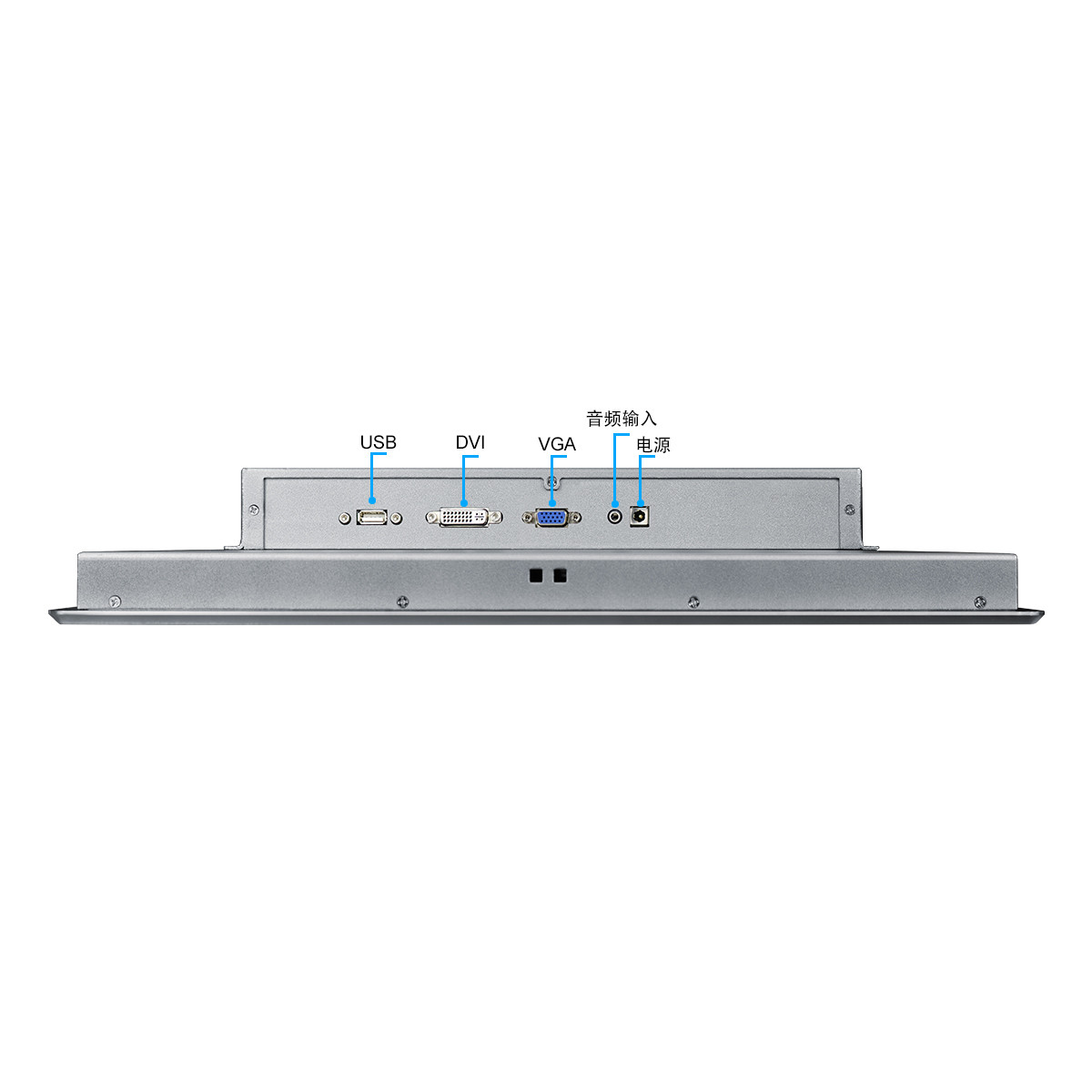

Video Input VGA and DVI-I, HDMI, Audio
Recommend Resolution 1024×768@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Input DC 12V Power Plug; DC 9-36V input optional
Power Consumption 15W
Mount Interface

1)VESA 75×75/100×100mm

2)Panel Mounting via Clamps

Regular Warranty 1 Year for TFT panels; 2 Years for others.
Agency Approval FCC, CE, RoHS Certified
Order Information 15” Flat Bezel 3mm Panel Mount Monitor with PCAP Touch/ITD15PMT5X31
15” Flat Bezel 3mm Panel Mount Monitor with Resistive Touch/ITD15PMT1X31
15” Flat Bezel 3mm Panel Mount Monitor with Tempered Glass/ITD15PMG1X31
15” Flat Bezel 10mm Panel Mount Monitor with PCAP Touch/ITD15PMT5X1
15” Flat Bezel 10mm Panel Mount Monitor with Resistive Touch/ITD15PMT1X1
15” Flat Bezel 10mm Panel Mount Monitor with Tempered Glass/ITD15PMG1X1

2. 2 LCD Specification

Active Area(mm) 304.128(H)×228.096(V)
Resolution 1524×768
Pixel Pitch(mm) 0.297×0.297
Nominal Input Voltage VDD +3.3V(Typ.)
Viewing angle (L/R/T/B) 80°/80°/60°/80°
Contrast 700:1
Luminance(cd/m2) 250
Response Time(Rising/Falling) 5.7ms/2.3ms
Support Color 16.2M
Screen Scanning 60Hz
Backlight MTBF(hr) 50000h

2.3 Touch Screen Specification

2.3.1 Projected Capacitive Touch Screen

Type Projected Capacitive Touch Screen
Surface Hardness 7H
Light Transmission 85%±5%
Touch Life Cycle 50 million times
Touch Response time 5ms
Touch System Interface USB A type (USB B type optional)
Operating System Support

Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Mac, Android

2.3.1 5 Wires Resistive Touch Screen

Type 5 Wires Resistive Touch Screen
Surface Hardness 3H
Surface Treatment Anti-Glare
Light Transmission ≥78%
Finger Touch Life 35 million times
Touch Response time ≤15ms
Touch System Interface USB B type (A type optional)
Operating System Support Drivers for Windows CE/XP/7/8/10,Linux, Mac, Android

2.4 External AC Power Adapter

Output 12V DC/4A
Input 150-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C

2.5 Environment

Operating Temp. -10~60°C (-20~70°C optional)
Storage Temp. -20~70°C
Operating RH: 20%~80%
Storage RH: 15%~90%
