10.1 Inch IP65 Rugged Tablet PC Windows MIL-STD-810G With 2D Scanner
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD101PPCT5-I17J |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 10-15 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 1920x1200 | Processor | Intel® Celeron® Processor N5100 |
|---|---|---|---|
| Touch Panel | PCAP Touch | Pepherials Integrated | 2D Scanner NFC Reader |
| I/O | USB 3.0 Type-A X 1, USB Type-C X 1, SIM Card, TF Card (Three In One Card Holder), HDMI 1.4a X 1, 12pins Pogo Pin X 1, Φ3.5mm Standard Earphone Jack X 1 | Operating Temperature | -20~60℃ |
| Compliance | MIL-STD-810G , IP65 Rated | Material | Rugged Aluminum Casing |
| Warranty | 2 Years | MTBF | 50000hours |
| High Light | IP65 Rugged Tablet PC,10.1 Inch Rugged Tablet PC,Windows IP65 Tablet PC |
||
Product Description

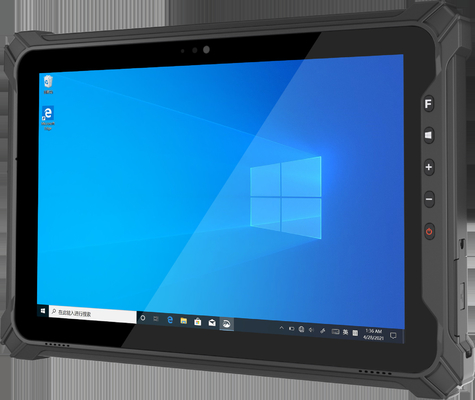

10.1 inch IP65 Rugged windows tablet Pc MIL-STD-810G With 2D Scanner
Features of Rugged windows tablet PC
- Front 5.0MP + Rear 8.0MP, autofocus with flashlight
- Symmetric speakers. More immersive, more clear.
- User-friendly buttons designed for efficient action
- IP65 rated
- MIL-STD-810G compliance
- 2D scanner, NFC reader equipped
Specification of Rugged Tablet PC
| Dimension | 274.9 x 188.7 x 23.1mm |
| Weight | device unit 1140g |
| Device Color | black |
| LCD | 10.1 inch TFT 16:10, 1920×1200 |
| Touch Panel | 10 point capacitive touch screen |
| Camera | Front 5.0MP Rear 8.0MP |
| I/O | USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card, TF Card (Three in one card holder), HDMI 1.4a x 1, 12pins Pogo Pin x 1, Φ3.5mm standard earphone jack x 1 |
| Extension interface (3 choose 1) |
RJ45 (10/100M) x 1, DB9 (RS232) x 1, USB 2.0 Type-A x 1 |
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A (Support power supply without battery adapter) |
| CPU | Intel® Celeron® Processor N5100 |
| OS | Windows 10 |
| RAM | 4GB,Optional 8GB |
| Storage | 64GB,Optional 128GB |
| Battery Capacity | 5000mAh/7.6V |
| Battery Type | Removable Li-polymer battery |
| Battery Endurance | 9hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default ) |
| WIFI | 802.11 a/b/g/n/ac (2.4G/5.8G) |
| Bluetooth | BT4.2 |
| 4G (Optional) |
LTE FDD: B1/B3/B7/B8/B20, LTE-TDD: B40 WCDMA: B1/B5/B8, GSM: B3/B8 |
| GNSS | Built-in, GPS, Glonass, Beidou, and Single Beidou |
| Operate Temperature |
-20 °C ~ 60 °C |
| Store Temperature |
-30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature |
IP65 certified, MIL-STD-810G certified |
| Drop Height | 1.22m drop |
| 2D | Optional |
| NFC | Optional, support ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092, ISO/IEC mifare protocol |

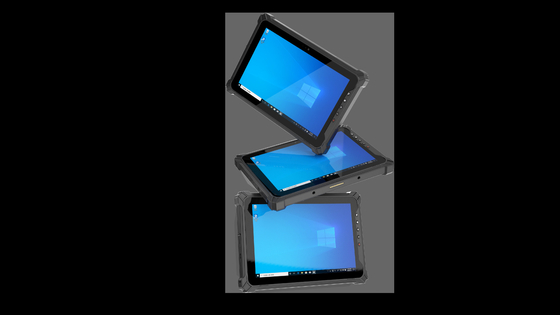

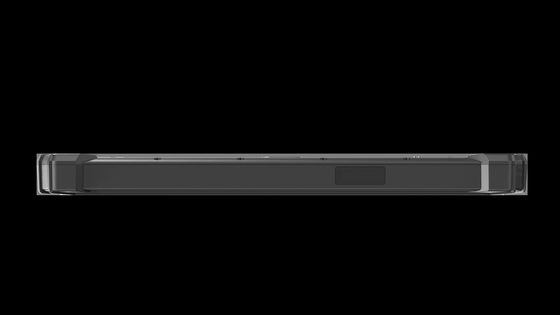

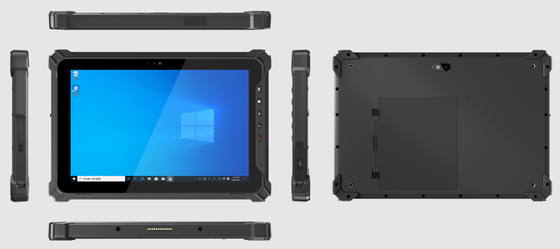

Display of the Rugged Tablet Windows PC
