10.1 Inch Industrial Rugged Tablet PC Windows 10 With Fingerprint

  • 10.1 Inch Industrial Rugged Tablet PC Windows 10 With Fingerprint
  • 10.1 Inch Industrial Rugged Tablet PC Windows 10 With Fingerprint
  • 10.1 Inch Industrial Rugged Tablet PC Windows 10 With Fingerprint
  • 10.1 Inch Industrial Rugged Tablet PC Windows 10 With Fingerprint
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD101PPCT5-I10J
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 10-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 1920x1200, 700nits Processor Intel® Celeron® Processor N5105
Touch Panel 10 Point G+G Capacitive Touch Screen Pepherials Integrated Fingerprint, NFC, 2D
I/O USB 3.0 Type-A X 1, USB Type-C X 1, SIM Card X 1, TF Card X 1, HDMI 1.4a X 1, 12pins Pogo Pin X 1, Φ3.5mm Standard Earphone Jack X 1, Φ5.5mm DC Jack X 1 Operating Temperature -20~60℃
Compliance MIL-STD-810G , IP65 Rated Material Rugged Aluminum Casing
Warranty 2 Years MTBF 50000hours
OS Support Windows 10
High Light

Industrial Rugged Tablet PC

,

Fingerprint Rugged Tablet PC

,

N5105 industrial Tablet PC
Leave a Message
Product Description

10.1 Inch industrial rugged tablet pc windows 10 with fingerprint



Features of industrial rugged tablet PC

  • Choose 1 from 4 modules (2D scan engine, RJ45 Gigabit Ethernet,
    DB9 and USB2.0 )
  • Support GPS, BDS and GLONASS
  • Equipped with multiple accessories, like docking charger,
    hand-strap, vehicle mount, car charge, carry handle

Specification of Rugged Tablet PC

Dimension 289.9 x 196.7 x 27.4mm
Weight device unit 1140g
Device Color black
LCD 10.1 inch TFT 16:10, 1920×1200, 700nits
Touch Panel 10 point capacitive touch screen
Camera Front 5.0MP Rear 8.0MP
I/O USB 3.0 Type-A x 1, USB Type-C x 1,
SIM Card x 1, TF Card x 1,
HDMI 1.4a x 1,
12pins Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1,
Φ5.5mm DC jack x 1
Extension
interface
(4 choose 1)

RJ45 (10/100M) x 1,
DB9 (RS232) x 1,
USB 2.0 Type-A x 1

2D Scanner x 1
Power AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A
(Support power supply without battery adapter)
CPU Intel® Celeron® Processor N5100
OS Windows 10
RAM 4GB,Optional 8GB
Storage 64GB,Optional 128GB
Battery Capacity 5000mAh/7.6V
Battery Type Removable Li-polymer battery
Battery Endurance 9hrs ( 50% volume sounds, 200 lumens brightness,
1080P HD video display by default )
WIFI 802.11 a/b/g/n/ac (2.4G/5.8G)
Bluetooth BT4.2
4G
(Optional)		 LTE FDD: B1/B3/B7/B8/B20, LTE-TDD: B40
WCDMA: B1/B5/B8, GSM: B3/B8
GNSS Built-in, GPS, Glonass, Beidou, and Single Beidou
Operate
Temperature		 -20 °C ~ 60 °C
Store
Temperature		 -30 °C ~ 70 °C
Humidity 95% Non-Condensing
Rugged
Feature		 IP65 certified, MIL-STD-810G certified
Drop Height 1.22m drop
Fingerprint SPI fingerprint (power on login)
NFC Optional, support ISO/IEC 14443A/B, ISO/IEC 15693,
ISO/IEC 18092, ISO/IEC mifare protocol

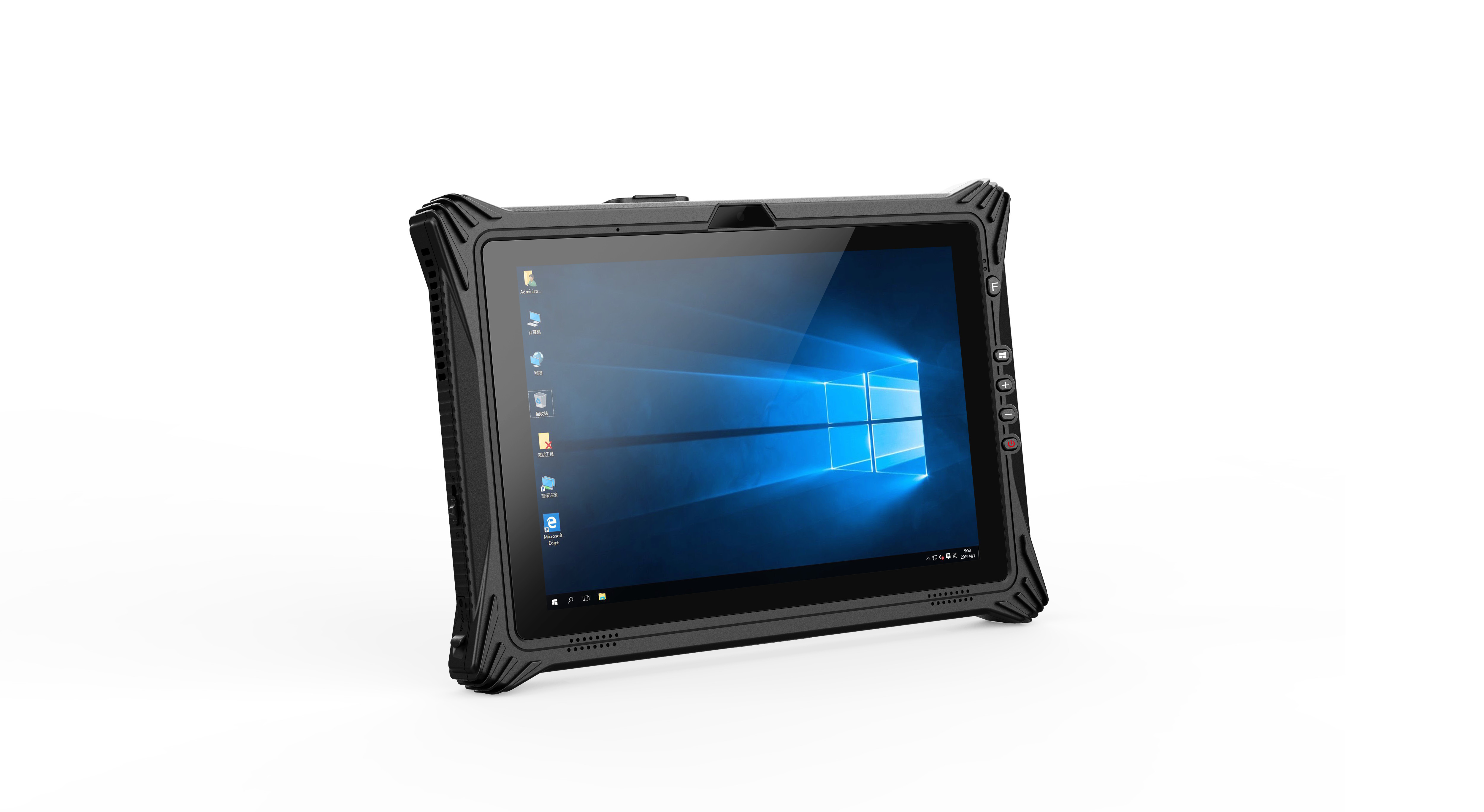

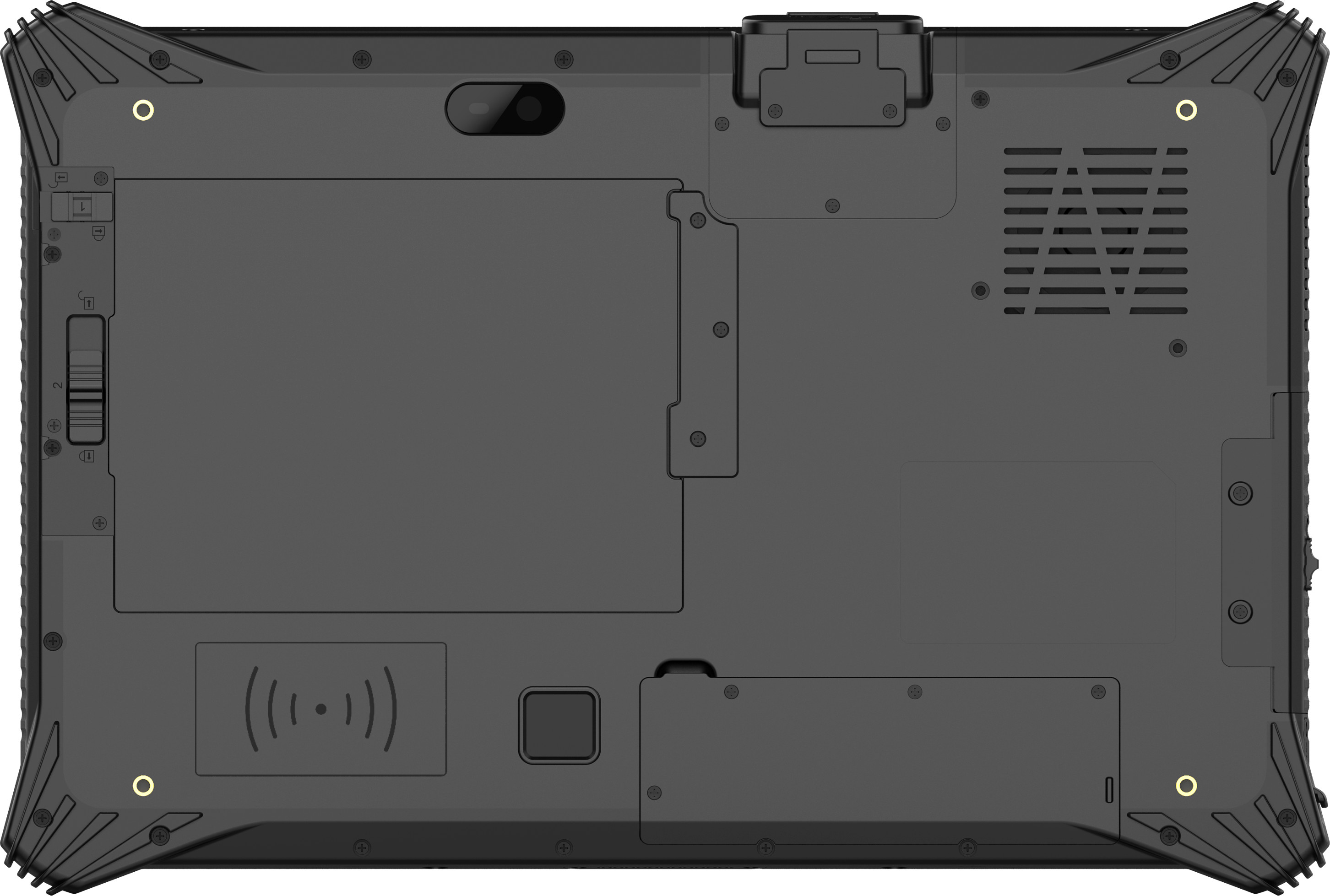

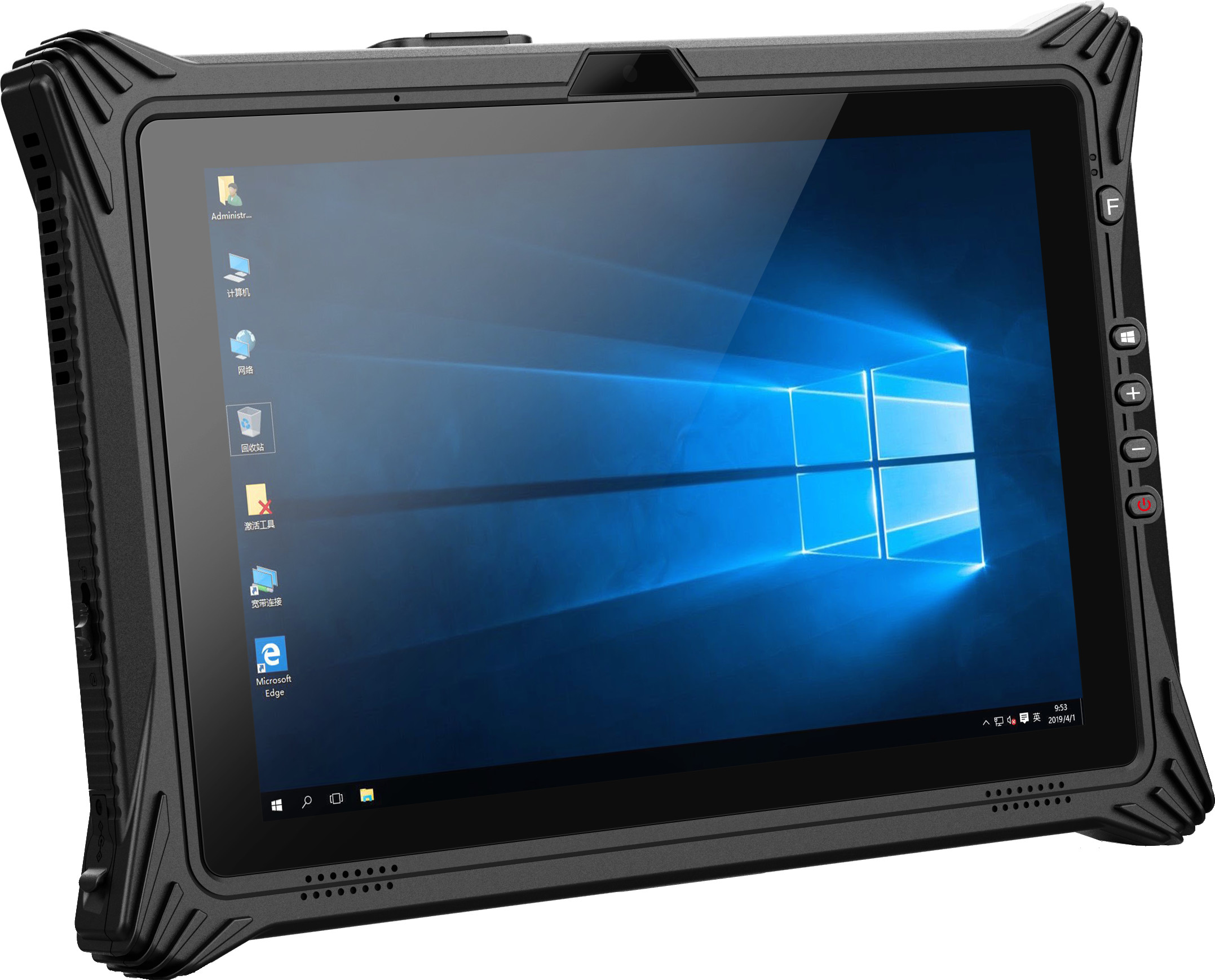

Display of the Rugged Tablet Windows PC


10.1 Inch Industrial Rugged Tablet PC Windows 10 With Fingerprint 0



10.1 Inch Industrial Rugged Tablet PC Windows 10 With Fingerprint 1
