10 Inch Rugged Tablet PC Windows 10 Intel I7-8550U aluminum casing With GPS 4G
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD101PPCT5-I12U |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 10-15 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 10.1 Inch IPS 16:10，1200×1920，400nits | Processor | Intel® Core™ I5-8250U/i7-8550U |
|---|---|---|---|
| Touch Panel | 5 Point G+G Capacitive Touch Screen | Pepherials Integrated | 2D Optional, GPS, 4G, Bluetooth, WIFI |
| I/O | USB 3.0 Type-A X 1, USB Type-C X 1, SIM Card X 1, TF Card X 1, HDMI 1.4a X 1(Optional), 12pins Pogo Pin X 1, Antenna BNC Interface X 1(Optional), Aviation Plug-in Interface X 1(Optional), Φ3.5mm Standard Earphone Jack X 1, Φ5.5mm DC Jack X 1 | Operating Temperature | -20~60℃ |
| Compliance | MIL-STD-810G , IP65 Rated | Material | Rugged Aluminum Casing |
| Warranty | 2 Years | Battery | 7.4V/5000mAh, 5hrs Endurance |
| OS Support | Windows 10, Windows 11 Optional | ||
| High Light | 10 Inch rugged tablet pc windows 10,Aluminum rugged tablet pc windows 10,I7-8550U rugged windows tablet pc |
||
Product Description
rugged windows 10 tablet 10 inch Intel i7-8550U with GPS 4G
Features of rugged windows 10 tablet
·Intel® Core™ i5-8250U/i7-8550U processor
·Windows 10 OS , Up to 16GB + 128GB
·10.1 inch IPS Full HD screen with 5-point capacitive touch
·USB Type-C interface, USB 3.0 interface, 3.5mm audio interface,
DC power interface
·Expandable HDMI Mini interface, aviation plug-in charging
interface, antenna BNC interface
·hot-swappable design, 5000mAh/860mAh dual-battery
·Dual band WIFI, High speed 4G LTE BT 4.2
·Support GPS, Glonass and BeiDou
·Optional professional 2D scan engine
·Dual band WIFI, High speed 4G LTE BT 4.2
·Support GPS, Glonass and BeiDou
·Optional professional 2D scan engine
Specification of Rugged Tablet PC
| Dimension | 278.6 x 184.5 x 21.3mm |
| Weight | device unit 1190g |
| Device Color | Magnesium alloy black |
| LCD | 10.1 inch IPS 16:10,1200×1920,400nits |
| Touch Panel | 5 point G+G capacitive touch screen |
| Camera | Rear 8.0MP |
| I/O | USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card x 1, TF Card x 1, HDMI 1.4a x 1(Optional), 12pins Pogo Pin x 1, Antenna BNC interface x 1(Optional), Aviation plug-in interface x 1(Optional), Φ3.5mm standard earphone jack x 1, Φ5.5mm DC jack x 1 |
| Extension Module |
2D, EM80, Optical resolution: 5mil/ |
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A |
| CPU | Intel® Core™ i5-8250U/i7-8550U |
| OS | Windows 10, Windows 11 optional |
| RAM | 4GB,Optional 8GB |
| Storage | 64GB,Optional 128GB |
| Battery Capacity | 7.4V/5000mAh |
| Battery Type | Removable Li-polymer battery |
| Battery Endurance | 5hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default ) |
| WIFI | 802.11 a/b/g/n/ac (2.4G/5.8G) |
| Bluetooth | BT4.2 |
| 4G (Optional) |
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 |
| GNSS | Support GPS, Beidou, glonass (Only SMA head active external antenna is supported) |
| Operate Temperature |
-20 °C ~ 60 °C |
| Store Temperature |
-30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature |
IP65 certified, MIL-STD-810G certified |
| Drop Height | 1.22m drop |

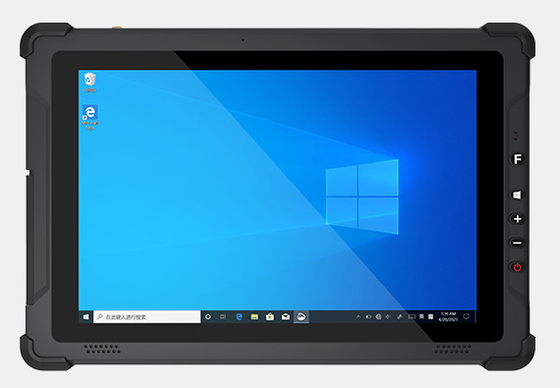

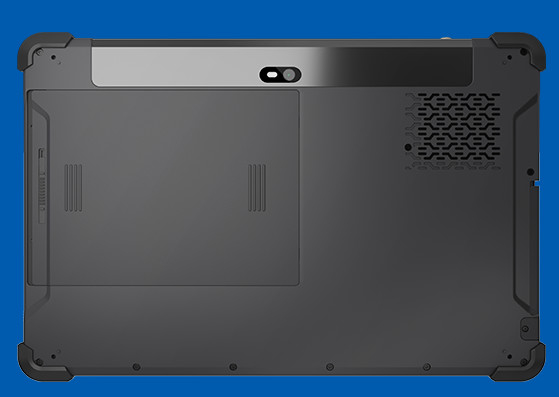

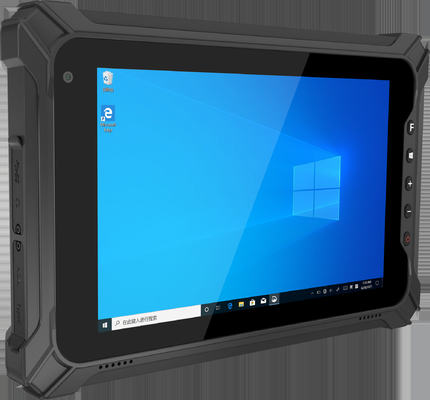

Display of the Rugged Tablet Windows PC
