Heavy Duty Tough Motion Rugged Tablet PC 10.1 Inch RS232 USB Type C Port
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD101PPCT5-I17J |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 10-15 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Native Resolution | 10.1 Inch IPS 16:10, 800x1280/1200x1920 | Processor | Intel Atom X5 Z8350 |
|---|---|---|---|
| Touch Panel | 10 Point G+G Capacitive Touch Screen Corning® Gorilla® Glass | Pepherials Integrated | NFC, 1D, 2D, Fingerprint, |
| Camera | Front 2.0MP Rear 5.0MP | Operating Temperature | -20~60℃ |
| Compliance | MIL-STD-810G , IP65 Rated | Material | Rugged Aluminum Casing |
| Warranty | 2 Years | Battery | 3.7V/10000mAh, 10hrs Endurance, Removable Li-polymer Battery |
| OS Support | Windows 10 | ||
| High Light | Heavy Duty Rugged Tablet PC,Tough Motion Rugged Tablet PC,Rugged Tablet PC 10.1 Inch |
||
Product Description
industrial windows tablet computer 10.1 inch 1200x1920 rugged mobile devices
Features of industrial windows tablet
• Support for Windows 10 system
• Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
• 10000mAh battery, 10 hours of machine endurance
• IP65 high protection level, in accordance with MIL-STD-810G
• Support GPS, more accurate positioning
• Support 5 million pixel auto focus camera, easy to collect images and video information
• Support 1D/2D, NFC, ID card and other functional modules for free selection
Applications of industrial windows tablet
• Food & Hygienic Industrial
• Industrial Automation
• Automotive Technology
• Transportation
• Warehouse & Logistics
• Energy & Utilities
• Public Safety
• IIoT & Edge Computing
• Healthcare
• Marine
• Infrastructure
• Renewable Energy
• Metals and Mining
Specification of Rugged Tablet PC
| Dimension | 274.9 x 188.7 x 23.1mm |
| Weight | device unit 1040g |
| Device Color | black |
| LCD | 10.1 inch IPS 16:10, 1200x1920 |
| Touch Panel | 10 point capacitive touch screen |
| Camera | Front 5.0MP Rear 8.0MP |
| I/O | USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card, TF Card (Three in one card holder), HDMI 1.4a x 1, 12pins Pogo Pin x 1, Φ3.5mm standard earphone jack x 1 |
| Extension interface (3 choose 1) |
RJ45 (10/100M) x 1, DB9 (RS232) x 1, USB 2.0 Type-A x 1 |
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A (Support power supply without battery adapter) |
| CPU | Intel® Celeron® Processor N5100 |
| OS | Windows 10 |
| RAM | 4GB, Optional 8GB |
| Storage | 64GB,Optional 128GB |
| Battery Capacity | 7.6V/5000mAh |
| Battery Type | Removable Li-polymer battery |
| Battery Endurance8 | 9hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default ) |
| WIFI | 802.11 a/b/g/n/ac (2.4G/5.8G) |
| Bluetooth | BT4.2 |
| 4G (Optional) |
LTE FDD: B1/B3/B7/B8/B20, LTE-TDD: B40 WCDMA: B1/B5/B8, GSM: B3/B8 |
| GNSS | Built-in, GPS, Glonass, Beidou, and Single Beidou |
| Operate Temperature |
-20 °C ~ 60 °C |
| Store Temperature |
-30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature |
IP65 certified, MIL-STD-810G certified |
| Drop Height | 1.22m drop |
| NFC | Optional, support ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092, ISO/IEC mifare protocol |
| 2D | Optional, EM80 |

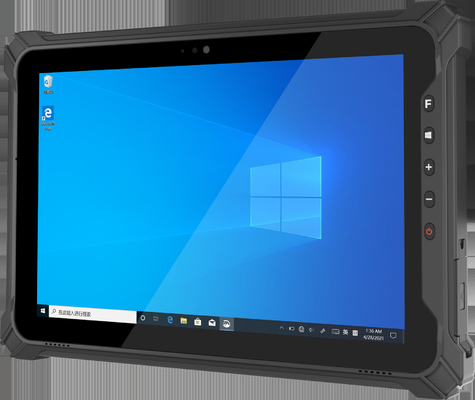

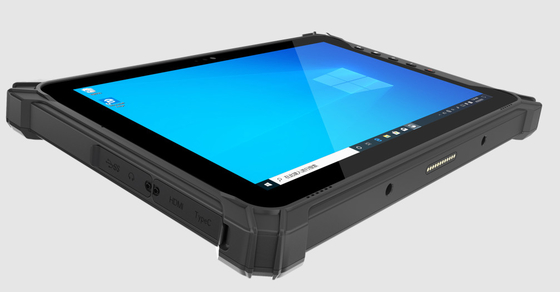

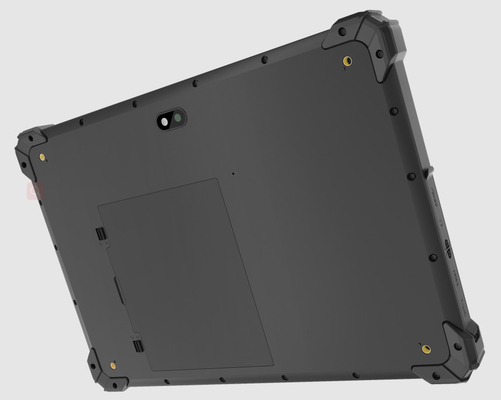

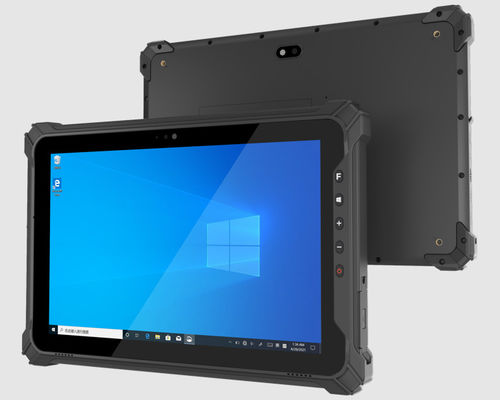

Display of the Rugged Tablet Windows PC
