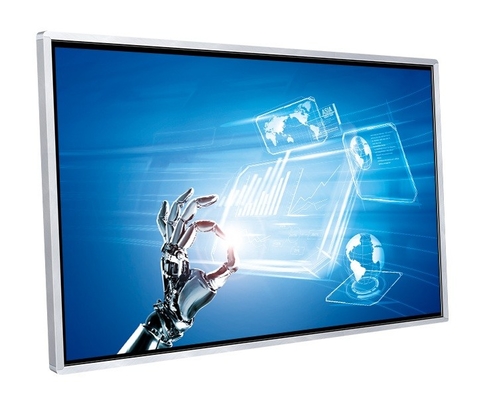

Industrial 75inch IR Touch AIO PC Monitor X86 system Android OS Exhibition Digital Signage Displays
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Port | HDMI INx1, TF Card×1, RJ45×1, USB2.0×2,Headphone Jack | LCD Panel | 75'' LCD Panel |
|---|---|---|---|
| Power Connector | AC110 -240V , 50/60Hz | ||
| High Light | IR Touch AIO PC Monitor,75inch AIO PC Monitor,Exhibition Digital Signage Displays |
||
Product Description
INTRODUCTION:
This is available to be pure monitor, PC with X86 system, Android OS. It is widely used as Exhibition display, Hotel digital signage, KDS display, etc. With full metal chassis structure, this model could work for you stably at least 60.000hrs.
This is widely used in a variety of occasions, such as teaching, conferences, shopping malls, supermarkets, restaurants, car showrooms, brand monopolies, hotel halls, fairs, company showrooms, banks, government units, etc. Many years of strong investment in research and development, so that our products are more competitive than peers, both in technology and in practical applications.
BENEFITES:
Structure Design: (1)Full metal housing, slim , beautiful.(2)PC integrated All in one design,63mm thick only
Functions:10points touch supported； Recognition speed less than 5ms. Great anti-light.
High Safety:Aluminum & sheet metal structure,Laser cutting back, no sharp edge, anti-corrosion paint , tempered glass front face .
Stable performance:Over 10years experience on designing and assembling device, failure rate lower than 1.5%；
Specification
2.1 Machine paramete
| Image format | PAL/SECAM/NTSC(Option) |
| Voice System | BG /DK/I/ L |
| Decode | 3D digital Comb filter, 3D image motion noise reduction, 3D motion adaptive comb filter, etc |
| Horn specification | 10W/8 Ohms × 2 subwoofer sp |
| High-frequency | Balance, automatic volume control, surround sound, equali |
| Front Port | USB1 (PC USB), USB2 (Full Channel Shared USB), HDMI IN, TOUCH USB, TYPE-C |
| Installation method | Hanger (standard configurat |
| Power type | Three core power supply/fix |
| Embedded wall installation size | 1707.4*1013*83.2 |
| Lifetime | ≥ 50000 h |
2.2 Screen Parameters
| Screen Type | LED |
| Size | 75 inch (16 |
| Display size | 1649.6(W)* 927.9(H) |
| Resolution | 3840*2160 P |
| Brightness | 350cd/m2 |
| Contrast Ratio | 5000:1 |
| Response time | 8 ms |
| Number of colours | 16.7M |
| View Angle | ≥178(H) ≥178(V |
| Life Time | >50000 Hr |
| Display screen protection | Standard anti-glare fully tempered glasss |
2.3 Touch Panel Parameters
| Touch Type | Infrared touch screen |
| Response Time | ≤15ms |
| Touch Points | 20 points |
| Touch Recognition Area | > 1.5mm |
| Touch data output | Coordinate output |
| Scanning Rate | 200Hz |
| Accuracy | 32767*32767 |
| Communication | USB 2.0,3.0 |
| Lifetime | Infinite Firmware |
| Firmware | Update via USB Driver |
| Driver | Free Drive |
| Operation Voltage | 180Ma/DC+5V±5% |
| Surface Hardness | Mohs 7 Chemical tempered explosion-proof glass |
| OS supported |
Win 7/ Win 8/Win 10/CE/Mac/Android/Linux /XP |
2.4 Electrical Performance
| Power Input | 110-240V AC 50/60H |
| Monitor consumption | ﹤320W |
| PC AiO consumption | ＜380W |
| Android AiO consumption | ﹤320W |
| Standby Consumptio | ≤0.5W |
| Speakers | 8Ω10W |
2.5 Operation Environme
| Operation Temperat | 0℃-50℃ |
| Operation Humidity | 10% - 80% |
| Storage Temperature | -5℃-60℃ |
| Storage Humidity | 10% - 85% |
| sea level | <5000 |
