Rugged industrial compact Embedded computer mini box PC
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD-MNPC-xxxxxx-M1204 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T,PayPal(173515844@qq.com) |
| Supply Ability | 10000PCS/Month |
Product Details
| Power Supply | DC12V,DC 24V, DC9-36V, | CPU | Intel J6412,J1900,i3,i5,i7,N97 |
|---|---|---|---|
| Operating Temperature | -20℃~70℃ | OS Supported | Win 10/ Win 11 |
| Construction | Die-Casting Aluminum Chassis | Dimension | 145.0 × 126.0 × 59.0 Mm ( W × D × H) |
| Mounting | Wall Mount (Default),Din Rail (Mounting Clip Optional) | ||
| Highlight | rugged industrial embedded computer,compact mini box PC,embedded industrial PC with warranty |
||
Product Description
Rugged industrial compact Embedded computer mini box PC
Product Overview
In the era of Industry 4.0, industrial compact embedded computers have emerged as the backbone of smart manufacturing, edge computing, and IoT ecosystems. Designed for harsh industrial environments, these devices combine high reliability, compact form factors, low power consumption, and rugged adaptability, serving as the "central nervous system" of modern automation systems.
Key Features
1.Rugged & Compact Design
Fanless, all-metal construction with ultra-compact dimensions (e.g., 190×130×50mm) enables seamless integration into cabinets, mobile robots, or confined spaces.
2.Performance-Power Balance
Powered by 4th–12th Gen Intel Core processors , these systems support multi-core parallel computing and AI acceleration (NPU) for tasks like machine vision and motion control.
3.Rich I/O & Modular Expansion
- Industrial-grade interfaces include Gigabit Ethernet, USB 3.0, RS232/485, CAN bus, and GPIO, with optional 4G/5G, Wi-Fi 6, and Bluetooth for wireless connectivity.
Specifications
|
System |
|
|
Model |
ITD-MNPC-xxxxxx-M1204 |
|
Processor *1 |
lntel® J6412, N97 & 4th~12th Gen U-Series CoreTM i3/i5/i7 |
|
Memory *2 |
The memory type is determined by the CPU model |
|
Ethernet |
2 × GbE RJ45 intel i210-AT (Optional 4× LAN) |
|
I/O Port |
4 × USB3.0, 2 × USB2.0 ( Internal PIN Header) 1 × DB-9 COM1/2 RS-232/485/422 1 × DB-9 COM3/4 RS-232 ( Optional 2×CAN ) 1 × Audio Line-out/Mic-in 1 × Remote Switch Phoenix 1 × AT/ATX Switch 1 × Clear CMOS Button 1 × SIM Card Slot 1 × HDMI 1 × VGA 1 × Power Button with LED 8 × GPIO ( 4×input, 4×output ) |
|
Storage *3 |
1 × M.2 2280 SSD ( SATA/NVMe ) 1 × mSATA |
|
Expansion Slot |
Mini-PCle × 1 Full Size with SIM Card for WIFI/BT 3G/4G M.2 Key B × 1 for 5G |
|
Watchdog timer |
255 Levels |
|
Indicator |
System LED Storage Active LED System Temperature LED |
|
OS Support |
Windows® 10/11,Linux |
|
Mechanical |
|
|
Construction |
Die-Casting Aluminum Chassis |
|
Mounting |
Wall Mount (Default),Din Rail (Mounting Clip optional) |
|
Dimension |
145.0 × 126.0 × 59.0 mm ( W × D × H) |
|
Gross Weight |
TBD |
|
Environmental |
|
|
Operating Temperature |
-20℃~70℃ |
|
Storage Temperature |
-30℃~85℃ |
|
Storage Humidity |
10~90%@30℃, non-condensing |
|
Power Supply |
|
|
DC Input |
DC 9~ 36V 2-pin Phoenix Connector |

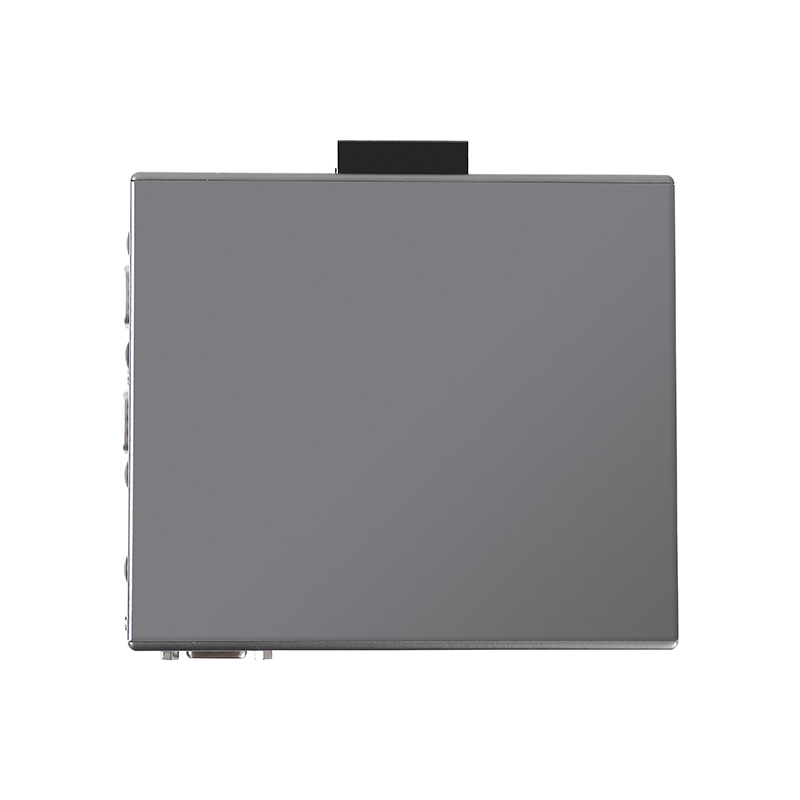

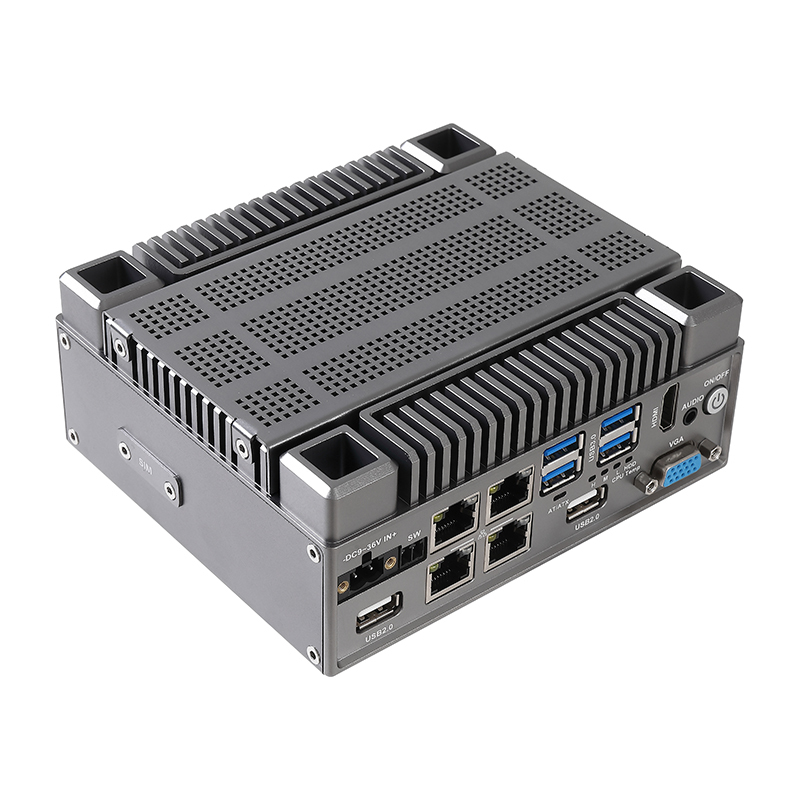

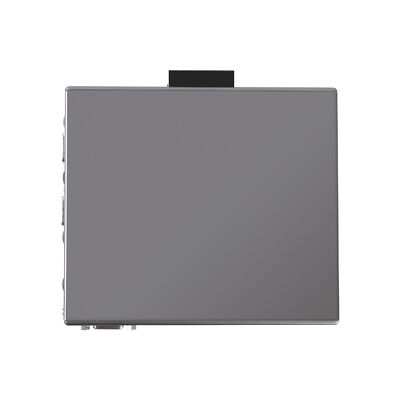

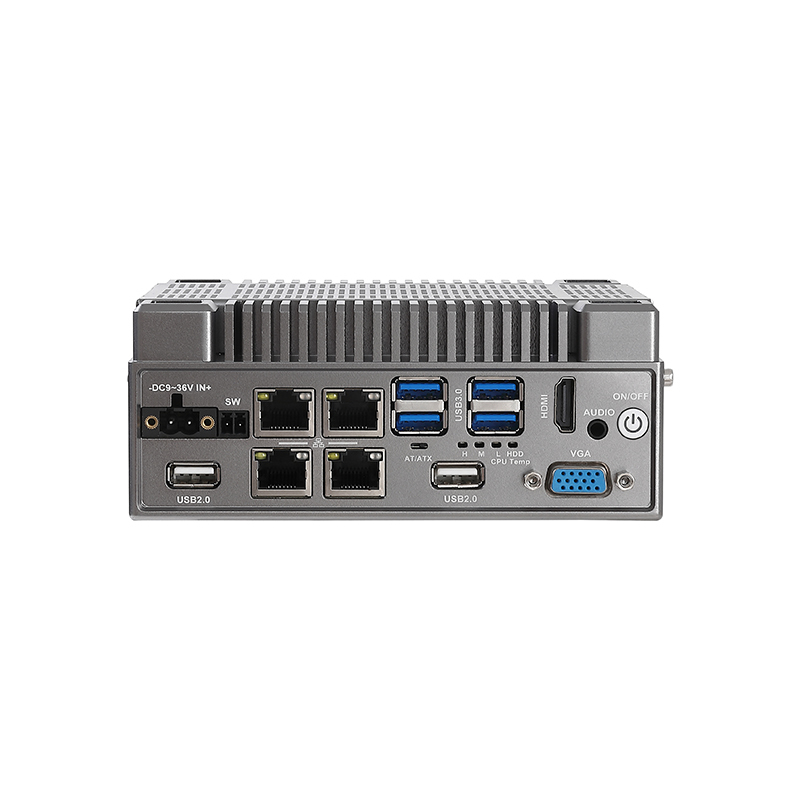

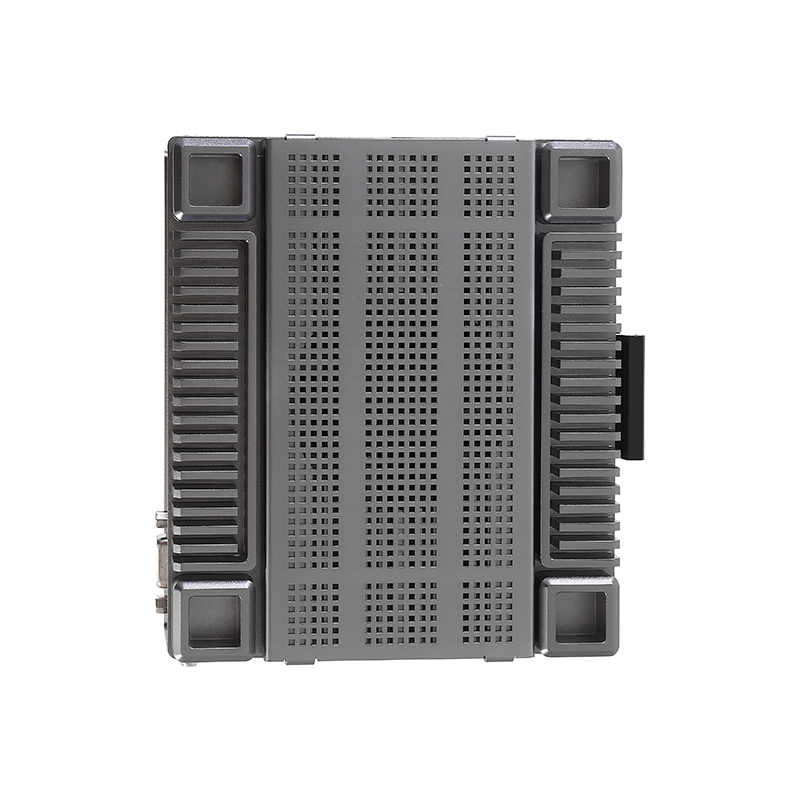

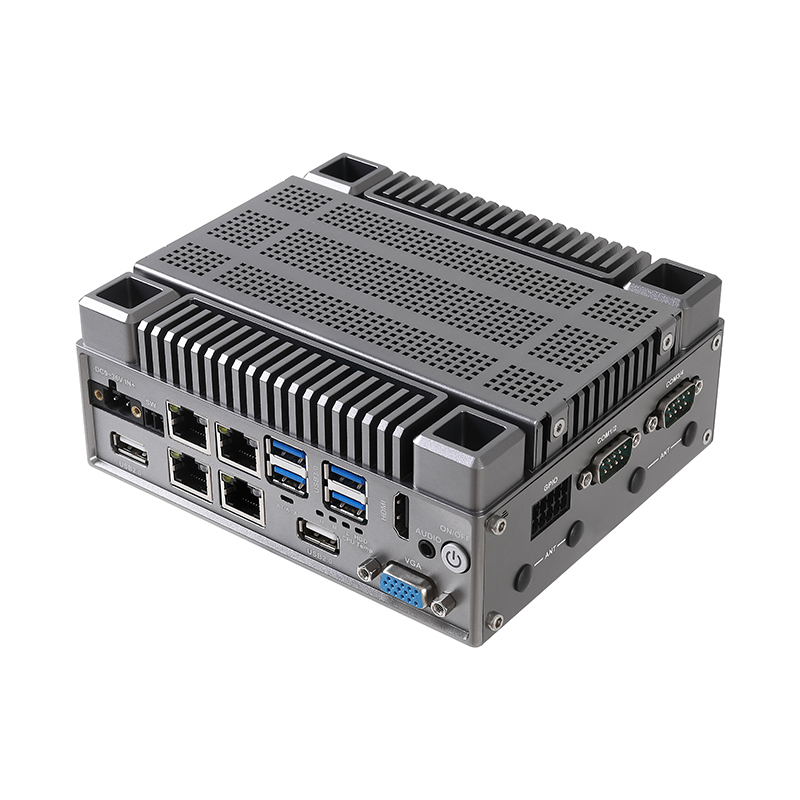

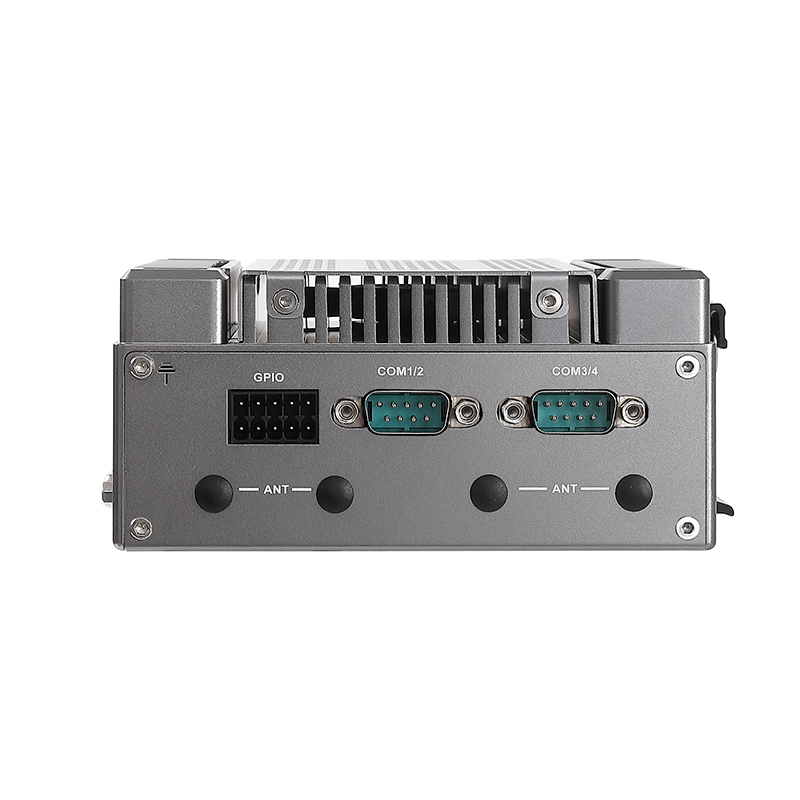

Product Images
