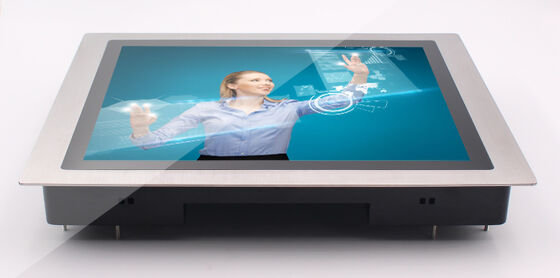

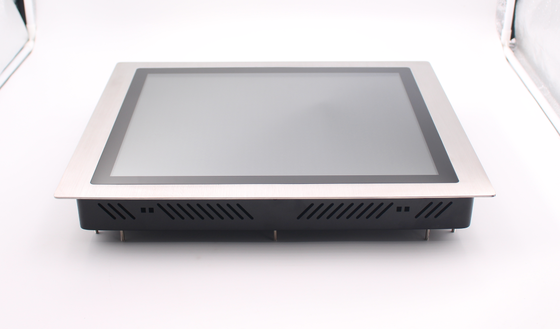

19" Stainless Steel Front Bezel Industrial Touch Screen Monitor Industrial Grade Display for kiosk, Automation and Control Systems
Product Details
| Native Resolution/Colors | 1280*1024 | Operating Temperature | 0~50°C |
|---|---|---|---|
| Input Signals | VGA,DVI,HDMI | Power Source | External Power Supply DC12V Input |
| Touch Screen | 10 Points Pcap Touch,resistive Touch | Casing | Steel/aluminum |
| Mounting | VESA,panel Mount,embedded | Touch Interface | USB2.0, USB3.0 |
| Highlight | 19 inch industrial touch screen monitor,stainless steel bezel industrial display,kiosk automation control system monitor |
||
Product Description
19" Stainless Steel Front Bezel Industrial Touch Screen Monitor Industrial Grade Display for kiosk, Automation and Control Systems
BENEFITES
• Front panel compliant with IP65 protection rating, offering stability and durability
• Aluminum frame and stainless steel bezel with a true-flat front surface, easy to clean with zero bezel design
• 10-point simultaneous PCT/PCAP multi-touch sensor
• Certified: CE, FCC, and RoHS compliant
Specifications:
2. 2 LCD Specification
| Active Area(mm) | 376.32(H) x301.06(V) |
| Resolution | 1280×1024 |
| Pixel Pitch(mm) | 0.294×0.294 |
| Viewing angle (L/R/T/B) | 85°/85°/80°/80° |
| Contrast | 1000:1 |
| Luminance(cd/㎡) | 250 (500~1500 optional) |
| Response Time | 3.6s/1.4s |
| Support Color | 16.7M |
| Screen Scanning | 60Hz |
| Backlight MTBF(hr.) | 50000h |
2.3 Touch Screen Specification
2.3.1 Projected Capacitive Touch Screen
| Type | Projected Capacitive Touch Screen |
| Resolution | 4096×4096 |
| Light Transmission | 85%±5% |
| Touch Life Cycle | 50 millions times |
| Touch Response time | 5ms |
| Touch System Interface | USB A type |
| Hardness | 7H, Anti-scratch, Anti-Vandalism |
| Operating System Support |
Plug and Play for Win 7/8/10/11, Linux Kernel 3.18.12 or above, Android Drivers for Win CE/XP |
2.3.2 Five Wires Resistive Touch Screen
| Type | 5 Wires Resistive Touch Screen |
| Surface Hardness | 3H |
| Surface Treatment | Anti-Glare |
| Light Transmission | ≥78% |
| Finger Touch Life | 35 million times |
| Touch Response time | ≤15ms |
| Touch System Interface | USB A type (B type optional) |
| Operating System Support | Drivers for Win CE/XP/7/8/10/11,Linux, Mac, Android |
2.4 External AC Power Adapter
| Output | 12V 4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
